The ball mill is a widely used grinding equipment that pulverizes materials through the impact and friction of grinding media, driven by the rotation of the cylinder. The equipment is equipped with wear-resistant liners and comes in a wide range of models. Depending on the material characteristics and the discharge method, you can choose from dry grate ball mills, wet grate ball mills, or wet overflow ball mills.

The ball mill boasts a wide range of applications, capable of handling coarse to ultra-fine grinding for solid materials of various hardness levels. It serves as the core grinding equipment in the mineral processing, cement, ceramics, and glass industries, while also playing a vital role in sectors such as chemicals, electric power, refractories, fertilizers, and metallurgy.

ADVANTAGES

1.Strong Adaptability & Wide Application: Capable of both dry and wet grinding to meet diverse process requirements. It can handle materials ranging from soft to extremely hard, and is suitable for both coarse and ultra-fine grinding to achieve various fineness levels. Both batch and continuous operations are supported.

2.High Reduction Ratio & Adjustable Fineness: The ball mill features an exceptionally high reduction ratio (the ratio of feed to product size), enabling it to grind lump materials into fine powder in a single pass. The final product's fineness can be easily and flexibly controlled by adjusting the size, shape, and proportion of the grinding media, as well as the grinding time.

3.Reliable Operation & Easy Maintenance: With a relatively simple structure and robust key components, it ensures long-term continuous operation and stable production. Daily maintenance and operation are straightforward, and the system is easy to automate, making it ideal for large-scale industrial production.

4.Excellent Sealing & Inert Environment Grinding: The entire grinding system can be designed as a fully enclosed unit, which is crucial for preventing dust pollution and protecting the environment.

5.Stable Product Quality & Uniform Fineness: Through the combined effects of impact and grinding, the final product achieves a relatively uniform particle size distribution and excellent consistency.

PRODUCT STRUCTURE

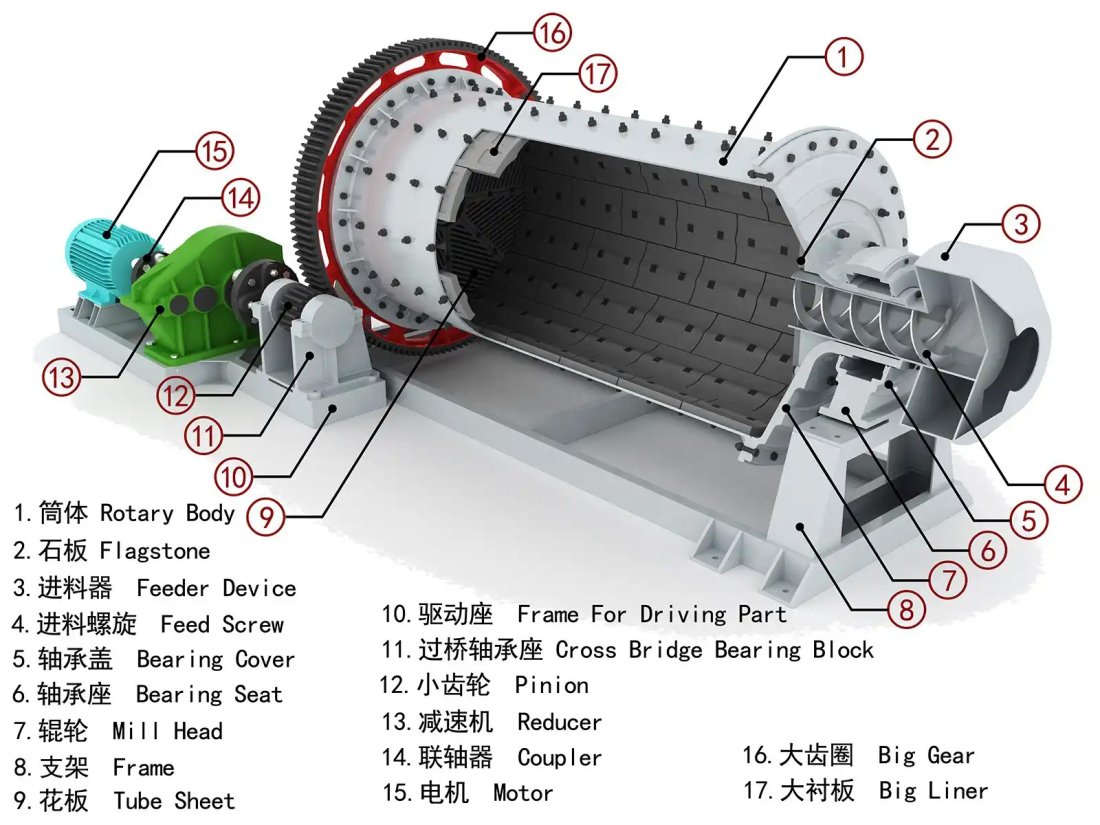

Ball Mill 7

The working principle of a ball mill is based on centrifugal force and friction. When the cylinder is driven to rotate by the transmission system, the grinding media and materials are lifted to a certain height due to friction. Once the lifting angle exceeds their natural angle of repose, the grinding media cascade or cataract downwards like a waterfall. During the falling process, the media exert a strong impact force that shatters the materials. Simultaneously, as the cylinder rotates, the tumbling and sliding media generate grinding and friction against the materials (and between the materials themselves), further reducing the particle size. Finally, the materials are discharged through the discharge device. Products that meet the required particle size are collected, while oversized coarse particles remain inside the mill for further grinding.

TECHNICAL PARAMETERS

Energy Saving Ball Mill Technical Parameter Table
Model

Drum Speed

(r/min)

Ball Capacity

(t)

Feed Size

(mm)

Discharge Size

(mm)

Output

(t/h)

Motor Power

(kw)

Total Weight

(t)

Φ900×180036-381.5<200.075-0.890.65-218.55.85
Φ900×3000362.7<200.075-0.891.1-3.5306.98
Φ1200×2400363<250.075-0.61.5-4.83013.6
Φ1200×3000363.5<250.074-0.41.6-53714.3
Φ1200×450032.45<250.074-0.41.6-5.85515.6
Φ1500×300029.77.5<250.074-0.42-57519.5
Φ1500×45002711<250.074-0.43-611022
Φ1500×57002812<250.074-0.43.5-613025.8
Φ1830×300025.411<250.074-0.44-1013034.5
Φ1830×450025.415<250.074-0.44.5-1215538
Φ1830×640024.121<250.074-0.46.5-1521043
Φ1830×700024.123<250.074-0.47.5-1724543.8
Φ2100×300023.715<250.074-0.46.5-3618045
Φ2100×450023.724<250.074-0.48-4324556
Φ2100×700023.730<250.074-0.412-4832059.5
Φ2200×450021.427<250.074-0.49-4528054.5
Φ2200×650021.735<250.074-0.414-2638061
Φ2200×700021.735<250.074-0.415-2838062.5
Φ2200×750021.745<250.074-0.415-3048064.8
Φ2400×30002123<250.074-0.47-5024558
Φ2400×45002130<250.074-0.48.5-6032072
Φ2700×400020.738<250.074-0.422-8040095
Φ2700×450020.743<250.074-0.426-90480102
Φ3200×45001867<250.074-0.4According to process conditions800149
Φ3600×45001790<250.074-0.4According to process conditions1250169
Φ3600×600017110<250.074-0.4According to process conditions1400198
Φ3600×850018150<250.074-0.445.8-2561800260
Φ4000×500016.9121<250.074-0.445-2081500230
Φ4000×600016.9146<250.074-0.465-2481600242
Φ4000×670016.9149<250.074-0.475-2521800249
Φ4500×640015.6172<250.074-0.484-3062000280
Φ5030×640014.4216<250.074-0.498-3862500320
Φ5030×830014.4266<250.074-0.4118-5003300403
Φ5500×850013.8338<250.074-0.4148-6154500525
Ceramic Ball Mill Technical Parameter Table
ModelFeeding capacity (t)Reference motor (kwv)Liner material
Diameter (mm)
600x7000.052.2Chinaware, silicon, rubber or metal (therelated motor power varied as per the differentliner materials and grinding materials).
800x6000.0753
900x12000.25.5
1300x15000.57.5
1500x18001.211
2800x20001.515
2600x2800537
3000x38001057.2
3200x46001575
Technical parameter of dry grid ball mill (MQG)
ModelCylinderEffective volume(m³)Ball loading (t)Main motor(kw)
Diameter (mm)Length (mm)
MQG-1557150057008.512130
MQG-1564150064009.613155
MQG-1864183064001520210
MQG-1870183070001622245
MQG-18801830800018.826280
MQG-2170210070002230320
MQG-21752100750023.533355
MQG-2265220065002235380
MQG-22702200700023.838380
MQG-22752200750025.542450
MQG-2470240070002852570
MQG-2480240080003260630
MQG-27502700500025.854630
MQG-2760270060003165710
Technical parameters of wet grate ball mill (MQS)
ModelCylinderEffective volume(m³)Ball loading (t)Main motor(kw)
Diameter (mm)Length (mm)
MQS-1530150030004.59110
MQS-1545150045006.714155
MQS-1830183030006.714155
MQS-18451830450010.520210
MQS-2130210030008.818210
MQS-2136210036001122.5245
MQS-21452100450013.828280
MQS-2230220030001020210
MQS-22452200450015.230.5320
MQS-2430240030001225280
MOS-2436240036001429320
MQS-24452400450017.837380
MQS-2470240070002858480
MQS-2736270036001838400
MQS-27402700400020.643450
MQS-27452700450023.248480
MQS-27502700500025.854560-630
MQS-2760270060003165630-710
MQS-30403000400025.754560-630
MQS-30643000640040.2841000
MOS-32303200300021.846500
MQS-32363200360026.256630
MQS-3245320045003265800
MQS-32543200540038801000
MQS-36403600400036751000
MQS-36453600450040.8881250
MQS-36503600500046961400
MQS-366036006000541171400-1600
MQS-405040005000581211500
MQS-406040006000701461800
MQS-456045006000871822300
Technical parameters of Overflow ball mill (MQY)
ModelCylinderEffective volume(m³)Ball loading (t)Main motor (kw)
Diameter (mm)Length (mm)
MQY-1530150030004.5890
MQY-1545150045006.712132
MQY-1830183030006.712130
MQY-18451830450010.519180
MQY-2130210030009.216210
MQY-2136210036001120210
MQY-21452100450013.825280
MQY-2230220030001018.5210
MQY-22452200450015.228280
MQY-2430240030001222245
MQY-2436240036001426280
MQY-24452400450017.830320
MQY-2460240060002444480
MQY-2736270036001833400
MQY-27402700400020.638400
MQY-27452700450023.243480
MQY-27502700500025.848500
MQY-2760270060003157630
MQY-30403000400025.747500
MQY-30643000640040.274800
MQY-3245320045003259630
MQY-3254320054003873800
MQY-32703200700050.6931250
MQY-36453600450040.8751000
MQY-36503600500046861250
MQY-366036006000541021250
MQY-368536008500791311800
MQY-406040006000701261500
MQY-406740006700781361600
MQY-436142706100801441850
MQY-456445006400951722000
MQY-5064503064001202162600
MQY-5083503083001522663300
MQY-5585550085001573384500
