RCDD Electromagnetic Self-unloading Iron Separator

RCDD electromagnetic self-unloading iron separator is a fully automatic iron discharging device. Built upon the RCDB series electromagnetic iron separator, it integrates an iron discharging mechanism consisting of a reduction motor, drum, discharge belt, and scraper.

Widely used in thermal power generation, cement, mining, metallurgy, waste processing (construction/industrial waste), and chemical industries. It is typically installed at the head or middle section of belt conveyors, or upstream of crushers and grinders. Its primary function is to remove impurities such as nails, bolts, and metal fragments, thereby protecting downstream equipment (e.g., preventing belt tearing or crusher jamming) and enhancing material purity. In waste processing applications, the iron removal rate can reach up to 99.2%, while the failure rate is reduced by 60%.

CHAT

MESSAGE

ADVANTAGES

1. Optimized Magnetic Circuit & Deep Penetration: Features a computer-optimized hemispherical magnetic field and a dual-pole structure, generating high magnetic field intensity. It can effectively attract iron impurities ranging from 0.1kg to 50kg.

2. Automatic Iron Discharge & Simple Structure: Integrates a reduction motor, discharge belt, and drum. The belt rotates continuously to automatically fling away collected materials, requiring no manual intervention.

3. Efficient Heat Dissipation & Stable Temperature: Equipped with corrugated cooling fins to significantly increase the heat dissipation area. This ensures a slow temperature rise during prolonged operation, guaranteeing stable performance.

4. Resin-Poured & Fully Sealed: Features a fully sealed, self-cooling structure with internal coils potted in electrical resin. It is dust-proof, rain-proof, and corrosion-resistant, making it highly adaptable to harsh environments.

5. Intelligent Control & Easy Operation: Operates via an intelligent system with power-on excitation and power-off demagnetization. It eliminates the need for manual iron removal, making maintenance highly convenient.

6. Reliable, Durable & Long Lifespan: Designed with a rational structure and a low failure rate. It ensures long-term, trouble-free operation even under harsh working conditions, with a designed service life exceeding 15 years.

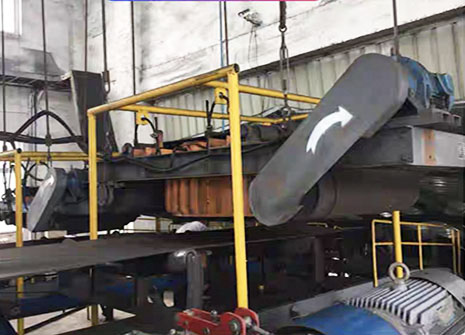

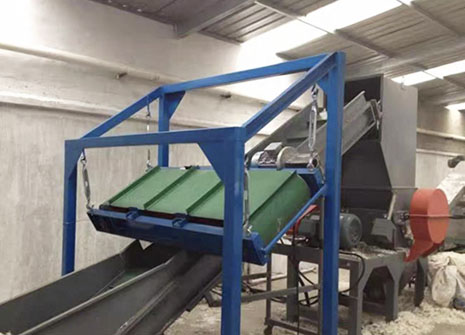

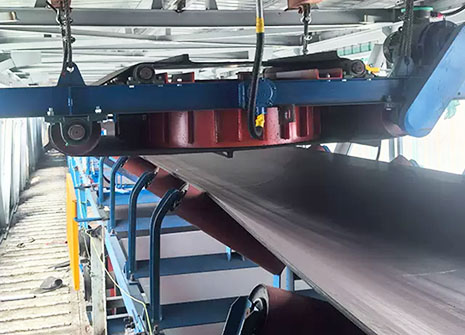

RCDD iron separator 1 RCDD iron separator 2 RCDD iron separator 3

PRODUCT STRUCTURE

Once powered on, the excitation coil generates a powerful magnetic field. As materials on the conveyor belt pass through, ferrous impurities are attracted to the surface of the discharge belt. The belt runs continuously, carrying the iron pieces out of the magnetic field area, where they then drop into a collection box by gravity. This achieves fully automatic iron discharging. The entire process requires no power interruption or manual intervention, ensuring the continuous operation of the production line.

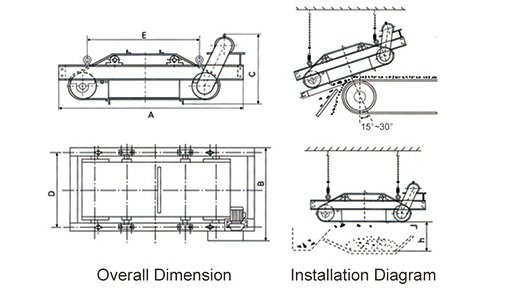

TECHNICAL PARAMETERS

Model	Belt Width (mm)	Required Hanging Height (h≤mm)	Magnetic Strength (≥mT)	Material Thickness (≤mm)	Excitation Power (≤kW)	Drive Power (kW)	Weight (kg)	Overall Dimension (mm)
Model	Belt Width (mm)	Required Hanging Height (h≤mm)	Magnetic Strength (≥mT)	Material Thickness (≤mm)	Excitation Power (≤kW)	Drive Power (kW)	Weight (kg)	A	B	C	D	E
RCDD-5	500	150	60	100	1	1.5	950	2020	1040	775	853	1000
RCDD-6	600	175	60	130	1.6	1.5	1380	2140	1100	800	910	1100
RCDD-6.5	650	200	70	150	2	2.2	1490	2275	1190	820	988	1250
RCDD-8	800	250	70	200	3.6	2.2	1770	2540	1350	865	1133	1300
RCDD-10	1000	300	70	250	5	3.0	2380	2750	1635	940	1420	1500
RCDD-12	1200	350	70	300	6.8	4.0	3170	2950	1750	950	1518	1700
RCDD-14	1400	400	70	350	9	4.0	4800	3150	2050	950	1755	1900
RCDD-16	1600	450	70	400	13	5.5	6300	3750	2240	1180	1980	2050
RCDD-18	1800	500	70	450	18	7.5	8800	3950	2450	1290	2200	2200
RCDD-20	2000	550	70	500	23.5	7.5	11200	4350	2600	1350	2250	2300
