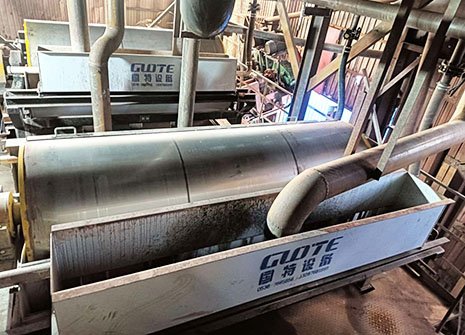

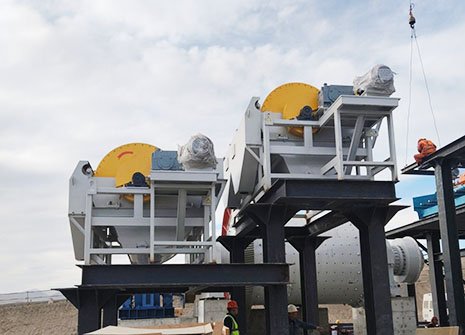

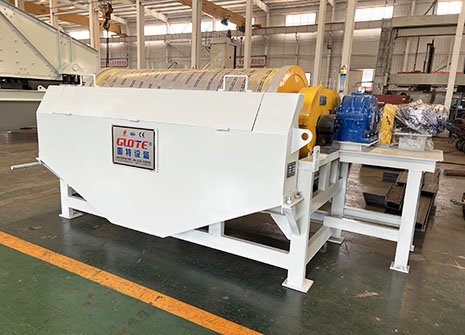

Wet Drum Permanent Magnetic Separator is a highly efficient magnetic separation featuring mature technology and extensive application. It is widely used in mineral processing plants, coal preparation plants, and other industrial facilities.This equipment is designed for wet separation of fine-grained strongly magnetic minerals in a weak magnetic field. It is also effective for removing strongly magnetic impurities from non-magnetic minerals. Furthermore, it plays a vital role in medium recovery and environmental protection applications.

This equipment is suitable for the roughing, cleaning, and scavenging of materials such as magnetite, pyrrhotite, maghemite, titanomagnetite, and roasted ore. It is also widely used for the preliminary iron removal and purification of non-metallic minerals, including silica sand, feldspar, and kaolin.

CHAT

MESSAGE

ADVANTAGES

1.Superior Magnetic System: Features a rational magnetic circuit design with great magnetic penetration depth. The magnetic field intensity in each separation zone is specifically tailored to its function. Depending on the processing plant's workflow and ore properties, users can select different field strengths, reaching up to 1.2 Tesla.

2.Long-lasting Performance: The magnetic blocks are crafted from high-quality rare earth magnetic materials, ensuring they do not lose magnetism over time. We guarantee that demagnetization will be ≤3% after 10 years of normal use, a standard that exceeds industry norms.

3.Dual Fixation Mechanism: Magnetic blocks are secured to the magnetic yoke using a dual-protection method combining bolts and adhesive. Additionally, the magnetic system surface is covered with a stainless steel band, guaranteeing that the magnetic blocks will never detach.

4.Stable Transmission: Adopts a through-shaft chain and gear transmission structure. This design ensures reasonable stress distribution on transmission components, resulting in smooth operation and an extended service life.

5.Flexible Tank Design: Three tank configurations—co-current, counter-current, and semi-counter-current—are available to suit different workflows and ore properties. The tank utilizes hydrodynamic design principles with targeted optimization for each separation zone, ensuring superior separation efficiency.

PRODUCT STRUCTURE

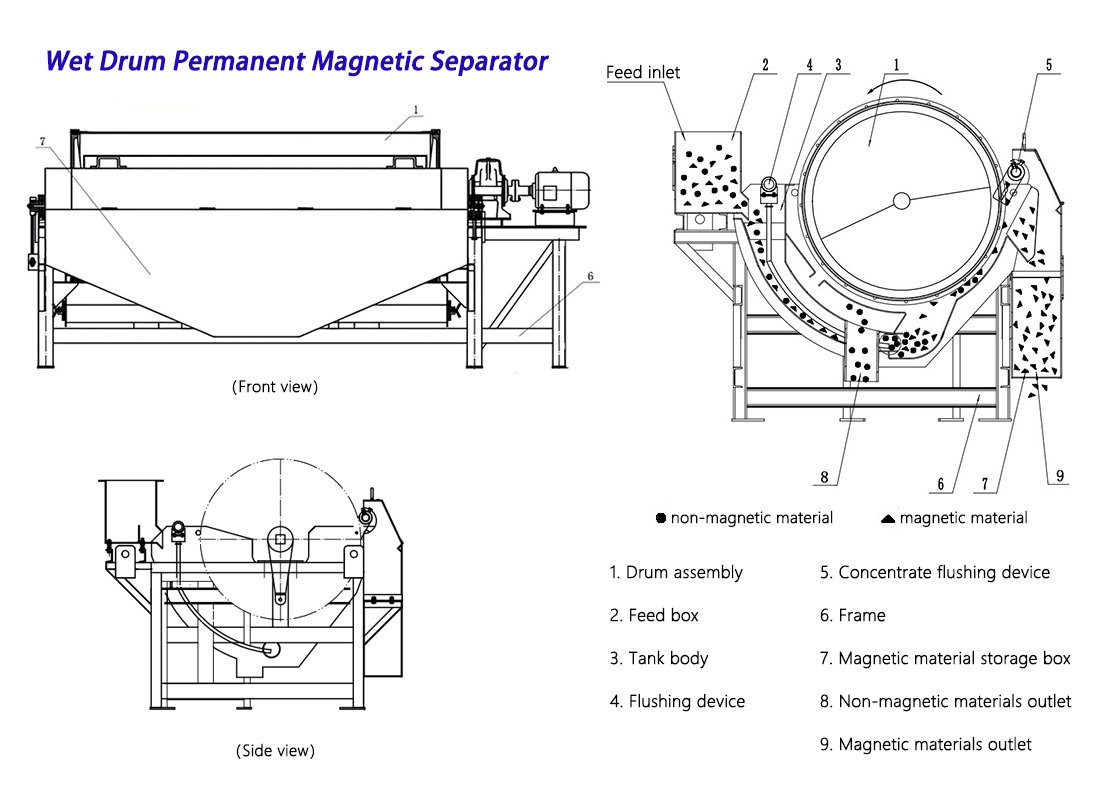

The mineral slurry (a mixture of ore particles and water) is first fed into the separation tank. Inside the tank, a slowly rotating drum—containing a fixed magnetic system—adsorbs the magnetic mineral particles onto its surface. These particles are then lifted out of the slurry level as the drum rotates. Meanwhile, non-magnetic (or weakly magnetic) particles are unaffected by the magnetic force and flow directly through the bottom or tail end of the tank into the non-magnetic discharge hopper.When the magnetic particles adsorbed on the drum surface rotate out of the magnetic field zone (typically reaching the top of the drum or the discharge area), they are released from the drum by gravity and the scouring action of flushing water. They then fall into the magnetic concentrate hopper, thereby achieving the complete separation of magnetic and non-magnetic materials.

TECHNICAL PARAMETERS

Model	Drum Size (mm)	Magnetic Induction Intensity on Drum Surface (MT)			Processing Capacity			Motor Power(kW)	Drum Rotation Speed (r/min)	Machine Weight (kg)
Model	Drum Size (mm)	Average Value	Scavenging Zone	Middle Magnetic Field Zone	Quartz(t/h)	Metal Materials(t/h)	m³/h	Motor Power(kW)	Drum Rotation Speed (r/min)	Machine Weight (kg)
CTB(N/S)-712	750*1200	160	200	200-300	5-10	10-20	≤60	3	35	1500
CTB(N/S)-718	750*1800	160	200	300-500	5-15	20-45	≤72	3	35	2100
CTB(N/S)-918	900*1800	170	200	300-600	12-18	25-40	≤90	5.5	28	2900
CTB(N/S)-924	900*2400	170	200	300-600	18-25	40-50	≤90	5.5	28	3600
CTB(N/S)-1018	1050*1800	180	220	300-700	20-35	45-60	≤120	7.5	22	4000
CTB(N/S)-1021	1050*2100	180	220	300-700	22-44	50-70	≤140	7.5	22	4500
CTB(N/S)-1024	1050*2400	180	220	300-700	26-60	60-80	≤170	7.5	22	5000
CTB(N/S)-1030	1050*3000	180	220	300-700	40-70	80-120	≤200	11	22	6300
CTB(N/S)-1218	1200*1800	180	220	300-800	30-40	60-75	≤150	11	19	4900
CTB(N/S)-1224	1200*2400	180	220	300-800	40-55	80-110	≤200	11	19	5900
CTB(N/S)-1230	1200*3000	180	220	300-800	50-80	100-140	≤270	11	19	7200
CTB(N/S)-1245	1200*4500	180	220	300-800	80-110	150-200	≤660	18.5	17	9500
CTB(N/S)-1530	1500*3000	180	220	300-800	55-100	100-180	≤320	18.5	14	9900
CTB(N/S)-1540	1500*4000	180	220	300-800	60-120	115-220	≤400	22	14	11000
CTB(N/S)-1545	1500*4500	180	220	300-800	100-130	180-240	≤650	22	14	12500
CTB(N/S)-1840	1800*4000	180	220	300-800	110-140	200-260	≤650	30	11	20000
CTB(N/S)-1850	1800*5000	180	220	300-800	150-170	280-320	≤800	37	11	23000
CTB(N/S)-2060	2000*6000	180	220	300-800	180-250	350-500	≤1500	45	9	27000
