GJT Metal Detector

GJT Metal Detector

GJT Metal Detector is a next-generation unit specifically designed for detecting metals in belt conveyor systems. It features advanced digital detection technology, incorporating digital phase-shift detection as well as multi-frequency and multi-channel techniques. The sensor utilizes a split-frame window design with one detachable end, allowing for easy installation without the need to cut the conveyor belt.

This detector is primarily used in belt conveyor systems for the real-time detection of harmful metals within conveyed materials. It is well-suited for industrial sectors that require metal inspection for bulk materials, such as mining, cement production, coal processing, and port operations.

CHAT

MESSAGE

ADVANTAGES

1.High Sensitivity & Wide Detection Range: Capable of detecting various metals, including iron, stainless steel, aluminum, copper, and manganese steel.

2.Stable & Anti-interference: Utilizes digital detection technology with multi-level anti-interference, effectively preventing false alarms.

3.Easy Installation: Features a split-frame window design, allowing for simple installation without the need to cut the conveyor belt.

4.Strong Material Adaptability: Effectively suppresses the "product effect" caused by magnetic minerals, making it highly suitable for industries like coal, mining, and cement.

5.Intelligent Maintenance: Allows for digital sensitivity setting and includes a self-check function, making maintenance convenient and hassle-free.

6.Comprehensive Linkage Control: Equipped with audio-visual alarms and optional adjustable delay devices, supporting both automatic removal and manual extraction.

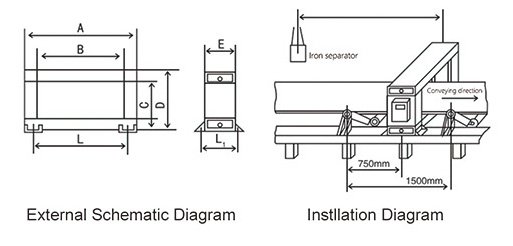

PRODUCT STRUCTURE

When harmful metals in the material pass through the sensor, the metal detector instantly triggers an alarm and sends a control signal. After being processed by electronic circuitry, the signal activates actuators such as electromagnets and motor switches. This automatically ejects the harmful metal or allows for manual removal.

TECHNICAL PARAMETERS

Model	Applicable Belt Width (mm)	Sensitivity (≥mm)	Applicable Belt Speed (m/s)	Overall Dimension (mm)
Model	Applicable Belt Width (mm)	Sensitivity (≥mm)	Applicable Belt Speed (m/s)	A	B	C	D	E	L
GJT-F-5	500	15	0.8~3.5	850	690	300	460	280	770
GJT-F-6	650	20	0.8~3.5	1000	840	300	460	280	920
GJT-F-8	800	25	0.8~3.5	1300	1040	320	480	280	1220
GJT-F-10	1000	30	0.8~3.5	1400	1240	350	510	280	1320
GJT-F-12	1200	35	0.8~3.5	1600	1440	400	560	280	1500
GJT-F-14	1400	40	0.8~3.5	1840	1680	450	630	280	1740
GJT-F-16	1600	45	0.8~3.5	2040	1880	470	650	280	1940
GJT-F-18	1800	50	0.8~3.5	2300	2140	470	650	280	2180
GJT-F-20	2000	55	0.8~3.5	2500	2340	470	650	280	2380
