RCDB Suspension Electromagnetic Iron Separator

RCDB suspension electromagnetic iron separator is a piece of equipment that utilizes electromagnetic coils to generate a powerful magnetic field. It is specifically designed to extract ferromagnetic impurities mixed within non-magnetic materials. The unit features a fully sealed, self-cooling structure, offering dust-proof, rain-proof, and corrosion-resistant properties, making it capable of operating effectively in harsh industrial environments.

Widely used in the processing of dry, bulk materials across industries such as electric power, coal, cement, mining, metallurgy, chemical, glass, building materials, and ceramics. It can be installed on belt conveyors, vibrating feeders, or discharge chutes to remove magnetic substances, thereby enhancing material purity and recovering iron impurities.

CHAT

MESSAGE

ADVANTAGES

1. Superior Magnetic Performance: Features an optimized magnetic circuit design with deep magnetic penetration and powerful suction (capable of lifting 35kg iron objects). The iron removal rate is ≥95%.

2. Stable & Durable: Built with a fully sealed structure and resin-poured coils. It is waterproof, dustproof, and offers high insulation, ensuring a service life of over 15 years.

3. Energy-Saving & Temperature Control: By increasing the number of coil turns and reducing current density, heat generation is significantly minimized. This effectively prevents the magnetic field from weakening due to temperature rise.

4. Easy Maintenance: Utilizes natural cooling without the need for additional devices. The manual iron discharge design lowers the failure rate, and it supports PLC remote start/stop control.

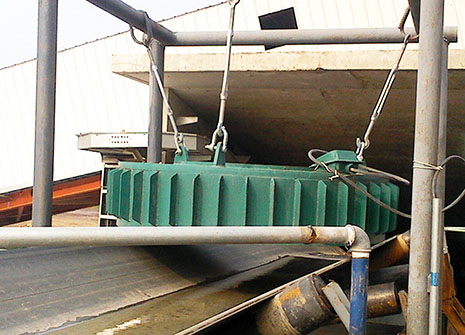

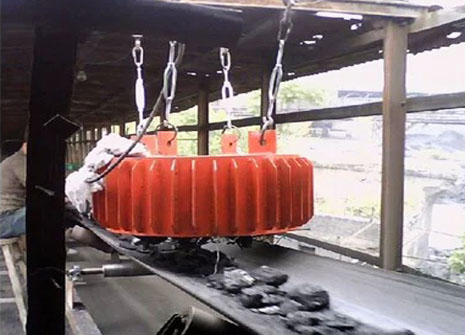

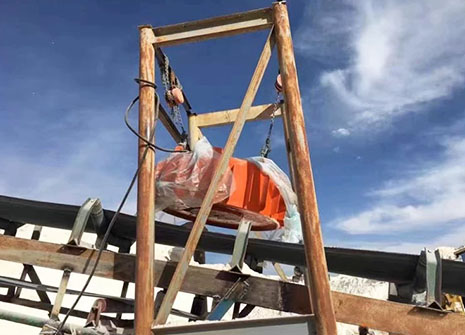

RCDB iron separator 1 RCDB iron separator 3 RCDB iron separator 2

PRODUCT STRUCTURE

When the DC power is connected, the excitation coil generates a high-intensity magnetic field. As materials pass beneath the iron remover, ferromagnetic substances mixed within (such as scrap iron, bolts, etc.) are attracted to the surface of the magnetic poles by the magnetic force. After the machine is shut down, the power is cut off to demagnetize the unit, and the collected iron impurities are then removed manually.

TECHNICAL PARAMETERS

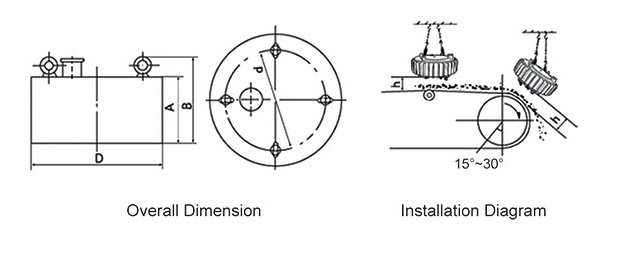

Model	Belt Width (mm)	Hanging Height (H≤mm)	Magnetic Strength ≥mT	Material Thickness ≤mm	Driving Power (≤kW)	Weight (kg)	Overall Dimension (mm)
Model	Belt Width (mm)	Hanging Height (H≤mm)	Magnetic Strength ≥mT	Material Thickness ≤mm	Driving Power (≤kW)	Weight (kg)	A	B	D	d
RCDB-3	300	75	50	50	0.4	185	210	250	400	280
RCDB-4	400	100	50	70	0.6	300	240	280	500	400
RCDB-5	500	150	60	90	1.0	430	280	325	610	450
RCDB-6	600	175	70	120	1.6	580	280	325	710	500
RCDB-6.5	650	200	70	150	2.0	680	280	325	816	640
RCDB-8	800	250	70	200	3.6	950	310	355	960	780
RCDB-10	1000	300	70	250	5.0	1520	310	360	1200	920
RCDB-12	1200	350	70	300	6.8	2250	310	365	1400	1000
RCDB-14	1400	400	70	350	9.0	2950	405	485	1650	1400
RCDB-16	1600	450	70	400	13	4800	460	540	1900	1650
RCDB-18	1800	500	70	450	18	6900	530	610	2150	1800
