RCYB Suspension Permanent Magnet Iron Separator

RCYB Suspension Permanent Magnet Iron Separator features a composite magnetic system made of NdFeB permanent magnet materials. It efficiently removes ferromagnetic impurities ranging from 0.1 to 35 kg without requiring any electrical power. The equipment consists of a wear-resistant stainless steel casing and an adjustable suspension bracket. It is maintenance-free, boasts a magnetic system lifespan of over 10 years, and operates effectively in temperatures ranging from -25°C to +50°C. It can be flexibly installed on conveyor equipment such as belt conveyors.

Widely used in industries such as mining, coal, cement, and chemical engineering. It is ideal for protecting equipment before crushers, eliminating combustion hazards on coal conveyor belts, and improving the quality of cement grinding by processing raw materials before they enter the mill.

CHAT

MESSAGE

ADVANTAGES

1.Energy-saving & Eco-friendly: No excitation coil required, resulting in zero energy consumption and reduced carbon emissions.

2.High Reliability: Eliminates the risk of electrical failures. The magnetic field remains constant with no "hot/cold state" variations.

3.Low Maintenance Cost: No cooling system needed. Highly resistant to harsh environments (dust-proof, corrosion-resistant) with an extremely low failure rate.

4.Powerful & Long-lasting Magnetism: NdFeB magnetic source ensures magnetic decay is ≤3% over ten years, providing stable suction force.

RCYB iron separator 1 RCYB iron separator 2 RCYB iron separator 3

PRODUCT STRUCTURE

As materials pass beneath the iron remover, ferromagnetic impurities are attracted to the magnet surface by the powerful magnetic field generated by NdFeB, while non-magnetic materials continue along the conveyor. Cleaning is performed manually; adsorbed iron impurities should be removed periodically using a non-magnetic scraper or by hand (while wearing gloves). This model is suitable for scenarios with low iron content.

TECHNICAL PARAMETERS

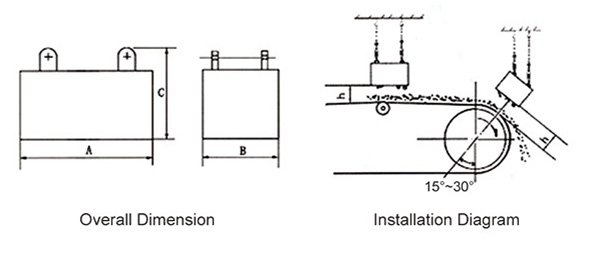

Model	Conveyor Belt Width (mm)	Max Hanging Height (mm)	Max Belt Speed (m/s)	Max Material Thickness (mm)	Weight (kg)	Overall Dimension(mm)
Model	Conveyor Belt Width (mm)	Max Hanging Height (mm)	Max Belt Speed (m/s)	Max Material Thickness (mm)	Weight (kg)	A	B	C
RCYB-4	400	125	4.5	60	115	400	300	230
RCYB-4-1	400	75	4.5	30	65	400	250	140
RCYB-5	500	150	4.5	90	206	500	350	260
RCYB-5-1	500	100	4.5	50	96	500	260	160
RCYB-6	600	175	4.5	120	295	600	450	280
RCYB-6-1	600	130	4.5	60	158	600	350	180
RCYB-6.5	650	200	4.5	150	450	650	600	300
RCYB-8	800	250	4.5	200	680	950	950	380
RCYB-8-1	800	200	4.5	150	550	800	600	300
RCYB-10	1000	300	4.5	250	1180	1100	1000	380
RCYB-12	1200	350	4.5	300	1670	1300	1340	420
RCYB-14	1400	400	4.5	350	2350	1500	1500	420
RCYB-16	1600	450	4.5	400	2850	1750	1750	460
