Wet Belt Magnetic Separator

Wet Belt Magnetic Separator

Wet Belt Magnetic Separator（Flat Plate Magnetic Separator）is a highly efficient, energy-saving, and user-friendly permanent magnet mineral processing equipment. Its core advantage lies in the utilization of a specially designed plate-type high-gradient permanent magnet system, which continuously captures fine-grained weakly magnetic minerals from the mineral slurry.

The magnetic system is constructed using high-quality rare earth magnets formed via extrusion molding, delivering high magnetic field intensity. Integrating theories from physical mechanics, fluid dynamics, and magnetics, this equipment is capable of separating weakly magnetic minerals based on their specific magnetic properties.

This equipment is designed for iron removal and purification of non-metallic minerals such as quartz sand, potassium sodium feldspar, nepheline, and kaolin. It is also suitable for the beneficiation of weakly magnetic metallic minerals, including hematite, limonite, manganese ore, wolframite, ilmenite, and tantalum-niobium ore. Additionally, it can be utilized for the recovery of valuable metal minerals from tailings.

CHAT

MESSAGE

ADVANTAGES

1.Superior Magnetic Performance: Utilizes high-performance NdFeB (Neodymium Iron Boron) magnetic materials and a unique magnetic circuit design. The maximum surface magnetic field strength exceeds 15,000 GS, making it comparable to high-gradient electromagnetic separators.

2.Enhanced Efficiency: Compared with other permanent magnet separators, it features a larger magnetic field sweeping area, ensuring superior iron removal results.

3.Adjustable Slope: The plate inclination is adjustable. The angle can be optimized based on specific material characteristics to achieve the best purification effect.

4.Variable Speed Control: The belt speed is adjustable via a Variable Frequency Drive (VFD). This allows for precise speed regulation according to material conditions for optimal performance.

5.Durable Construction: The conveyor belt is made from specialized wear-resistant materials, significantly extending its service life.

6.Energy Efficient: Consumes significantly less power and is more energy-saving compared to high-gradient vertical ring magnetic separators.

7.Automated Operation: Equipped with a uniform feeding device at the inlet and an automatic cleaning mechanism to discharge captured magnetic materials from the tailings.

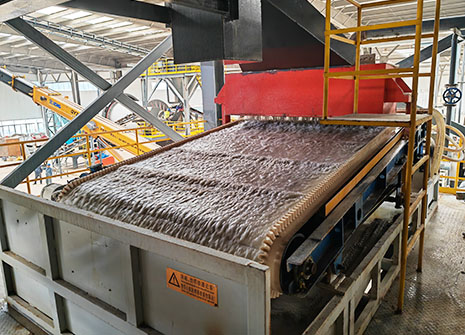

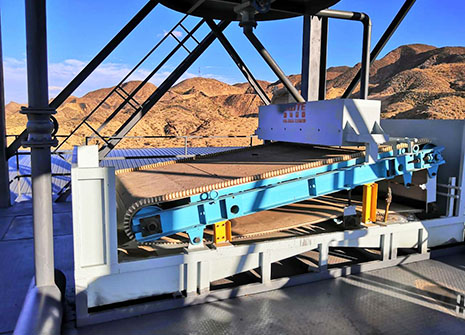

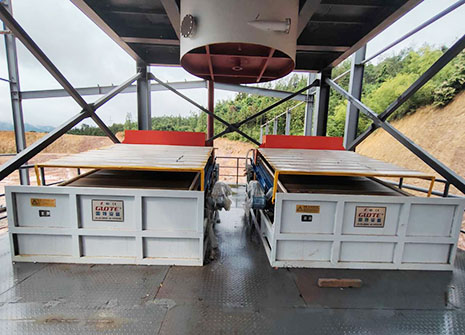

Plate Magnetic Separator 1 Plate Magnetic Separator 2 Plate Magnetic Separator 3

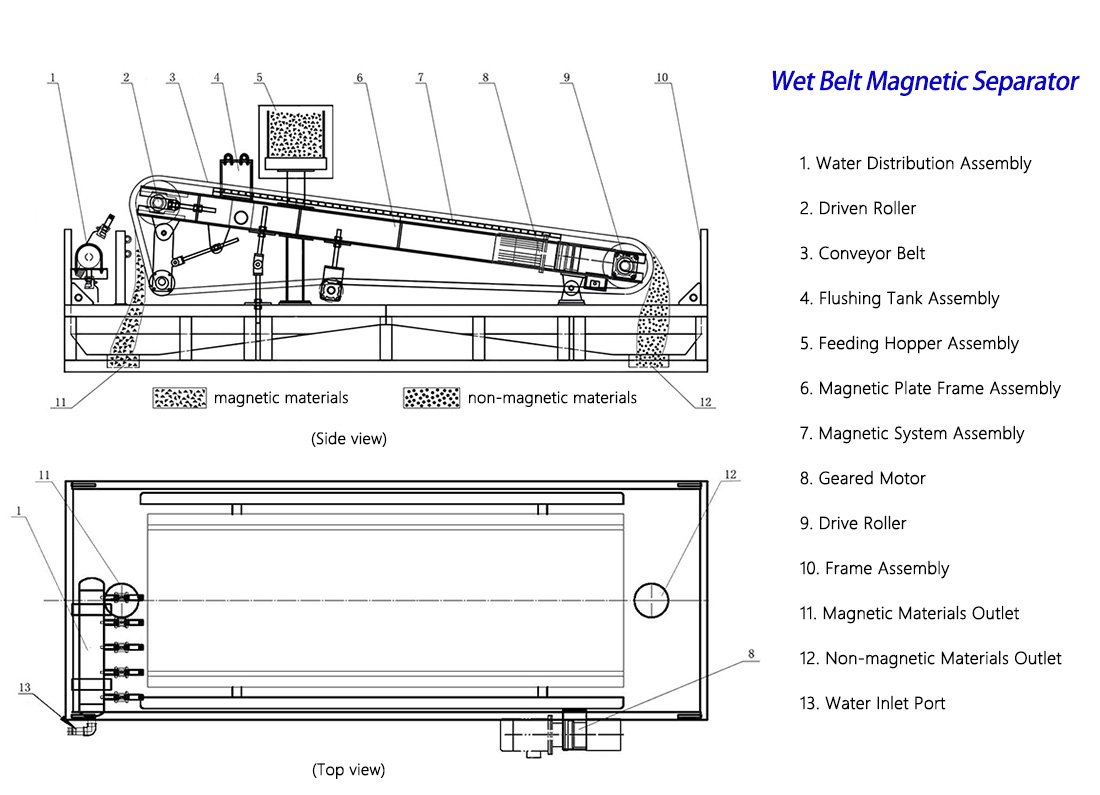

PRODUCT STRUCTURE

The mineral slurry enters the uniform feeding device of the magnetic separator through the inlet pipe. After being fully dispersed, it is evenly distributed onto the iron-discharge conveyor belt located above the magnetic plate.Driven by gravity, the slurry flows downward along the inclined surface of the magnetic plate. Under the influence of the intense magnetic field generated by the plate, magnetic particles within the slurry are firmly captured and held by the iron-discharge belt.Driven by a motor, the belt rotates upward along the incline, carrying the captured magnetic materials into the discharge zone. Here, the magnetic particles are washed off by spray water and collected in the magnetic material hopper.Meanwhile, the non-magnetic slurry continues to flow downward along the plate and is collected in the non-magnetic material hopper, thereby achieving the complete separation of magnetic and non-magnetic materials.

TECHNICAL PARAMETERS

Model	Capacity (t/h)	Magnetic Field Intensity (GS)	Pulp Concentration	Belt Speed (r/min)	Motor Power (kW)	Weight (t)	Magnetic block size (mm)
GTGB0815	8-10	15000	10%-30%	2-8	2.2	1.2	800*1500
GTGB1020	15-20	15000	10%-30%	2-8	2.2	1.6	1000*2000
GTGB1520	20-25	15000	10%-30%	2-8	2.2	3.0	1500*2000
GTGB2025	25-30	15000	10%-30%	2-8	3	3.6	2000*2500
GTGB2230	30-35	15000	10%-30%	2-8	4	4.5	2200*3000
GTGB2530	35-40	15000	10%-30%	2-8	4	5.6	2500*3000
GTGB3025	40-50	15000	10%-30%	2-8	4	6.7	3000*2500

SUCCESSFUL CASE

Anhui 2,800t/d Quartz Glass Sand Processing Plant
