Anhui 2,800TPD Quartz Glass Sand Processing Plant

The raw material of this project is natural silica sand. The feed contains 5–10% mud, 3–5% fine fractions, and abundant plant debris such as weeds. These organic impurities, clay slime and surface iron-aluminum films are the main obstacles to reaching the high standards of float glass sand.

Targeted at the complex feed conditions, Mr. Zhao Jundong, senior mineral processing engineer of Guote, led the process planning and overall design. The scheme is customized according to the material occurrence characteristics, adopting a matched equipment combination with optimal economic efficiency, balancing product quality, operation cost, water recycling and environmental compliance.

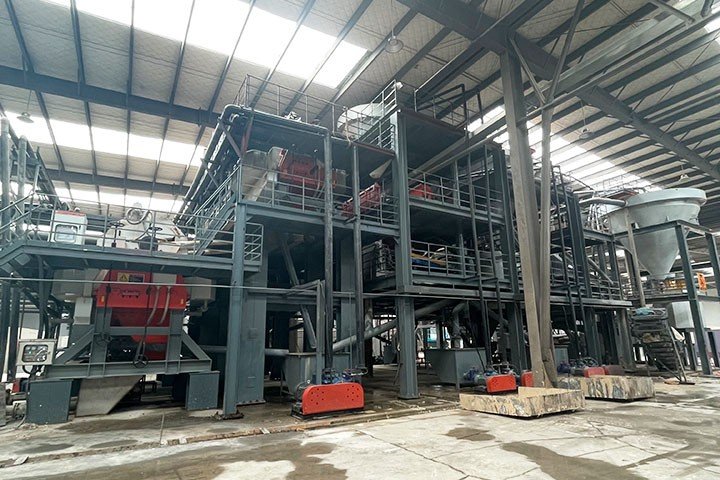

GUOTE SOLUTION

  • 1

    Raw Material Grinding and Primary Closed-circuit Screening Raw natural sand is delivered by belt conveyor, passing through buffer silo and feeder into the mill for grinding and sand shaping. Discharged material enters the post-grinding screen with 2–3 mm aperture. Undersize qualified slurry flows into the slurry tank; oversize coarse fractions are sent back by return conveyor for re-shaping, forming stable closed-circuit sand preparation.

  • 2

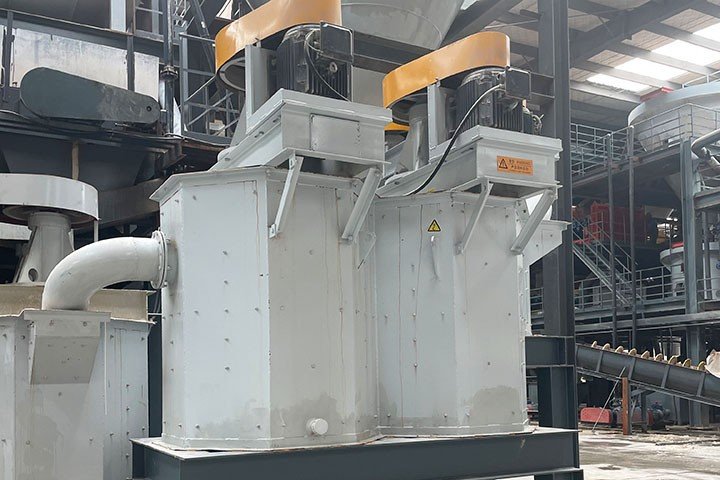

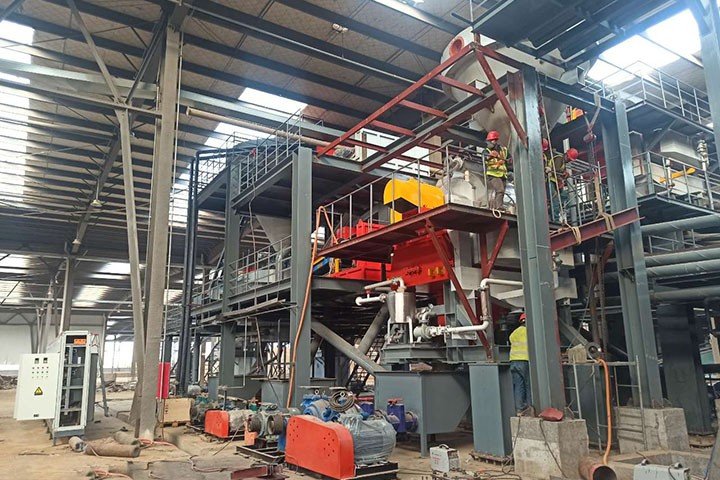

    Attrition Scrubbing and Pre-desliming Separation Material in the slurry tank is pumped into the attrition scrubber. Through controlled mechanical extrusion and shear friction, colloidal clay, iron oxide films and aluminous impurities adhered to quartz grain surfaces are effectively stripped off. The treated slurry is pumped to the desludging hopper mounted on the grading tower to realize preliminary separation of sand, slime and light impurities. This step lowers mud content and stabilizes slurry concentration for downstream sorting.

  • 3

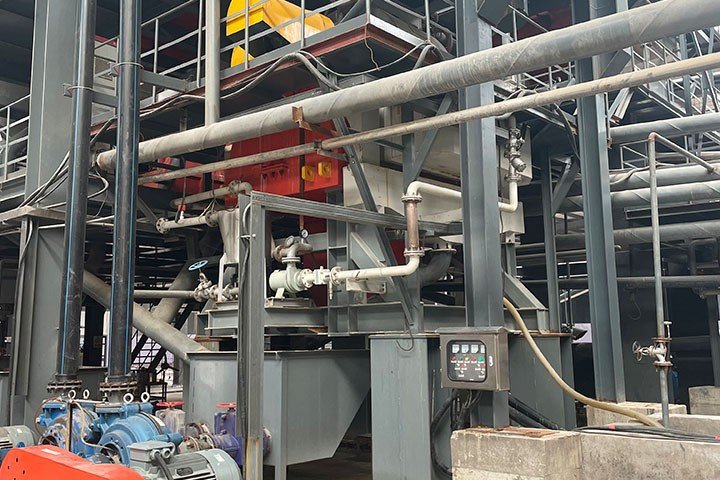

    Multi-stage Hydraulic Classification Deslimed slurry is fed into the hindered settling classifier. Fractions coarser than 26 mesh (cut point adjustable) are separated and returned to the mill for regrinding. A safety screening device is fitted on the hindered settler to improve classification precision. Fine material below 26 mesh flows into the hydraulic classifier, which further removes ultra-fine fractions finer than 140 mesh.

  • 4

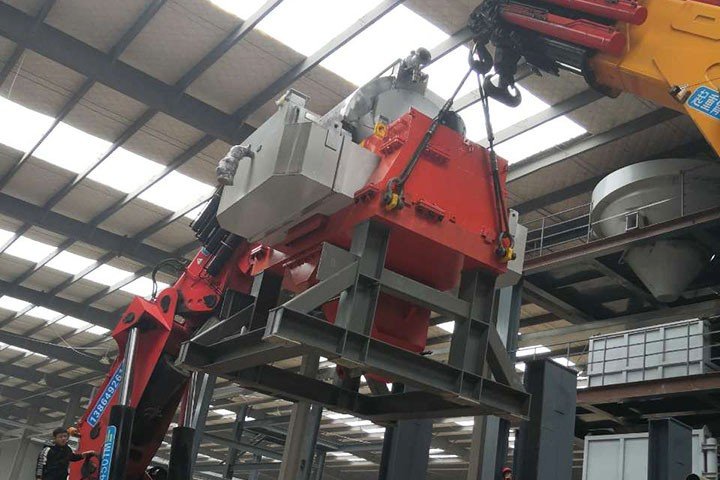

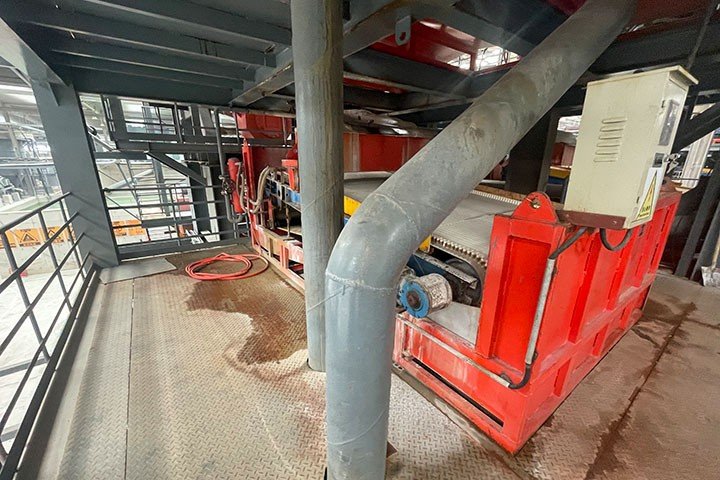

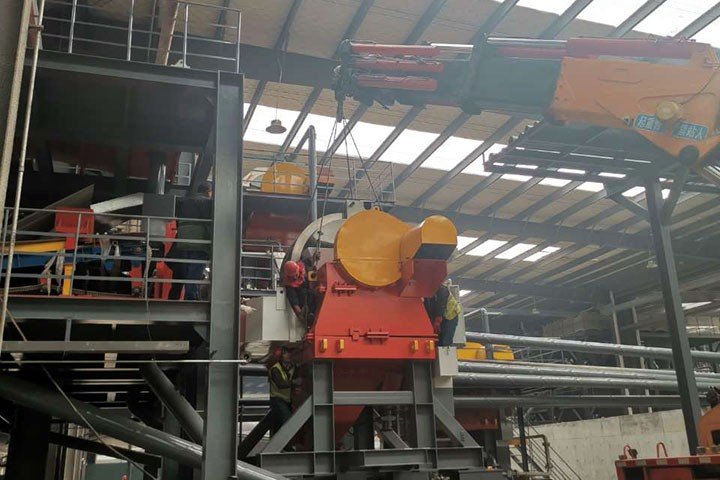

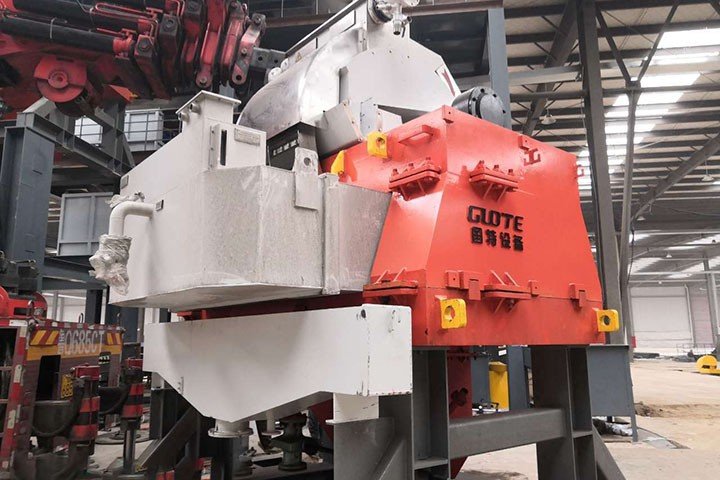

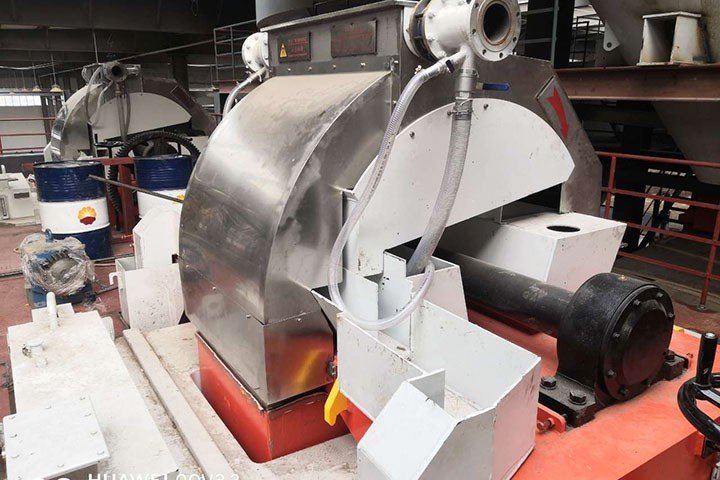

    Three-stage Deep Magnetic Iron Removal Classified qualified sand enters the magnetic separation station for staged iron removal. Firstly, medium-intensity plate magnetic separators (4000–4500 GS) remove mechanical iron impurities. Secondly, high-intensity plate magnetic separators (12000–13000 GS) eliminate residual mechanical iron and part of weakly magnetic iron-bearing minerals. Finally, two vertical ring high-gradient electromagnetic magnetic separators (1.4 T) are arranged in series for deep purification to remove fine-grained weakly magnetic iron impurities.

  • 5

    Flotation Purification and Dewatering Magnetically purified slurry is concentrated in the thickening hopper and then delivered to the flotation circuit. Selective flotation achieves the final removal of aluminum-bearing minerals and residual iron impurities, realizing high-purity silica enrichment. Flotation concentrate passes through dewatering screens to reduce surface moisture, then is conveyed by belt to the next processing section.

  • 6

    Closed Water Recycling and Sludge Treatment A high-efficiency thickener is configured for the whole wet process to realize process water recycling. After sedimentation in the thickener, clarified supernatant returns to the wet production system. Settled sludge is pumped to filter press or ceramic filter for solid-liquid separation. Dewatered sludge cakes are stored in the covered sludge yard. Fine sand separated during concentration is collected as secondary sand products.

  • 7

    Finished Product Output and Zero Liquid Discharge System The system produces three streams: high-grade refined glass sand, secondary fine sand and dewatered sludge cake. The whole production line adopts circulating water design, only requiring a small amount of supplementary water, and achieves wastewater zero discharge.

PROJECT RESULT

After a complete sequence of sand shaping, scrubbing, multi-stage classification, three-stage magnetic separation and flotation purification, the natural raw sand meets the technical specifications of float glass sand.

The whole plant runs continuously and steadily with reliable equipment performance. All beneficiation indicators and economic benefits reach design targets. The comprehensive performance of this project exceeds the client’s expectations. Guote’s professional EPC service capability has gained full recognition from the customer.
