Malaysia 600TPD Photovoltaic Sand Processing Plant

The raw material of this project is alluvial quartz sand, formed by weathering and sedimentation of quartzite. Although the raw sand has relatively high silica grade, iron oxide films and fine adherent impurities on grain surface need to be removed to satisfy strict low-iron specifications for photovoltaic glass sand.

Guote’s technical team developed a targeted beneficiation flowsheet, fully considering local ore features, water resource conditions and site layout in Malaysia.

GUOTE SOLUTION

  • 1

    Ore Pretreatment After mining and transportation, the alluvial sand is processed by crushing and pre-screening. This operation homogenizes feed particle size, removes large gravel and lumpy impurities, and provides stable feed for the subsequent wet purification circuit.

  • 2

    High-concentration Scrubbing and Hydraulic Classification This step is designed to strip iron oxide coatings and clay contaminants attached to quartz grains. Spiral or trough attrition scrubbers are adopted. Under high pulp concentration, intense blade agitation creates friction between sand particles to peel off surface impurity films. Ultra-fine slime (-200 mesh or -325 mesh) is separated by desliming and classification. A trommel screen is matched in this section to pre-remove oversize coarse fractions and partial fine slime, lowering the load for subsequent purification.

  • 3

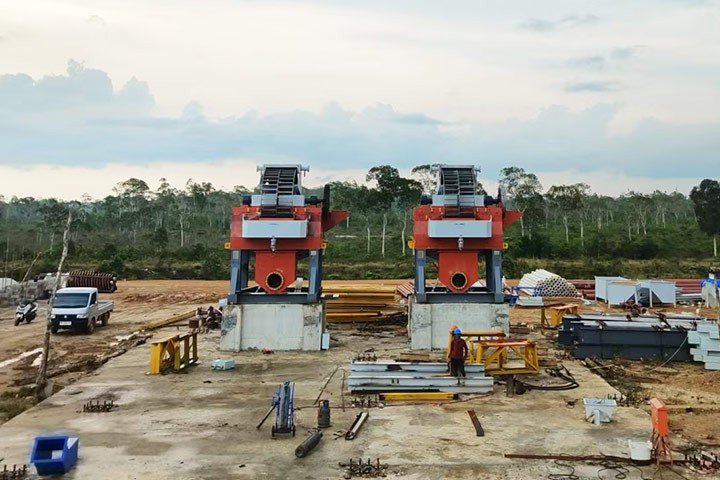

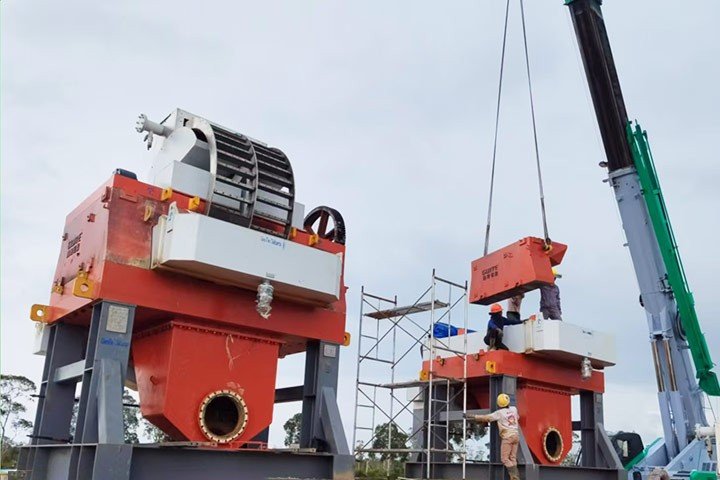

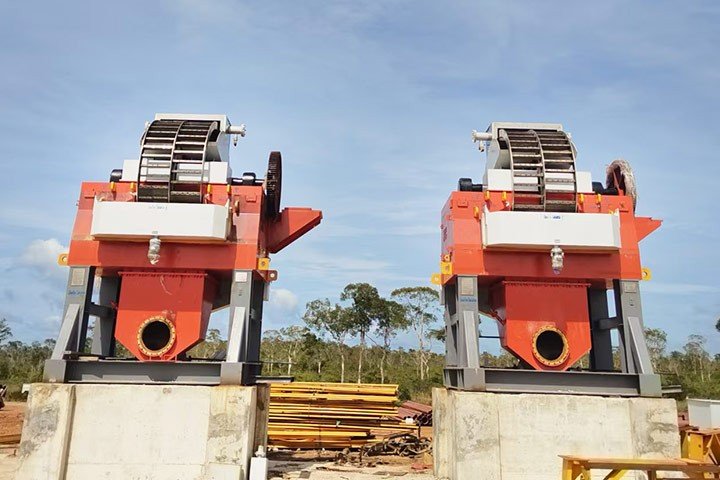

    Core Purification: High-gradient Magnetic Separation High-gradient magnetic separators serve as the key iron-reduction unit. They deliver ultra-high magnetic field strength to capture weakly magnetic iron-bearing minerals that ordinary magnetic equipment cannot separate. This physical separation is the most important and effective method to reduce Fe₂O₃ content for photovoltaic silica sand.

  • 4

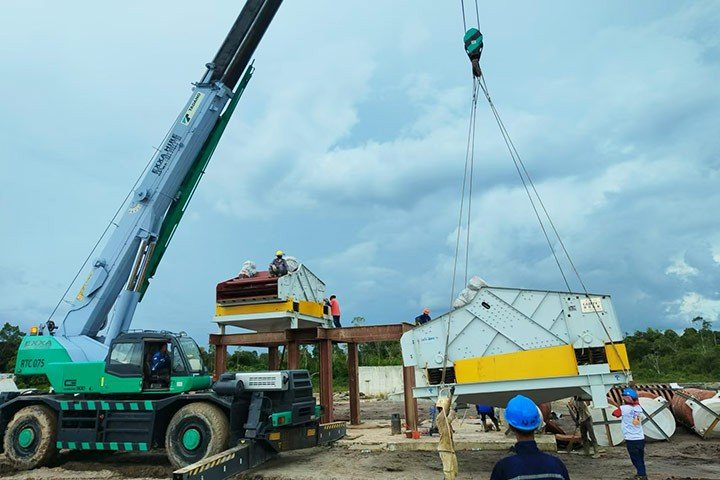

    Dewatering and Finished Stockpiling The purified quartz sand after magnetic separation is sent to dewatering screens to remove most free surface moisture. The sand after dewatering reaches the moisture requirement acceptable for photovoltaic glass manufacturers and is conveyed directly to the finished product stock shed. All process wastewater from the whole line flows into high-efficiency thickeners for settlement and clarification, and clean water is recycled for production.

PROJECT RESULT

Alluvial quartz deposits are widely distributed globally, featuring high natural silica grade, relatively low investment threshold and short payback cycle.

Guote provided full EPC services for this Malaysian project, covering process design, complete equipment supply and on-site installation guidance. The production line was smoothly commissioned and stably reaches designed capacity. The final silica sand product fully meets the quality requirements of photovoltaic glass raw material.

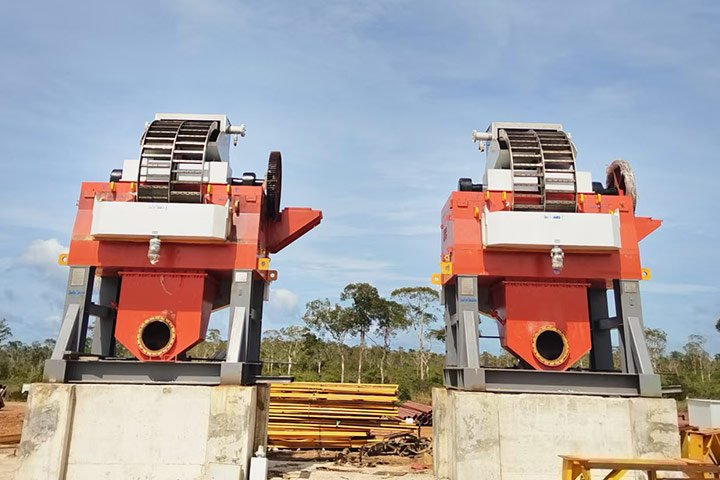

A Malaysia 600TPD Photovoltaic Sand Processing Plant
B Malaysia 600TPD Photovoltaic Sand Processing Plant
C Malaysia 600TPD Photovoltaic Sand Processing Plant
D Malaysia 600TPD Photovoltaic Sand Processing Plant
