Shandong 3,000TPD Quartz PV Glass Sand Processing Plant

Raw material for this project is imported natural silica sand featuring unstable quality, fluctuating mud content and variable iron impurities. The client faced major challenges: inconsistent feed composition made it hard to steadily produce high-purity photovoltaic-grade silica sand; conventional washing and classification processes failed to effectively remove weakly magnetic iron contaminants, and fine slime could not be stably separated, resulting in low qualified yield and unstable finished iron index.

Guote carried out raw ore characteristic analysis and beneficiation test work, developed a customized full-process purification scheme and provided the complete technical proposal together with commercial quotation. The client approved the solution and awarded the EPC contract. Guote delivered the whole line and achieved smooth commissioning & production in 2023.

GUOTE SOLUTION

  • 1

    Pre-screening & Primary Desliming Raw sand is fed by a belt feeder with weighing function into the pre-screening unit. Undersize material flows into spiral ore washer for primary washing to cut down bulk slime, mitigating the impact of high mud fluctuation on downstream purification.

  • 2

    Intensive Scrubbing Pre-washed material enters the scrubber for high-shear scrubbing, stripping clay film and iron oxide adhered to sand grain surfaces, solving the difficulty of surface-bound iron removal.

  • 3

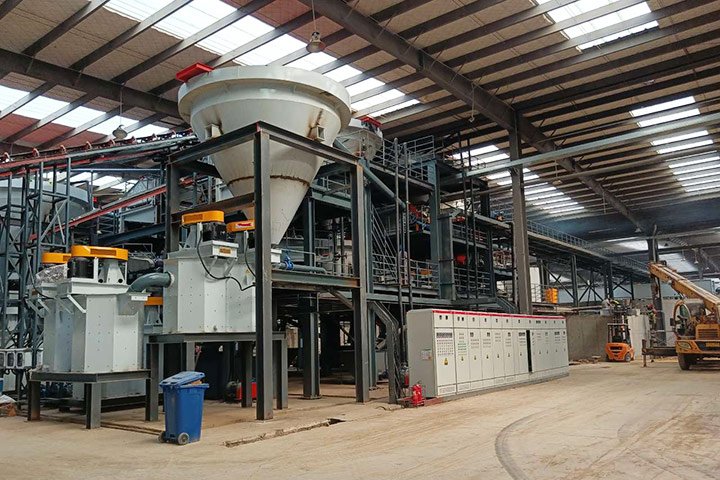

    Slurry Desliming & Density Stabilization Scrubbed slurry is pumped to the desliming hopper above the hydraulic classification tower. Fine slime is separated here to further reduce mud content and stabilize slurry concentration, laying a stable condition for subsequent particle size sorting.

  • 4

    Primary Particle Size Classification (Coarse Sand Separation) Deslimed material goes into secondary rotary screen to separate +26 mesh coarse particles. Oversize coarse sand is stockpiled as by-product, realizing staged separation of coarse fraction and avoiding oversize grains disturbing fine purification.

  • 5

    Secondary Particle Size Classification (Fine Sand Sorting) -26 mesh undersize material flows into thickening hopper and hydraulic classifier. The hydraulic classifier removes -140 mesh fine silt, locking the target particle size window for photovoltaic silica sand.

  • 6

    High-intensity Magnetic Separation for Iron Removal Size-qualified sand from classification first passes through a high-intensity plate magnetic separator (magnetic field: 10,000–11,000 GS) to remove mechanical iron and strongly magnetic impurities. Afterwards, the material enters a vertical ring high-gradient magnetic separator to further strip fine weakly magnetic iron minerals. This two-stage magnetic separation combination is the core procedure to stabilize the finished iron index.

  • 7

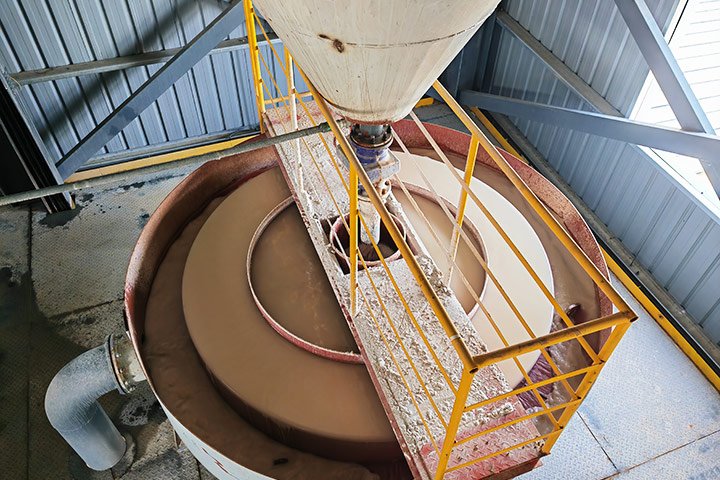

    Dehydration & Finished Product Stockpiling Iron-free sand is sent to thickener for concentration and dehydration, then conveyed to finished product shed for stacking, obtaining dry qualified photovoltaic silica sand.

PROJECT RESULT

The final silica sand product fully meets photovoltaic glass sand specifications. The qualified yield stabilizes at around 90%. After feed source stabilization, total iron content of finished sand is consistently controlled below 80 ppm.

This solution successfully resolved the client’s key pain points: unstable iron index, poor slime separation and low qualified rate under variable raw sand quality. The two-stage magnetic separation process greatly improves the removal efficiency of fine weakly magnetic iron impurities. The production line runs continuously and stably, equipment reliability and beneficiation indicators are all up to expectation. Guote’s EPC+M+O service model is highly recognized by the customer.

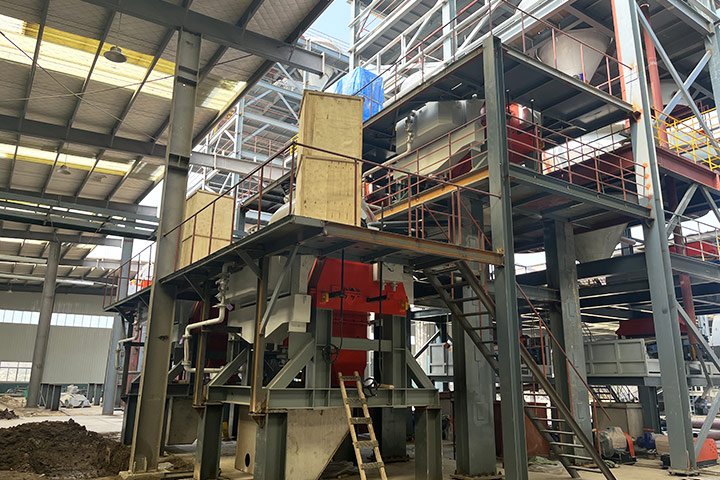

A Shandong 3000TPD Quartz PV Glass Sand Processing Plant

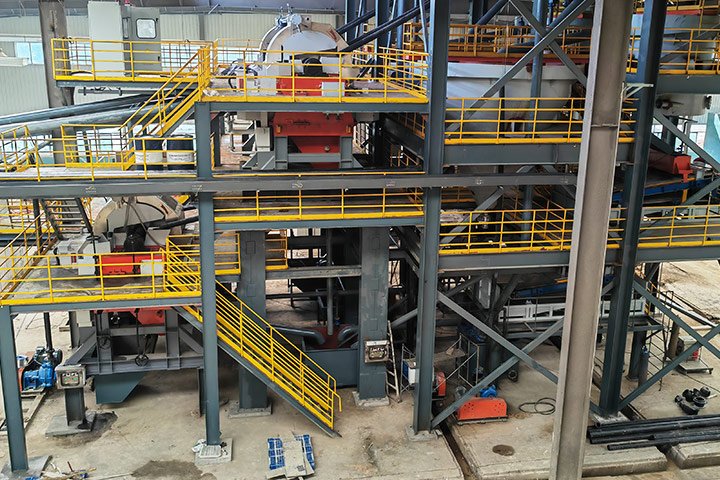

B Shandong 3000TPD Quartz PV Glass Sand Processing Plant

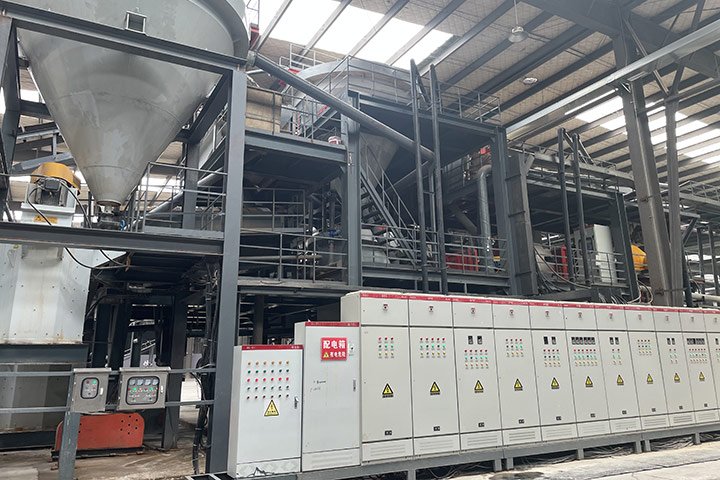

C Shandong 3000TPD Quartz PV Glass Sand Processing Plant

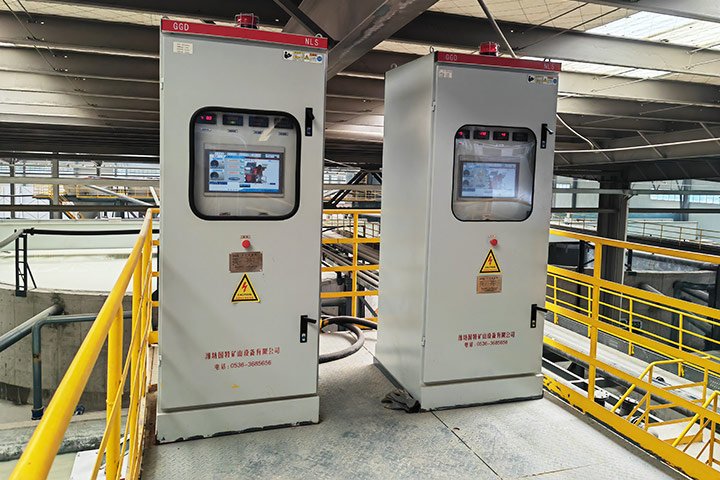

D Shandong 3000TPD Quartz PV Glass Sand Processing Plant
E Shandong 3000TPD Quartz PV Glass Sand Processing Plant

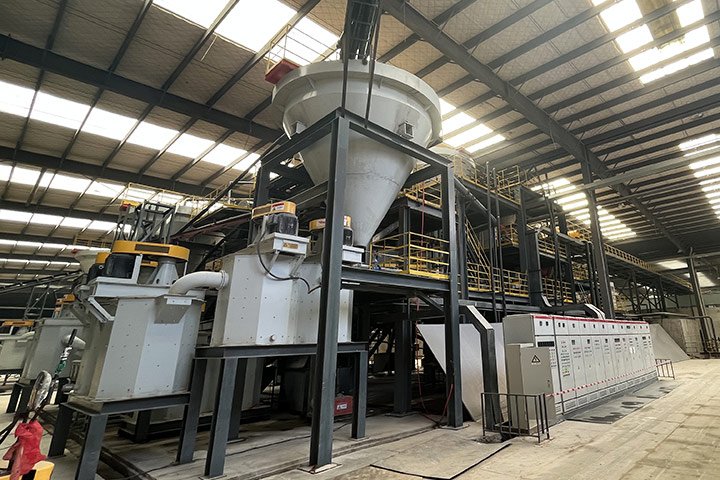

F Shandong 3000TPD Quartz PV Glass Sand Processing Plant
