Silica Sand Processing Plant Project

The raw ore of this project is vein quartz sandstone. The main technical challenge is elevated aluminum-bearing mineral impurities, which are closely intergrown on quartz grain surfaces and inside fine fissures, causing alumina content out of specification and restricting product application.

Targeting the mineral occurrence characteristics, Guote adopted a combined process of multi-stage high-intensity scrubbing, hydraulic classification and magnetic separation. This flowsheet features compact layout, short construction cycle, low comprehensive investment and fast return on investment. Guote delivered full-spectrum services including process design, complete equipment supply, drawing output, on-site installation guidance and commissioning support to guarantee smooth startup and stable capacity reaching.

GUOTE SOLUTION

  • 1

    Crushing Vein quartz sandstone is fed into crushing circuit for staged size reduction. Raw ore passes through coarse and fine crushing to reach the target feed size suitable for sand making and subsequent purification, liberating intergrown aluminous gangue minerals preliminarily.

  • 2

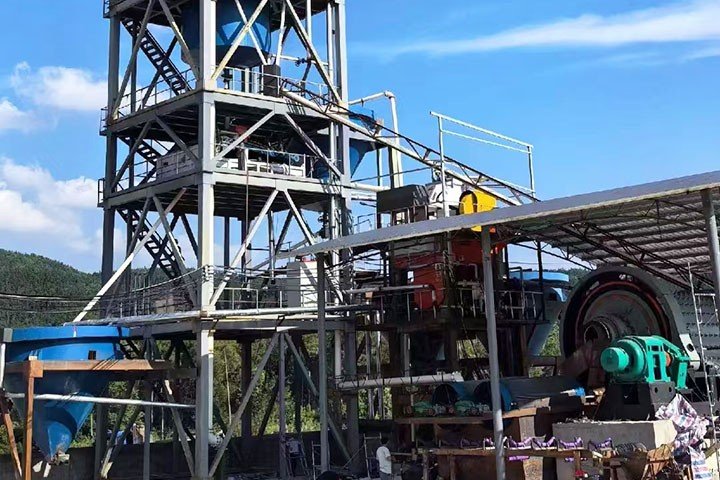

    Ball Milling Qualified crushed material enters the ball mill for controlled grinding. Grinding fineness is precisely matched to mineral dissociation requirements, turning bulk quartz into qualified sand feed for purification, so that aluminum-bearing impurities can be fully exposed for subsequent removal.

  • 3

    Multi-stage High-concentration Scrubbing Multi-pass intensive scrubbing is arranged as the core aluminium removal section. Under high pulp concentration and strong shear friction generated by the scrubber, the clay, feldspar and other aluminous impurities attached or wrapped on quartz particle surfaces are peeled off and dissociated from silica grains.

  • 4

    Desliming & Magnetic Separation After scrubbing, the slurry is sent to desliming units to separate fine slime enriched with aluminium impurities. The deslimed qualified sand then enters the purification magnetic separation station. Flat plate high-intensity magnetic separators and vertical ring high-gradient magnetic separators are deployed in series to remove iron-bearing and weakly magnetic aluminous impurity minerals, further stabilizing product indexes.

  • 5

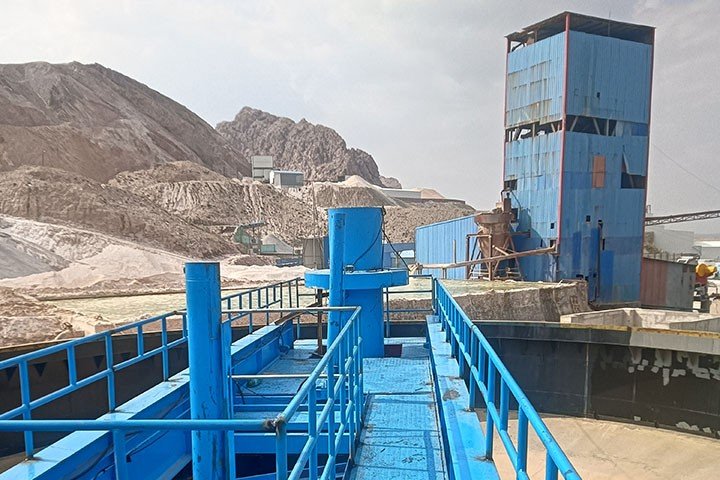

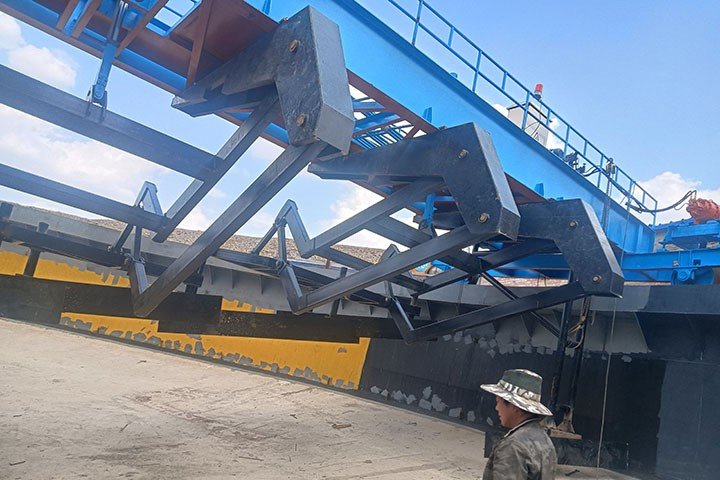

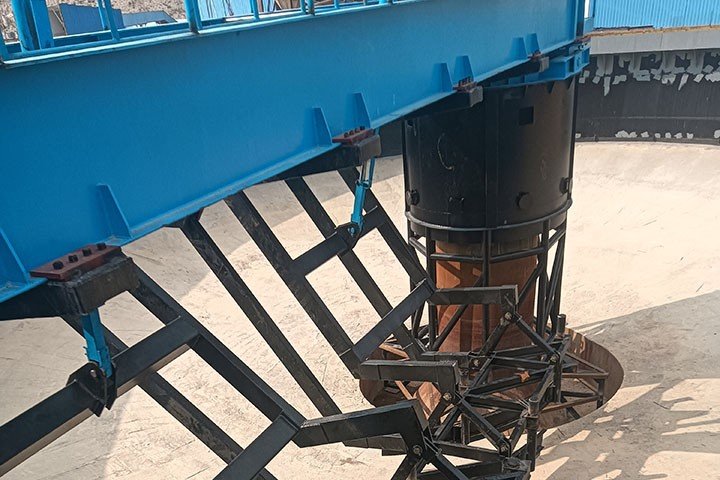

    Tailings Water Closed-loop Treatment The whole production line is equipped with high-efficiency thickeners. All beneficiation wastewater and tailings slurry are collected into thickener tanks for settling and clarification. Clarified supernatant is recycled back into the production process as process water. Zero external discharge of wastewater is realized.

PROJECT RESULT

Guote supplied complete, standardized construction drawings for the whole plant, together with on-site installation, commissioning and technical training services.

Relying on mature beneficiation theory, precision manufacturing capacity and rich overseas project implementation experience, Guote guaranteed orderly construction, smooth startup and stable production ramp-up. This project fully demonstrates Guote’s integrated strength in mineral processing R&D, equipment fabrication and turnkey EPC delivery.

A Silica Sand Processing Plant
B Silica Sand Processing Plant
C Silica Sand Processing Plant
D Silica Sand Processing Plant
