500TPD Quartz Glass Sand Mineral Processing Plant in South Africa

The customer’s raw material is natural silica sand, with a mud content of 15%, coarse fraction up to 30%, and target washed sand fraction of 3–5%. The raw sand is covered with surface iron and aluminum impurity films, which are the main obstacles to meet the strict purity requirements for glass-grade silica sand.

Guote delivered a full-set beneficiation equipment package, complete engineering drawings, and on-site installation guidance and commissioning services for this project. Drawing on advanced manufacturing capacity and abundant global project experience, Guote supported seamless site construction and stable production ramp-up.

GUOTE SOLUTION

  • 1

    Sand Making & Pre-Washing Preparation: The raw ore enters the closed-circuit milling and sand-making system, coupled with washing, desludging and pre-classification operations.

  • 2

    Milling and Post Screening: The mill grinds raw ore into sand material, which is delivered to a post-grinding screen with 2–3 mm mesh. Undersize material flows into the slurry tank; oversize coarse material is conveyed back by return belt for secondary sand making to realize closed-circuit grinding.

  • 3

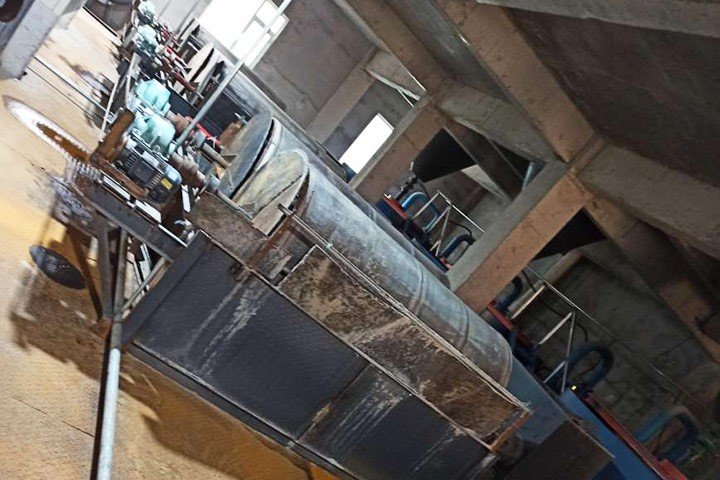

    Attrition Scrubbing: Slurry from the tank is pumped into the scrubbing machine. Intensive physical friction and extrusion strip colloidal slime, iron oxide films and aluminum-bearing coatings attached to silica grain surfaces, fully liberate surface impurities for subsequent purification.

  • 4

    Tower Desludging: Scrubbed slurry is pumped to the desludging hopper of the grading tower for sand-slime separation. This step reduces mud content and stabilizes slurry concentration to guarantee consistent downstream classification performance.

  • 5

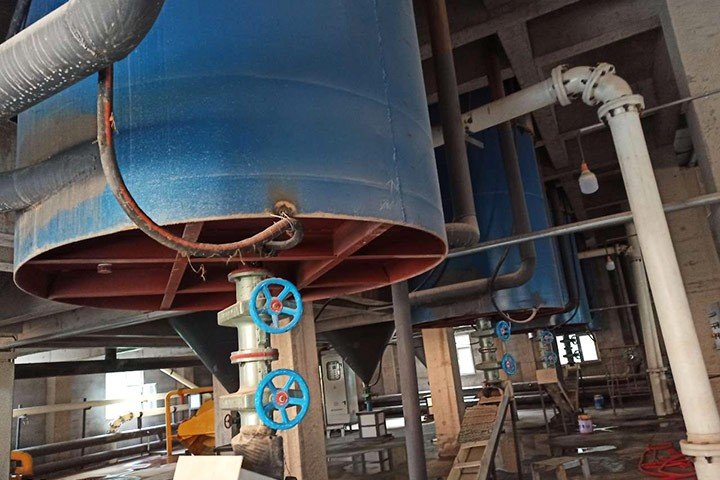

    Hindered Settling Classification: Desludged material enters the hindered settler. Particles coarser than 26 mesh (adjustable as required) are separated and returned to the mill for re-grinding. A built-in safety screen is fitted on the settler to block foreign debris and improve classification accuracy.

  • 6

    Fine Size Separation: Material finer than 26 mesh flows into the hydraulic classifier to remove ultra-fine fractions below 140 mesh, precisely controlling the particle size distribution of glass sand feed.

  • 7

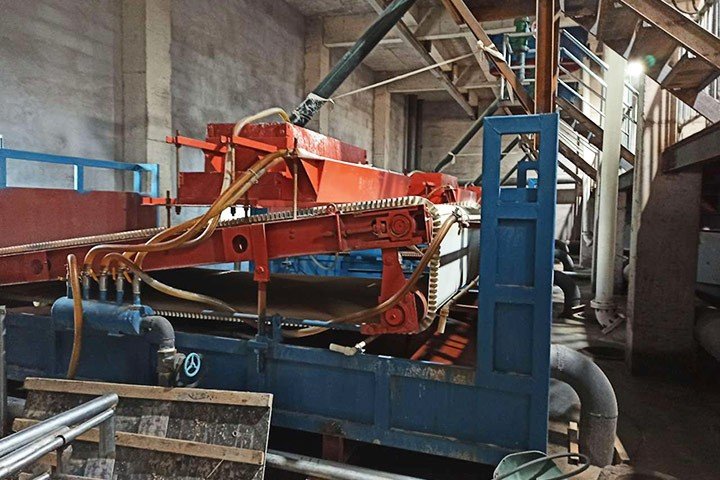

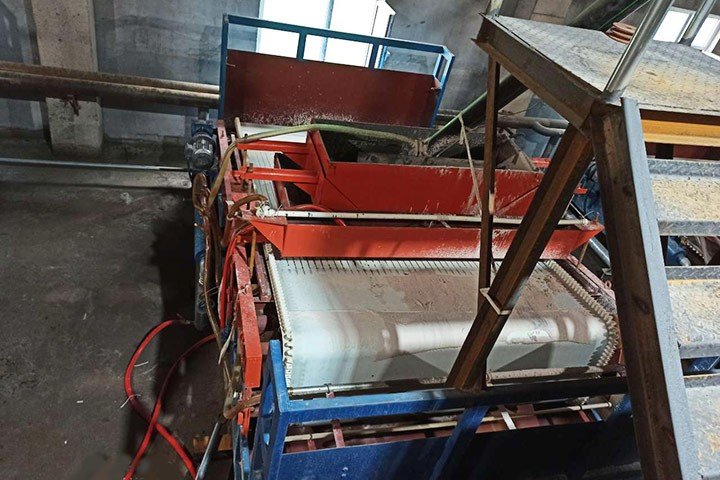

    High-Intensity Plate Magnetic Separation: Sized qualified sand enters the high-intensity plate magnetic separator with magnetic field strength of 12,000–13,000 GS. This unit removes free mechanical iron and most weakly magnetic iron-bearing minerals.

  • 8

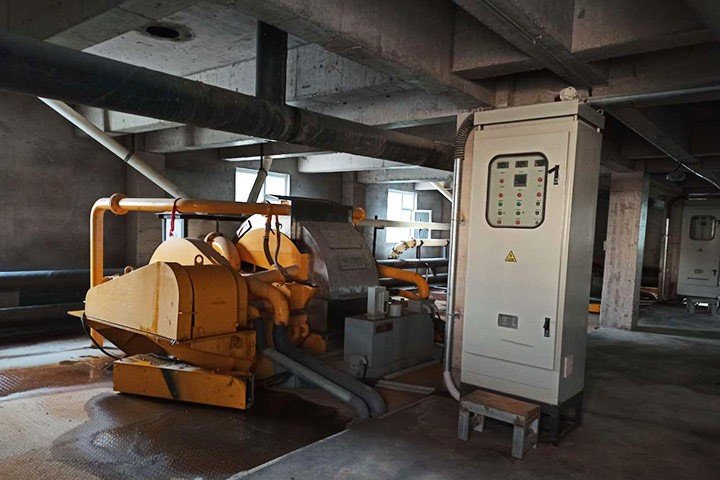

    Vertical Ring High Gradient Magnetic Separation: The sand then proceeds to the vertical ring high-gradient magnetic separator with electromagnetic field strength of 1.4 T for deep iron removal, further eliminating trace weakly magnetic iron impurities to lock in low iron index for glass sand.

  • 9

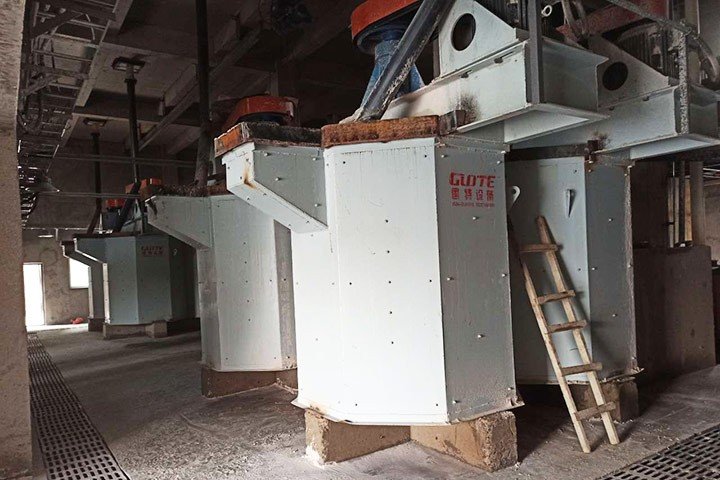

    Concentration & Flotation for Aluminum Removal: After magnetic iron removal, silica sand slurry is concentrated in the thickener and transferred to flotation cells. Flotation is adopted to remove aluminum-bearing silicate gangue minerals such as feldspar and mica, realizing efficient dealuminization and silica separation.

  • 10

    Dewatering: Flotation concentrate is treated by dewatering screen to lower surface moisture, then transported by belt conveyor to the finished product zone for follow-up treatment.

  • 11

    Circulating Water System: A dedicated thickener collects wastewater from all wet sections. Settled clear water is recycled back to the wet sand-making circuit to reduce freshwater consumption.

  • 12

    Tailings & Fine Sand Recovery: Underflow slurry from the thickener is pumped to filter press or ceramic filter for solid-liquid separation. Filter cake is stacked as tailings; recovered fine sand after dewatering is collected in a separate thickener as a secondary by-product.

  • 13

    Product Output & Closed-loop Operation: The plant produces qualified concentrated glass silica sand, secondary fine sand and filter mud cake. The whole line adopts closed water circulation, with nearly zero wastewater discharge and only minimal makeup water required.

PROJECT RESULT

The whole production line achieves stable, continuous operation after commissioning. The customized closed-circuit sand making, scrubbing, staged classification, two-stage magnetic separation followed by flotation process is designed for glass-grade silica sand. Magnetic separation removes iron impurities preferentially to reduce flotation reagent consumption, and subsequent flotation targets aluminum-rich gangue minerals. This combination effectively controls Fe and Al indicators and meets the strict quality standard of quartz glass sand. The closed water recycling design satisfies local environmental requirements, improves resource utilization and brings stable economic benefits for the client.

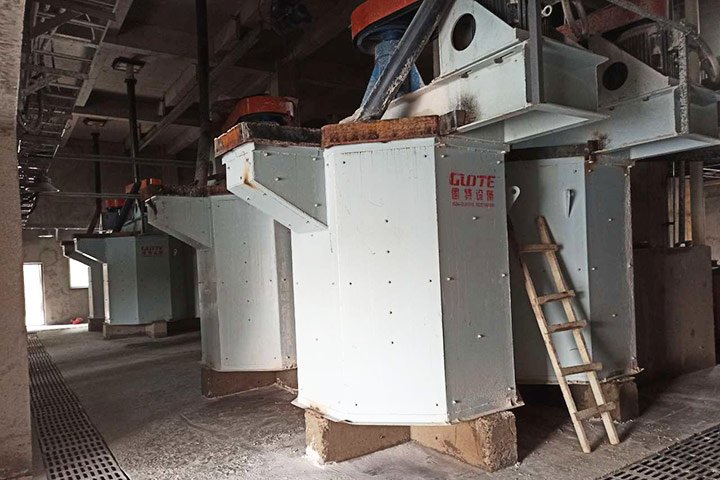

A 500TPD Quartz Glass Sand Mineral Processing Plant
