Vietnam 1,500TPD Quartz Slab Sand Processing Plant

The raw ore of this project is high-purity vein quartz lump ore. Even though vein quartz features high inherent SiO₂ content, surface-stained yellow and black mineral impurities will seriously affect the whiteness and quality of slab-grade quartz sand.

This is a full-scope mineral processing service project undertaken by Guote. The whole delivery scope covers beneficiation laboratory test, process and layout design, equipment fabrication, export packaging & logistics, on-site installation guidance and commissioning until stable production.

GUOTE SOLUTION

  • 1

    Three-stage Closed-circuit Crushing Lumpy vein quartz adopts three-stage crushing circuit (coarse crushing, secondary crushing and fine crushing). Stepwise particle size reduction realizes preliminary mineral dissociation, producing stable feed with suitable granularity for subsequent pickling and sand-making procedures. Oversize materials are screened and returned for re-crushing to form closed-circuit crushing.

  • 2

    Pickling for Surface Stain Removal Crushed qualified quartz material is delivered into the pickling unit. Controlled acid leaching removes iron-bearing oxides and dark mineral stains attached to quartz grain surfaces, eliminating yellow and black discoloration defects and laying a foundation for high-whiteness slab sand. After pickling, materials go through sufficient rinsing to reduce residual acid.

  • 3

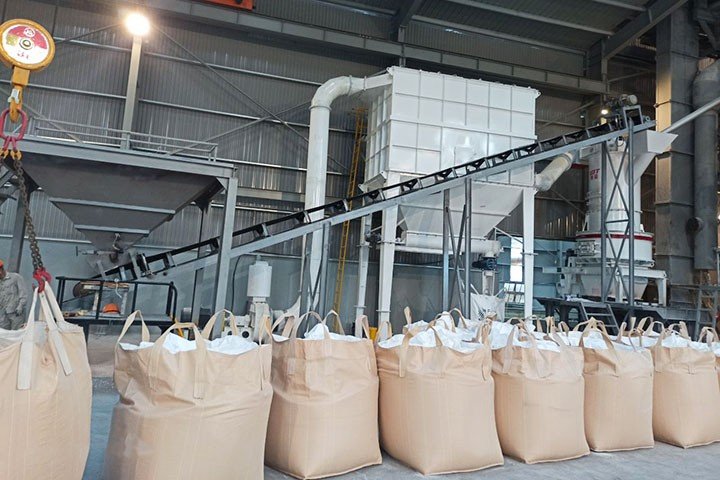

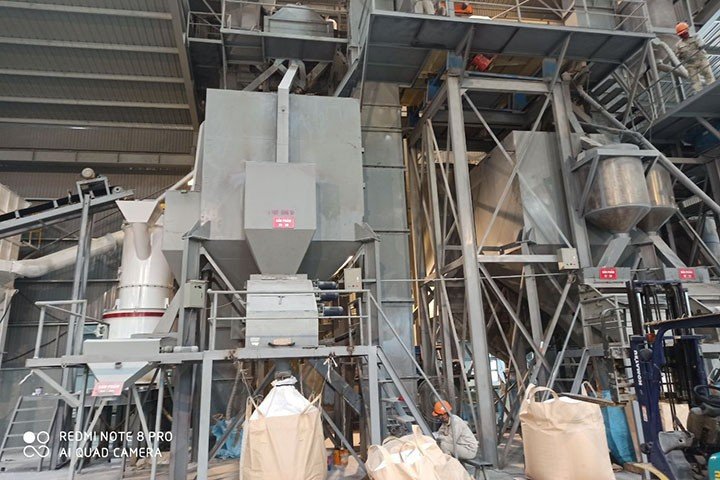

    Vertical Rock-on-Rock Sand Making with Built-in Airflow Classification Rinsed quartz material is lifted by bucket elevator into vertical sand maker. It adopts rock-on-rock impact crushing principle, which effectively reduces iron contamination brought by metal lining wear and optimizes grain shape and particle gradation of finished sand. The integrated airflow classification system captures fine dust produced during impact crushing in real time, cutting material loss and dust emission. Conventional horizontal sand makers create more than 30% fine powder, while this advanced vertical sand maker controls fine fraction within 5%–10%.

  • 4

    Magnetic Roller Magnetic Separation for Iron Removal Sand from the sand-making section is fed onto belt magnetic roller separator. Pure non-magnetic quartz sand falls off naturally to the non-magnetic discharge chute. Magnetic iron contaminants are adsorbed by magnetic rollers and transported to the iron discharge outlet for separate rejection, realizing reliable separation of magnetic impurities.

  • 5

    Precision Classification by Square Gyratory Sifter Guote self-developed high-capacity, high-precision square gyratory sifters are adopted for final grading. Driven by vibrators, the screen deck generates compound vibration and gyratory swing motion. Materials spread rapidly and uniformly on the front of screen surface, achieving efficient and precise classification to satisfy the strict particle size distribution standard required by quartz slab manufacturing.

PROJECT RESULT

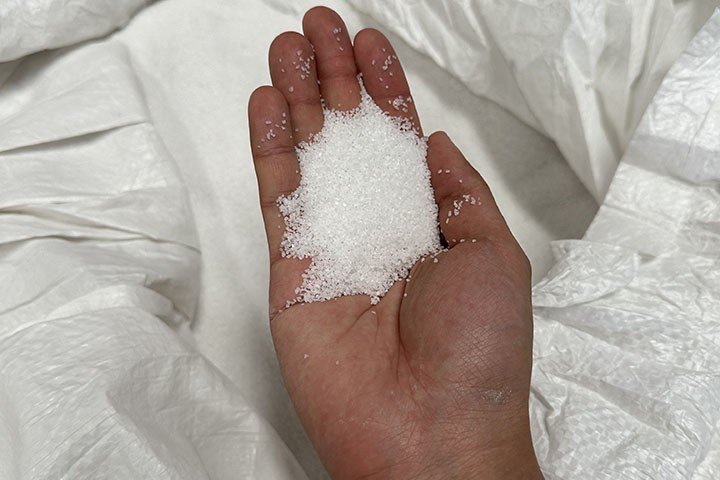

After the complete purification flowsheet, the quartz concentrate fully meets slab-grade quartz sand specifications. The comprehensive performance of this project exceeds the client’s expectations.

The whole production line runs continuously and steadily with reliable equipment operation. All beneficiation indicators and economic benefits reach design targets. Guote’s full-chain mineral processing service has won high recognition from the Vietnamese customer.

A Vietnam 1,500TPD Quartz Slab Sand Processing Plant
B Vietnam 1,500TPD Quartz Slab Sand Processing Plant
C Vietnam 1,500TPD Quartz Slab Sand Processing Plant

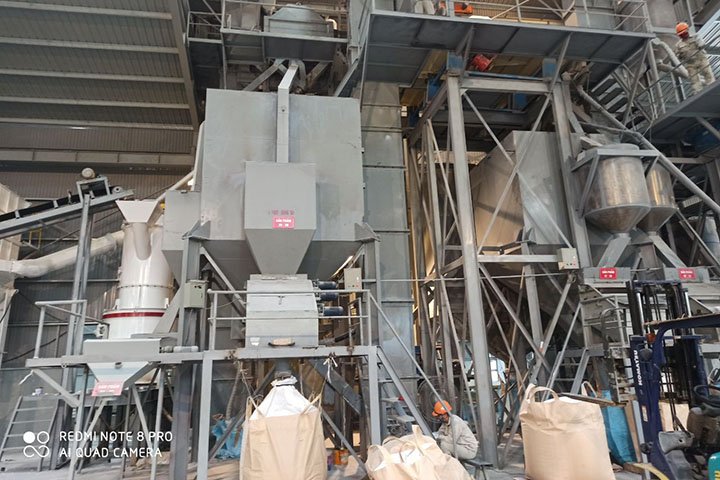

D Vietnam 1,500TPD Quartz Slab Sand Processing Plant
