1,300TPD Quartz Slab Sand Processing Plant

The raw ore of this project is porcelain-white lump vein quartz. Vein quartz has high inherent silica content, yet it contains intergrown iron-bearing minerals and surface clay contamination that adversely affect slab-grade quartz sand quality.

Combined with ore characteristics and site layout constraints, Guote’s technical team completed the overall process design and plant layout. Optimized equipment matching and compact layout scheme greatly cut the client’s capital investment while satisfying all quality requirements for slab quartz sand.

GUOTE SOLUTION

  • 1

    Three-stage Crushing Lumpy vein quartz is processed by three-stage crushing. Coarse, secondary and fine crushing work in tandem to steadily reduce ore particle size and fully dissociate impurity minerals, producing qualified feed suitable for subsequent wet sand-making and purification procedures.

  • 2

    Sand Making, Washing, Scrubbing and Desliming Crushed material is conveyed by a weighing belt feeder to vibrating screen for pre-screening. Screened material flows into spiral ore washer for primary washing and rough desliming to remove loose surface clay. After pre-washing, the material goes into the attrition scrubber for intensive secondary scrubbing, stripping clay films and surface-stained iron impurities tightly attached to quartz grains. The scrubbed slurry is pumped to the desliming hopper of the classification tower to separate sand, slime and fine light impurities, lowering mud content and stabilizing pulp density for follow-up purification.

  • 3

    Magnetic Separation for Iron Removal The scrubbed and deslimed quartz slurry is fed onto the belt magnetic roller separator. High-purity non-magnetic quartz sand falls off naturally into the non-magnetic discharge outlet. Magnetic iron-bearing impurities are captured by magnetic rollers and carried to the magnetic discharge end for discharge, realizing reliable separation of magnetic contaminants from quartz sand.

  • 4

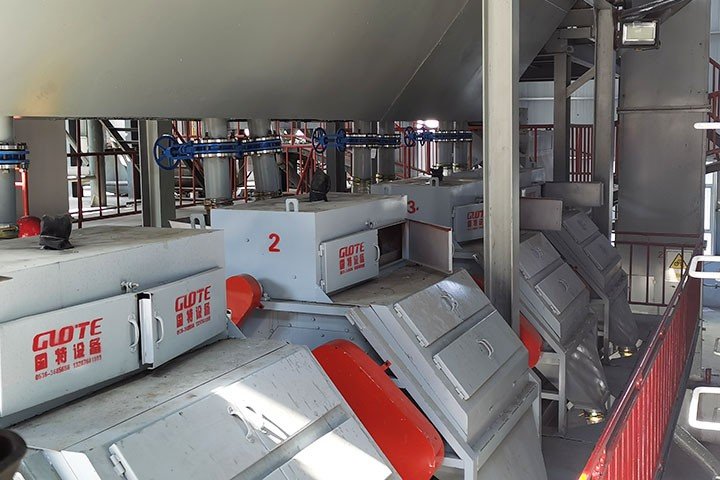

    Precision Classification Screening Guote self-developed high-capacity and high-precision linear vibrating screens and square swing screens are adopted for final grading. Driven by vibrators, the screen surface generates compound vibration and swing motion. Materials spread rapidly and evenly on the front section of the screen deck, realizing efficient, accurate particle size classification to meet the strict particle grading requirements of slab quartz sand.

PROJECT RESULT

After the whole purification flow, the quartz concentrate fully complies with slab-grade quartz sand standards. This optimized process reduces comprehensive production cost by 20% and upgrades the stability of product quality.

The whole production line runs continuously and stably with reliable equipment performance. All beneficiation indicators and economic benefits reach the design targets. Guote’s turnkey EPC service has obtained full recognition from the customer.

A 1,300TPD Quartz Slab Sand Processing Plant
B 1,300TPD Quartz Slab Sand Processing Plant

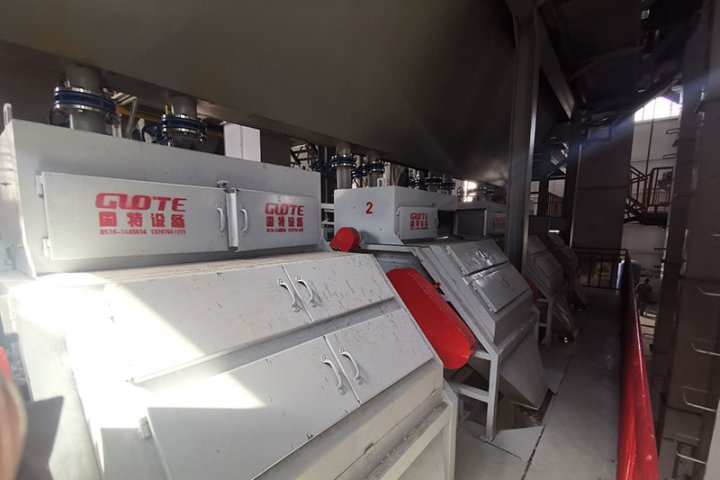

C 1,300TPD Quartz Slab Sand Processing Plant
D 1,300TPD Quartz Slab Sand Processing Plant
E 1,300TPD Quartz Slab Sand Processing Plant
