Quartz Recovery & Tailings Treatment Plant from Granite Ore in Inner Mongolia

The raw material is lump granite, an igneous rock consisting mainly of quartz, feldspar and mica. The target product is liberated quartz sand; feldspar, mica, iron minerals and fine slime are gangue impurities. The client faced several key challenges: magnetic separation cannot remove non-magnetic gangue like feldspar and mica, stable control of product particle size was hard, conventional dewatering failed to meet the low moisture requirement for dry sand, and strict local environmental rules demanded recycled process water and proper tailings disposal.

Guote engineers completed site surveys and beneficiation tests, repeatedly optimizing the flowsheet. Balancing cost, environmental compliance, safety and automation, Guote developed a full beneficiation process: crushing → grinding & scrubbing → linear screen classification → desliming → magnetic separation → flotation → deep dewatering → drying, with matched water recycling and tailings treatment systems.

GUOTE SOLUTION

  • 1

    Three-stage Crushing Bulk granite ore is treated by three-stage crushing to reduce particle size step by step, producing qualified feed below 3 cm for the subsequent wet grinding and sand-making circuit.

  • 2

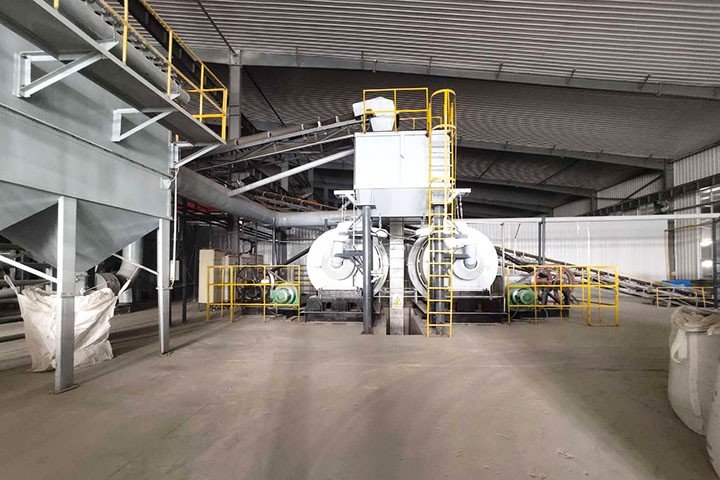

    Ball Milling, High-concentration Scrubbing and Linear Vibrating Screen Classification -3cm crushed material enters the ball mill for fine grinding to liberate quartz from intergrown feldspar and mica gangue minerals. High-concentration scrubbing is adopted to strip clay films and surface-stained impurities on quartz grains. The slurry is delivered to linear vibrating screens to separate oversize coarse particles and lock the target particle size range of quartz sand.

  • 3

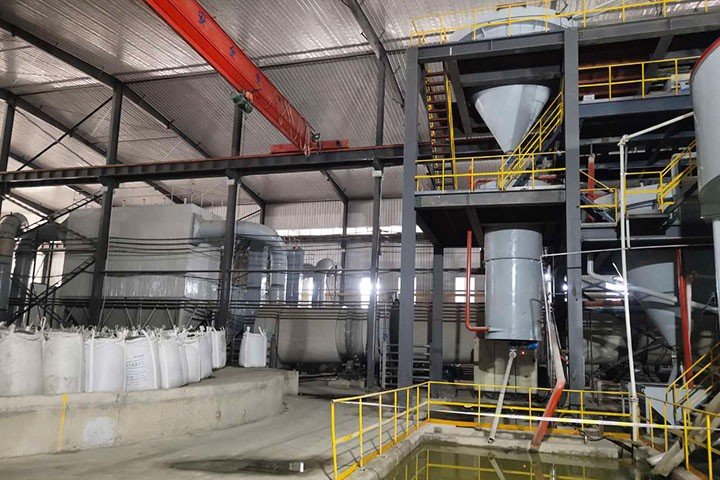

    Desliming Classified slurry goes into the desliming unit to remove fine slime. Fine slime seriously interferes with the selectivity of magnetic separation and flotation, so desliming at this stage guarantees stable conditions for the following purification processes.

  • 4

    Medium & High-intensity Magnetic Separation Medium magnetic separator and high-intensity magnetic separator work in sequence to remove magnetic iron-bearing minerals and weakly magnetic impurities.

  • 5

    Flotation for Non-magnetic Gangue Removal After magnetic separation, flotation is applied to selectively separate feldspar, mica and other non-magnetic gangue minerals which cannot be removed by magnetic separation. This step is critical to raise the purity of quartz concentrate.

  • 6

    Deep Dewatering by Vacuum Belt Filter Purified quartz slurry is sent to the vacuum belt filter for deep dewatering. It reduces the moisture of filter cake substantially and cuts down energy consumption for the subsequent drying process.

  • 7

    Thermal Drying Filter cake from vacuum belt filter is conveyed into the dryer for hot-air drying to obtain dry quartz sand finished product.

  • 8

    Closed Water Recycling and Tailings Treatment All process wastewater flows into high-efficiency thickeners for settling and recycling, achieving zero liquid discharge. Tailings are thickened and sent to tailings pond in accordance with environmental requirements to realize standardized solid waste management.

PROJECT RESULT

This plant for quartz recovery from granite ore together with tailings treatment has been successfully commissioned and put into production.

The combined flowsheet of scrubbing, linear screening, desliming, magnetic separation and flotation solves the key bottleneck that iron removal by magnetism alone cannot eliminate feldspar and mica impurities. The supporting vacuum belt filter and dryer steadily control the moisture of final quartz sand.

The project breaks through the drawbacks of traditional granite ore beneficiation routes and builds an automated, eco-friendly zero-discharge production line. Quartz recovery rate and overall economic benefit have been greatly improved. It realizes quality upgrading by scientific mineral processing technology and green sustainable development through process innovation.

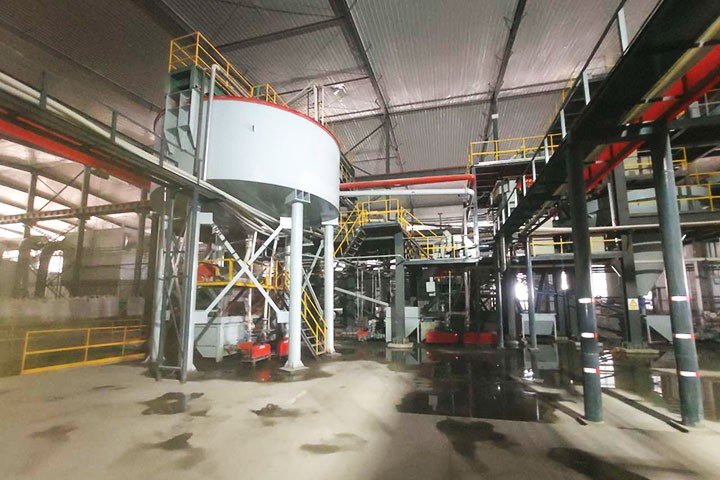

A Granite Processing and Tailings Treatment Plant in Inner Mongolia

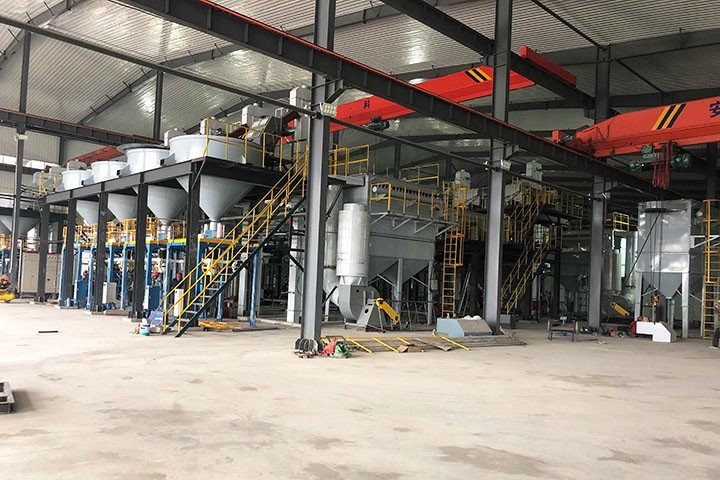

B Granite Processing and Tailings Treatment Plant in Inner Mongolia

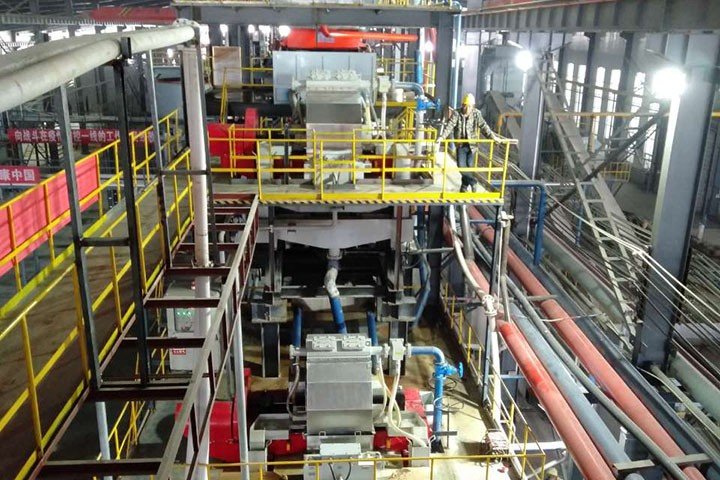

C Granite Processing and Tailings Treatment Plant in Inner Mongolia

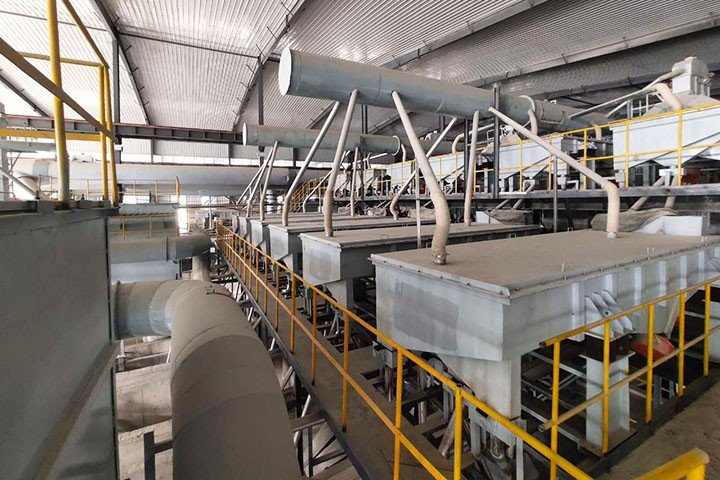

D Granite Processing and Tailings Treatment Plant in Inner Mongolia

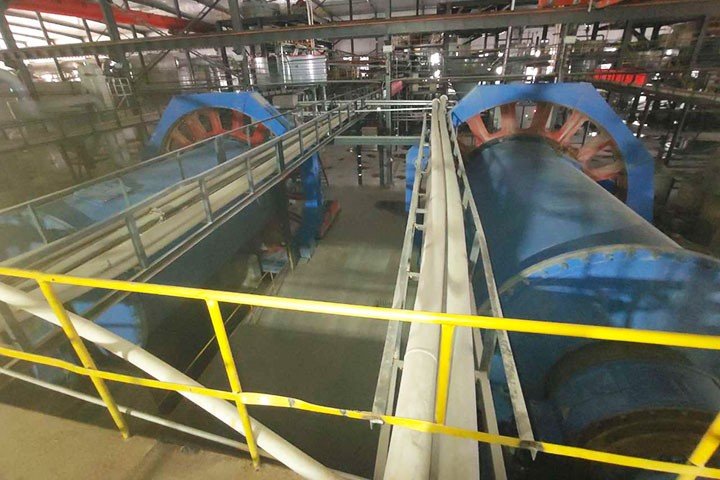

E Granite Processing and Tailings Treatment Plant in Inner Mongolia

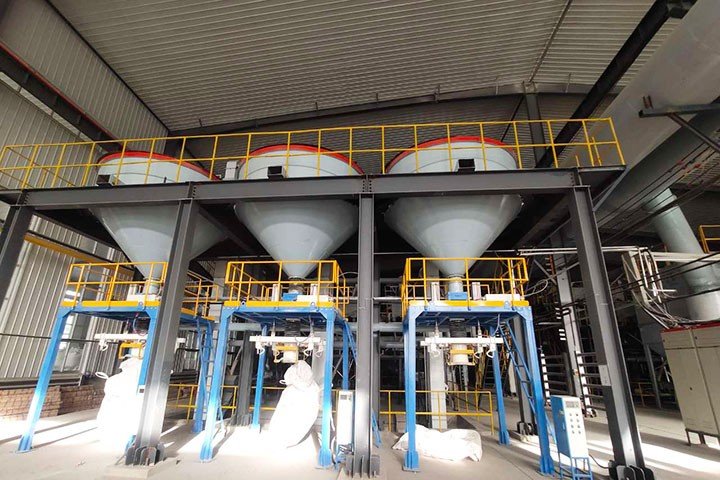

F Granite Processing and Tailings Treatment Plant in Inner Mongolia

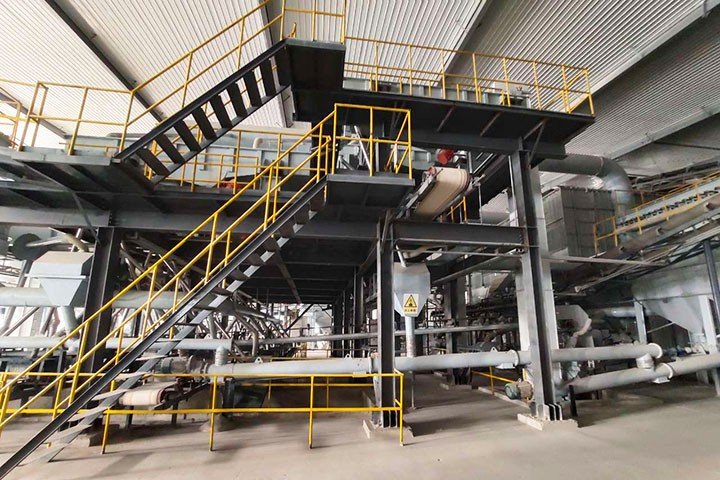

G Granite Processing and Tailings Treatment Plant in Inner Mongolia

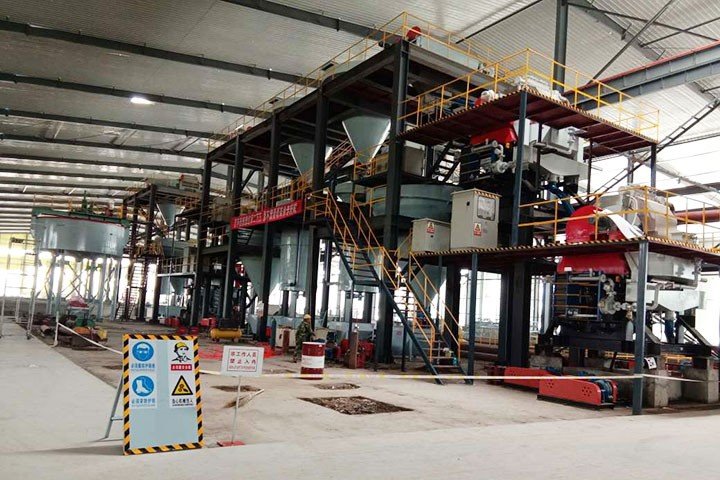

H Granite Processing and Tailings Treatment Plant in Inner Mongolia
I Granite Processing and Tailings Treatment Plant in Inner Mongolia
J Granite Processing and Tailings Treatment Plant in Inner Mongolia

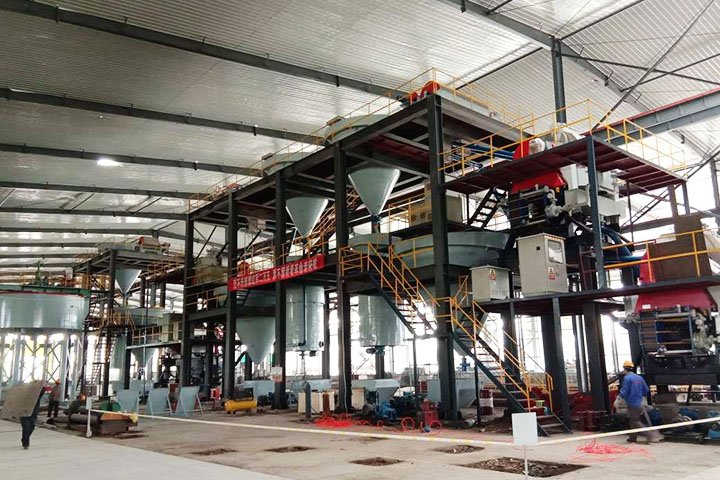

K Granite Processing and Tailings Treatment Plant in Inner Mongolia
