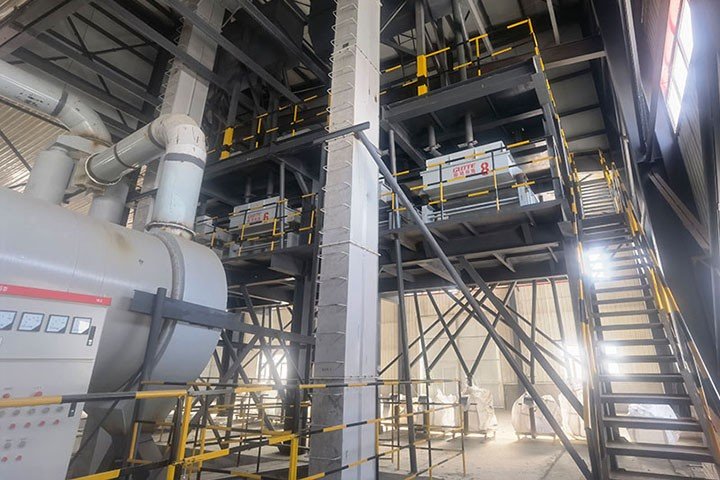

Guote delivered customized EPC turnkey services for this vein quartz processing project in Xinjiang, covering mineral processing R&D and process design, complete equipment fabrication and procurement, site layout planning, installation guidance and commissioning. Based on the customer’s target slab-grade silica sand specification and systematic mineralogical test analysis of run-of-mine vein quartz, Guote formulated a full beneficiation flowsheet integrating crushing, pre-washing, color sorting, scrubbing, multi-stage classification and desliming, multi-stage magnetic iron removal and acid leaching purification. Relying on mature silica purification technology, reliable proprietary equipment and standardized full-cycle project services, Guote assisted the client in constructing an efficient, automated and environmentally friendly production line, and obtained high recognition from the customer.

GUOTE SOLUTION

  • 1

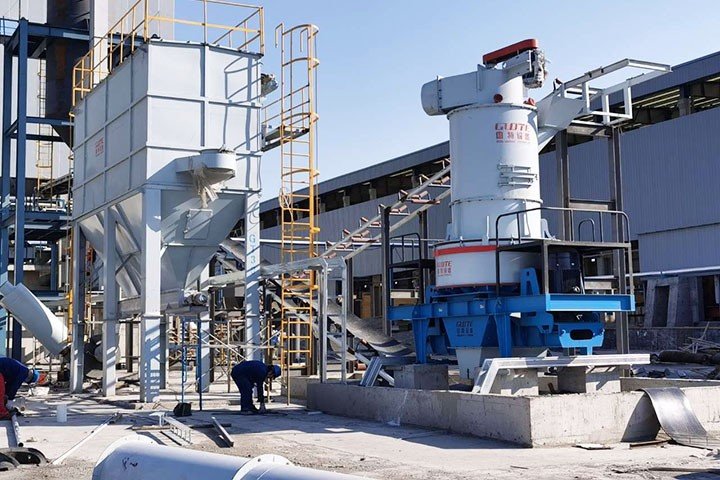

    Crushing: Run-of-mine vein quartz is first fed into the buffer silo equipped with pre-removal screening function to block bulk debris and sundries. Uniform feeding is realized by vibrating feeder into cone crusher, and the raw ore is crushed to the target particle size range of 5 mm – 30 mm for subsequent sorting and processing.

  • 2

    Pre-screening and Pre-washing: Crushed ore is delivered to the pre-vibrating screen for particle size classification. Oversize material above 30 mm is returned to cone crusher for re-crushing to form closed-circuit crushing. Material within 5–30 mm enters spiral ore washer for pre-washing, removing surface adhered slime and clay impurities and lowering the mud content of feed for downstream working sections.

  • 3

    Color Sorting: Pre-washed material is sent to vibrating screen to separate fine fraction below 5 mm. This fine fraction below 5 mm is conveyed directly into the ball milling system for sand making together with qualified material after color sorting. The coarse fraction of 5–30 mm is fed into color sorter, which identifies and rejects discolored rock, black mineral inclusions and heterogeneous gangue by optical recognition, reducing impurity load before fine grinding.

  • 4

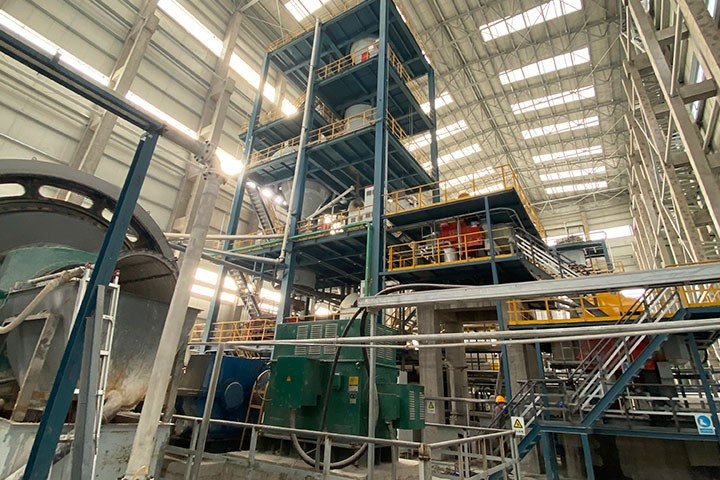

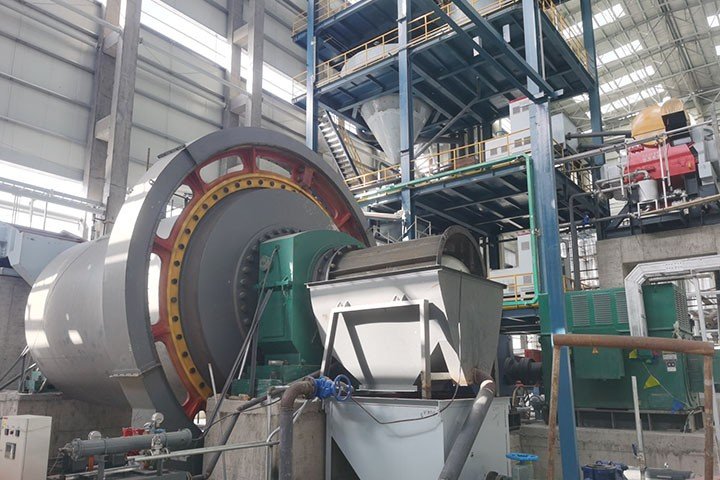

    Grinding and Attrition Scrubbing: Qualified material after color sorting together with the fine fraction below 5 mm enters ball mill for sand making and monomer liberation. Mill discharge flows to post-grinding screen to build closed-circuit grinding. Undersize qualified slurry is pumped into high-efficiency attrition scrubber for intensive scrubbing. High-shear scrubbing effectively peels off iron oxide film, aluminum-bearing impurities and colloidal contaminants attached on silica sand grain surfaces, laying the foundation for subsequent purification.

  • 5

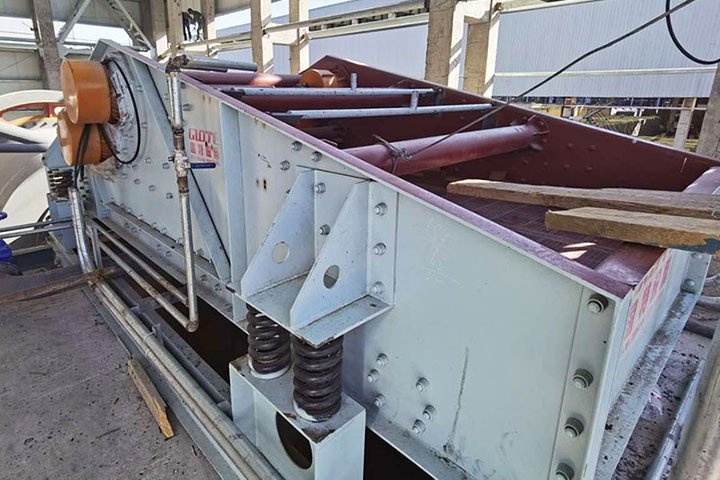

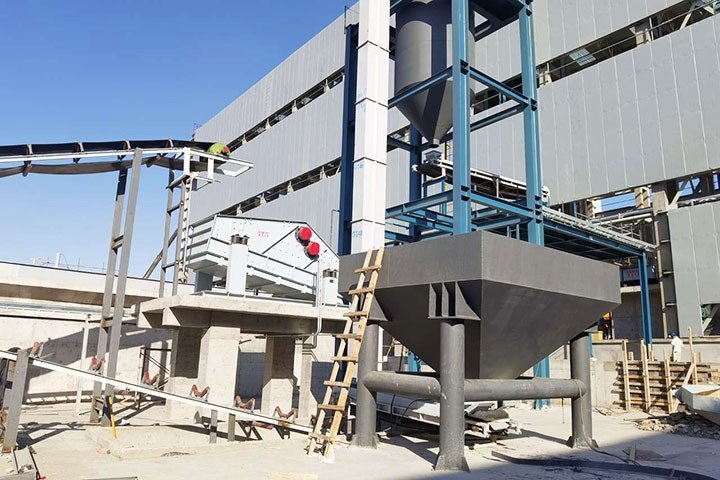

    Multi-stage Desliming and Hydraulic Classification: The target finished grain size of this line is 26 mesh ~ 140 mesh. Scrubbed slurry is pumped into desliming hopper on the classification tower for primary desliming to remove fine slime. The slurry then flows into thickening hopper for pulp concentration adjustment before entering hindered settler. The hindered settler separates coarse fraction above 26 mesh, which is conveyed back to the ball mill for regrinding. A guard screen is configured in this circuit to protect downstream pumps and classification equipment from accidental oversize debris and stabilize classification efficiency and target silica grain recovery. Fine slurry below 26 mesh goes into hydraulic classifier to separate ultra-fine fraction below 140 mesh which is discarded as slime tailing, ensuring stable particle composition of feed entering magnetic separation.

  • 6

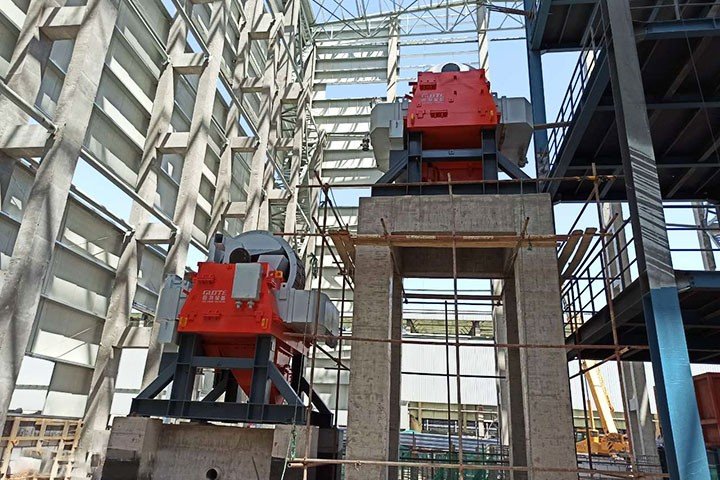

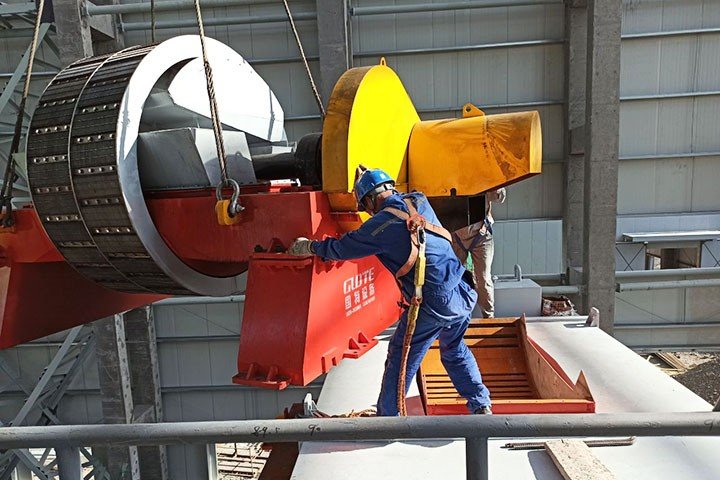

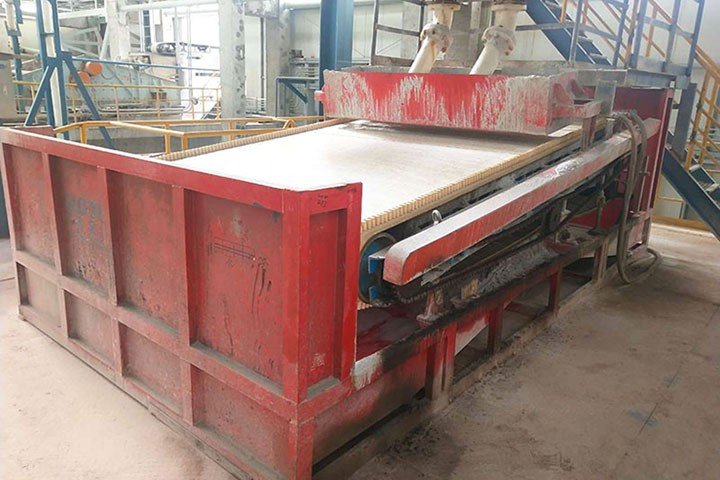

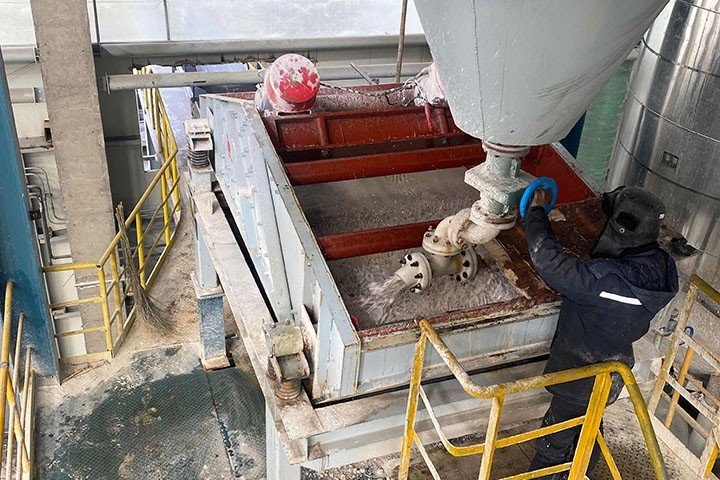

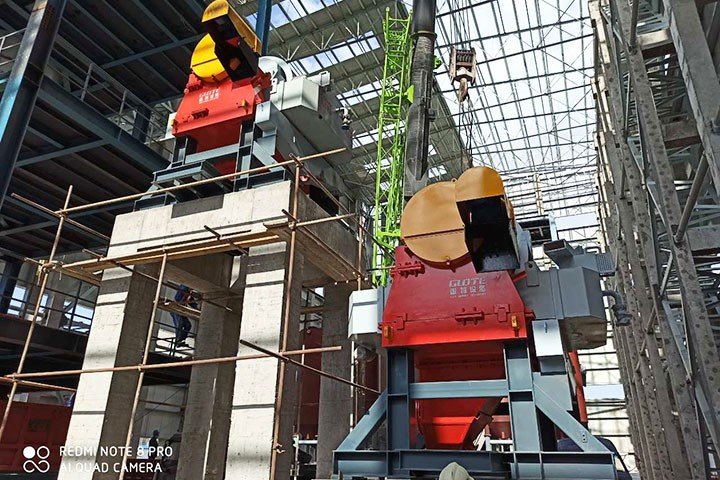

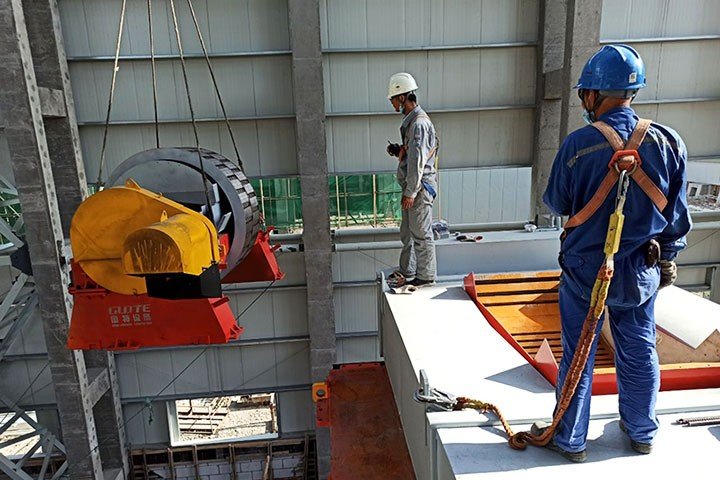

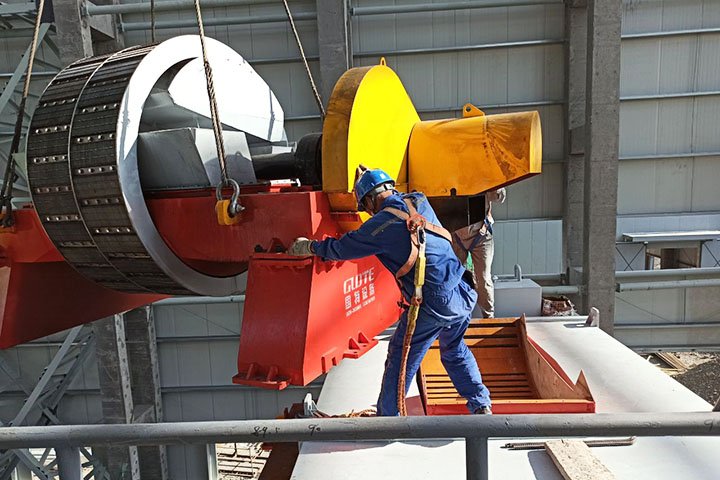

    Multi-stage Magnetic Separation for Iron Removal: Sized qualified silica slurry passes sequentially through medium-intensity plate magnetic separator (4000–4500 GS) to remove tramp mechanical iron. Afterwards, it enters high-intensity plate magnetic separator (11000–12000 GS) to further separate residual mechanical iron and weakly magnetic iron-bearing minerals. The material then flows into two vertical ring high-gradient electromagnetic magnetic separators connected in series (magnetic flux density 1.5 T) for deep iron removal. Benefiting from multi-stage pre-desliming, ultra-fine slime that would increase acid consumption has been removed in advance. After magnetic separation, the silica sand is concentrated in thickening hopper, then dewatered by dewatering screen to reduce surface moisture, and transported by belt conveyor to temporary water-control stockpile for buffering before acid leaching.

  • 7

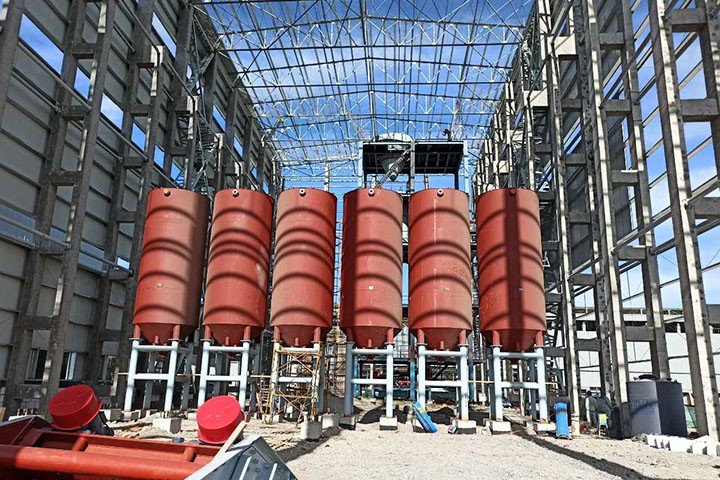

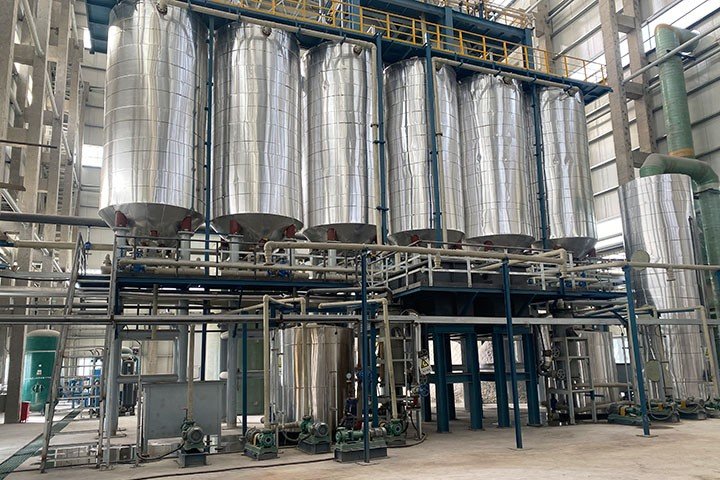

    Acid Leaching Purification, Neutralization and Washing: Buffered silica sand is conveyed from silo into PP acid leaching reactor. Environmentally friendly leaching agent is added, and the reaction proceeds under controlled temperature of 70–80 ℃ for 6–8 hours to dissolve residual iron and trace metallic impurities that cannot be removed by physical separation. After reaction, bulk waste acid is pumped into hot acid circulation tank for recycling. Clean water is introduced to displace and wash out residual acid trapped inside sand voids. The sand is then rinsed in scrubbing tank for preliminary deacidification. Dilute 0.5% industrial alkali solution is added to neutralize the sand until pH reaches 6.5–7.0. Neutralization wastewater is collected into dedicated wastewater tank for centralized treatment. After repeated clean water rinsing, the purified silica sand is dewatered and transported to the finished product warehouse.

PROJECT RESULT

This slab-grade silica sand production line was officially commissioned and put into operation in 2023. The finished silica sand fully meets the strict quality requirements for quartz slab manufacturing. In the whole cycle of design and construction, Guote adheres to the principle of green and low-carbon production. Through scientific process matching, high-efficiency purification equipment and supporting wastewater recycling facilities, Guote helped the customer build a high-standard green silica sand plant with stable indicators, low consumption and reliable automation performance. The stable operation effect and technical service have won high praise from the client.
