Gansu 3,000TPD Quartz Glass Sand + Quartz Slab Sand Dual-processing Project

The raw ore is vein quartz. Iron oxide rust films are distributed along mineral fissures, together with intergrown muscovite and other aluminous gangue minerals. Different downstream product lines (quartz glass sand and quartz slab sand) require distinct impurity indexes and particle gradations, which brings high requirements for flexible process arrangement.

Guote adheres to the core principle of controlling investment and maximizing returns for investors. Meanwhile, the design fully considers occupational health and safety for site operators, environmental protection and harmonious coexistence with the surrounding ecology, resource recycling, and energy efficiency optimization for individual equipment and the whole production line. Every unit operation and overall flowsheet is carefully optimized.

GUOTE SOLUTION

  • 1

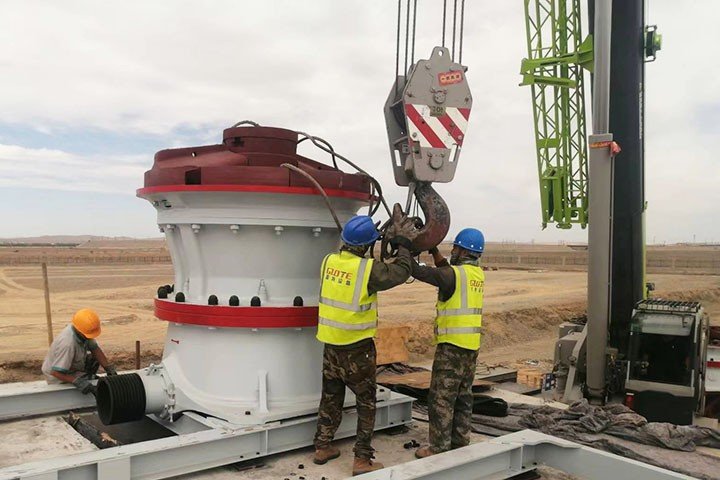

    Three-stage Closed-circuit Crushing Vein quartz lump ore adopts three-stage closed-circuit crushing: coarse crushing, secondary crushing and fine crushing. The ore is gradually reduced to the suitable feed size for subsequent grinding and purification. Oversize fractions are screened and returned for re-crushing to realize sufficient preliminary dissociation of impurity minerals along fissures.

  • 2

    Ball Milling and Closed-circuit Classification Crushed qualified material is fed into the ball mill for grinding. Combined with hydrocyclone classification, closed-circuit grinding is realized. Grinding fineness is precisely controlled according to the dissociation requirement of muscovite and iron-bearing impurities, to prepare uniform feed sand for the follow-up purification section.

  • 3

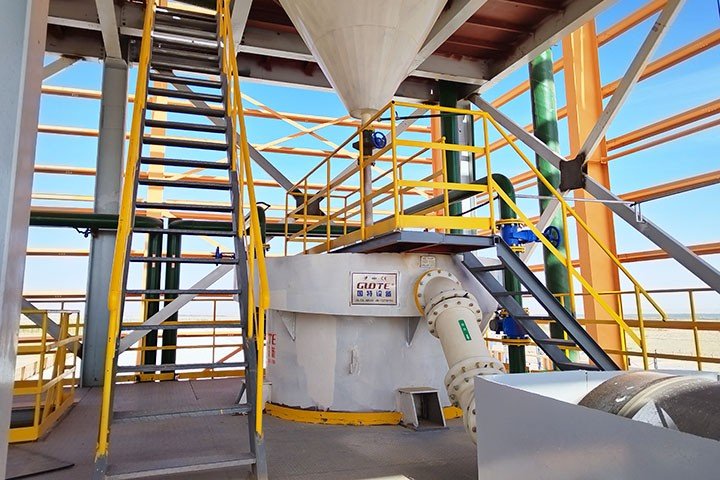

    High-concentration Scrubbing and Desliming Ground qualified pulp enters the attrition scrubbing and desliming station. High-shear scrubbing peels off loose rust films and clay contaminants on quartz grain surfaces; matched desliming equipment separates fine slime enriched with aluminium and iron impurities, reducing the load of subsequent separation processes.

  • 4

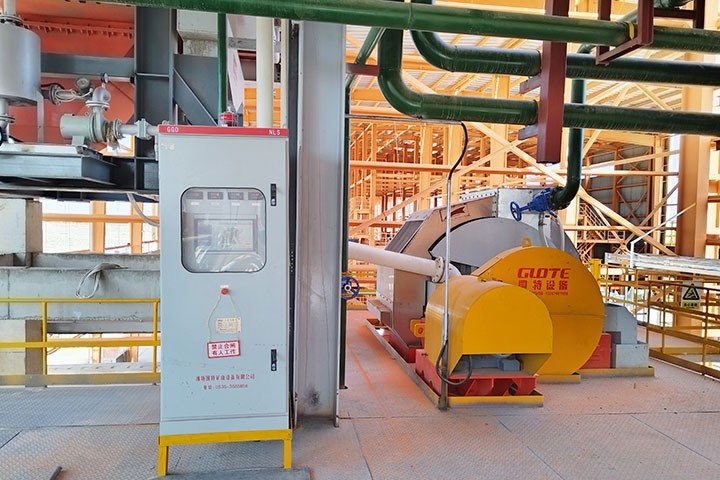

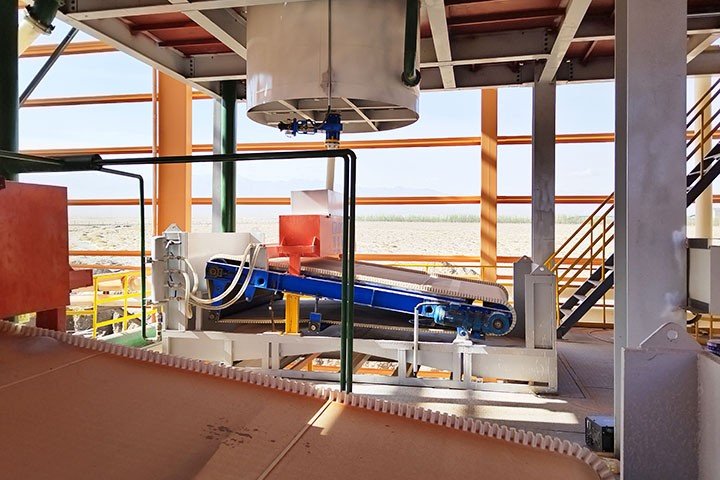

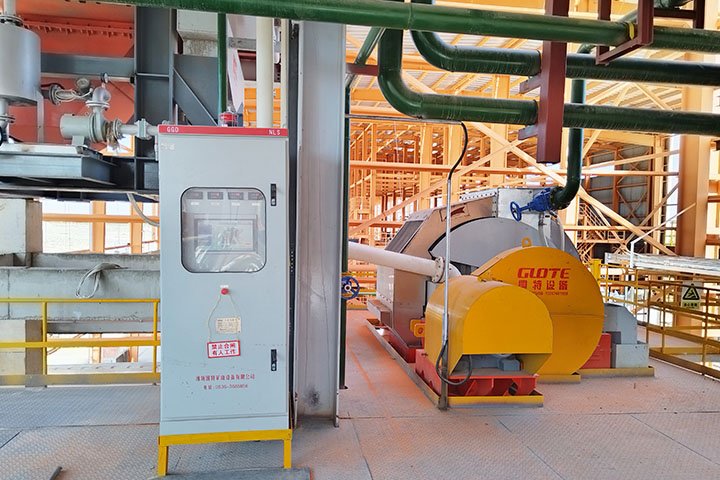

    Medium & High Intensity Magnetic Separation After scrubbing and desliming, sand material is delivered to medium and high-field magnetic separation units. Guote’s self-developed plate high-intensity magnetic separators and vertical ring high-gradient magnetic separators are deployed here, with maximum background magnetic field up to 2.0 T. This stage removes free iron oxides and weakly magnetic iron-bearing impurities efficiently.

  • 5

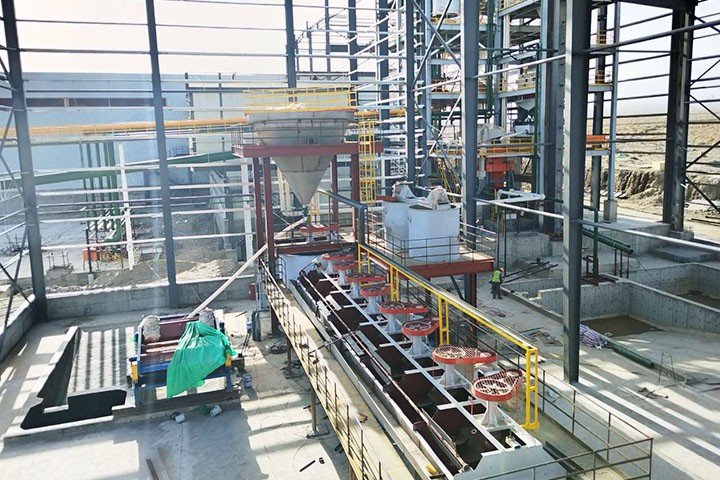

    Flotation for Muscovite Removal Magnetically purified material enters flotation circuit. Flotation machines selectively separate muscovite, the main aluminous gangue mineral in this ore. Flotation is the key step to lower alumina index and satisfy the strict specification of high-grade quartz glass sand.

  • 6

    Acid Leaching and Acid Washing Flotation tailing sand goes into the acid leaching section. Controlled acid leaching dissolves residual iron oxide stains that cause yellowing of quartz grains. Sufficient counter-current rinsing is arranged after leaching to thoroughly remove residual acid from sand surfaces.

  • 7

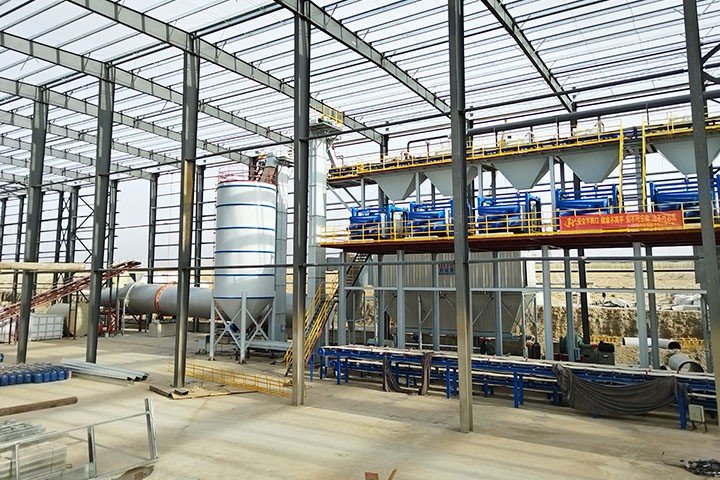

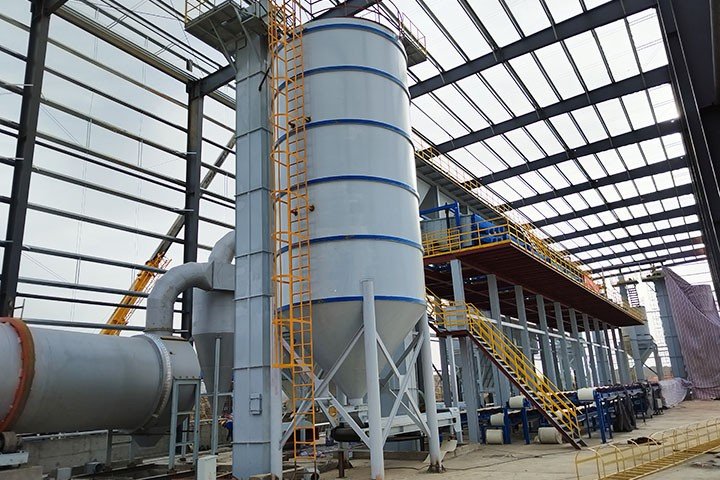

    Dewatering and Thermal Drying After deacidification rinsing, the sand is pre-dewatered to remove most free water, then sent to rotary dryers for thermal drying. Stable low moisture content is prepared for the subsequent color sorting and precision grading processes.

  • 8

    Precision Screening and Grading Fully dried silica sand is delivered to multi-layer screening equipment. Products are classified into different mesh fractions separately, to meet the different particle size requirements of quartz glass sand and quartz slab sand.

  • 9

    Color Sorting and Finished Packaging The graded sand passes through high-precision color sorters to pick out heterochromatic impurity particles. After color sorting, qualified dual-grade products are packaged separately and ready for delivery.

PROJECT RESULT

The customized combined purification flowsheet can produce both quartz glass sand and quartz slab sand simultaneously. The scheme cuts comprehensive production cost by 35% and greatly stabilizes and upgrades product quality. The comprehensive performance of this project exceeds the client’s expectations.

The whole plant runs continuously and steadily with reliable equipment performance. All beneficiation indicators and economic benefits meet design targets. Guote’s integrated EPC+O service capacity has been fully recognized by the customer.
