Fujian 3,000TPD Photovoltaic-grade Silica Sand Processing Plant

The raw feedstock is a mixture of kaolin tailings and 0–8 mm quartz sand feed. Kaolin is intergrown within fissures of quartz particles, leading to insufficient mineral liberation and challenging beneficiation performance.

To solve this problem, senior mineral processing engineer Mr. Yang Guoqing carried out site surveys and customized the overall process scheme. He selected an economical and reliable equipment combination matching the client’s on-site conditions.

GUOTE SOLUTION

  • 1

    Pre-screening and Impurity Removal: Raw material is screened to reject large debris and foreign matter before subsequent processing.

  • 2

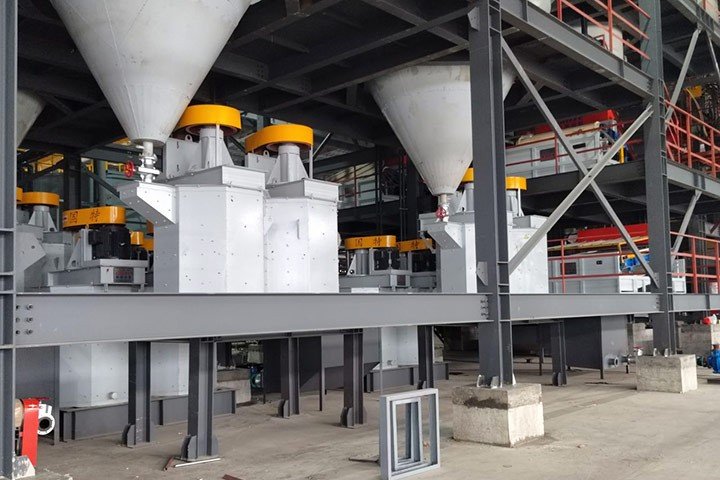

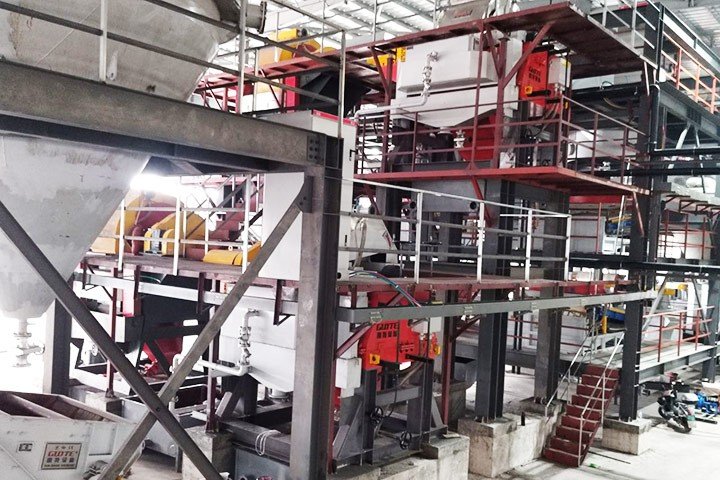

    Attrition Scrubbing: After pre-screening, the material is fed into an attrition scrubber. The scrubbed slurry flows into the slurry tank and is pumped to the desliming hopper.

  • 3

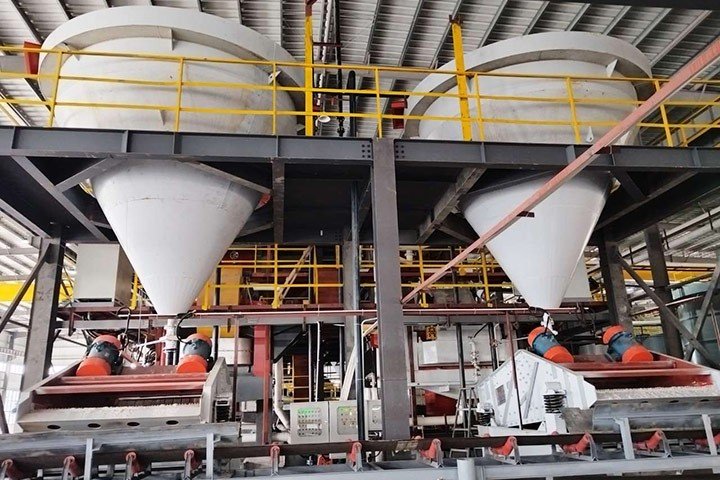

    Desliming: Fine slime impurities are separated in the desliming hopper. Slime overflow is sent to the water treatment system for sedimentation.

  • 4

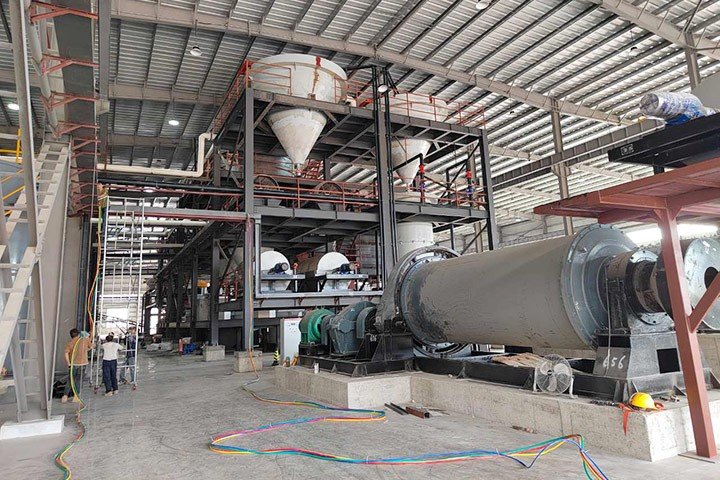

    Coarse Particle Screening and Classification: The underflow slurry from the desliming hopper enters the thickening settling tank and drum screen. Material coarser than +26 mesh is returned via pipeline to the ceramic ball mill for regrinding. Reground material flows back to the post-scrubbing slurry tank, forming a closed-circuit regrinding loop.

  • 5

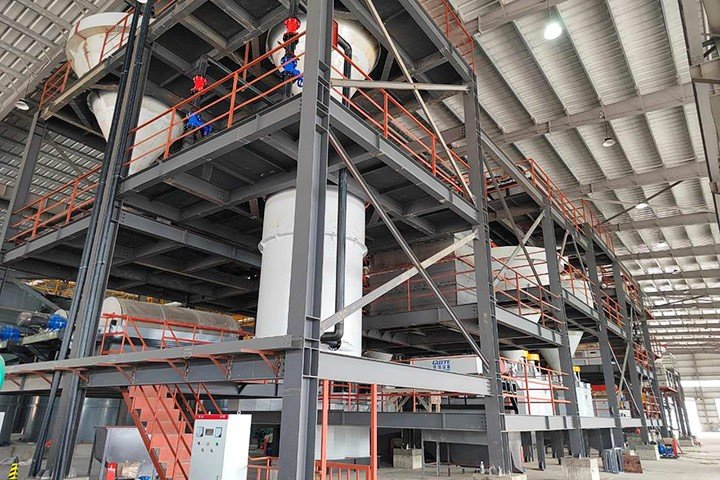

    Fine Classification and Fines Recovery: The -26 mesh overflow slurry from the settling tank is delivered to the thickening hopper and hydraulic classifier. The -150 mesh overflow of the hydraulic classifier is sent to the fine silt collection zone for dewatering.

  • 6

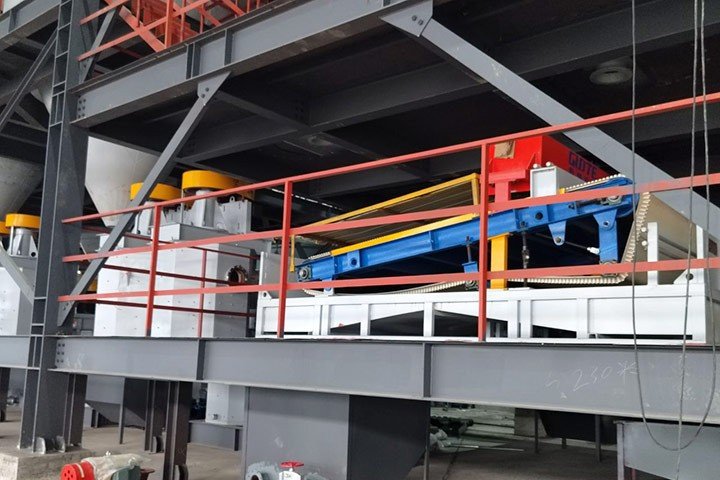

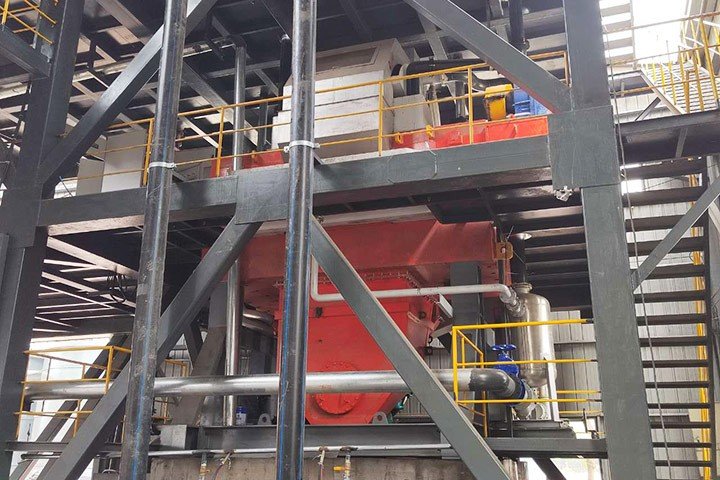

    Magnetic Separation & Purification: The 26–150 mesh qualified underflow from the hydraulic classifier first passes through medium-intensity plate magnetic separators to remove tramp iron. It then goes through high-intensity plate magnetic separators (12,000 GS) to eliminate residual tramp iron and part of weakly magnetic iron-bearing minerals. Two series-connected vertical ring high gradient magnetic separators (1.5 T) are adopted for further deep removal of weakly magnetic impurities.

  • 7

    Finished Product Dewatering and Stockpiling: After magnetic separation, the qualified slurry is pumped to the finished product processing zone. It is concentrated in the thickening hopper and dewatered by dewatering screen, then conveyed by belt to the finished stockpile area for further draining before shipment.

  • 8

    Water Recycling and Tailings Treatment: The wastewater system adopts multi-stage thickening tanks for sedimentation. Settled underflow sludge is pumped to the plate-and-frame filter press for filter pressing and water recovery. Filter cakes are generated for subsequent disposal.

PROJECT RESULT

Guote delivered full EPC services covering process design, equipment supply and site construction. The project was completed on schedule, smoothly commissioned and reached design capacity ahead of time.


The finished silica sand meets photovoltaic-grade silica sand specifications. The overall yield reaches 80–85%. With stable ore feed, the iron content of finished sand can be controlled below 100 ppm. The beneficiation index outperforms the expected target, and the product satisfies the standard for photovoltaic silica sand.
