Tanzania 1,200TPD Float Glass Sand Processing Plant Project

The raw feed is natural silica sand, characterized by high impurity loads: mud content 18–20%, oversize coarse fraction 5–10%, plus organic weeds and light debris. These contaminants would degrade iron index, turbidity and particle size distribution and make it fail float glass specifications.

In view of the raw sand properties and local site conditions, senior beneficiation engineer Wang Chaodong completed the overall layout and construction design. He selected a cost-optimized equipment combination to meet float glass sand requirements under the local infrastructure and water resource constraints.

GUOTE SOLUTION

  • 1

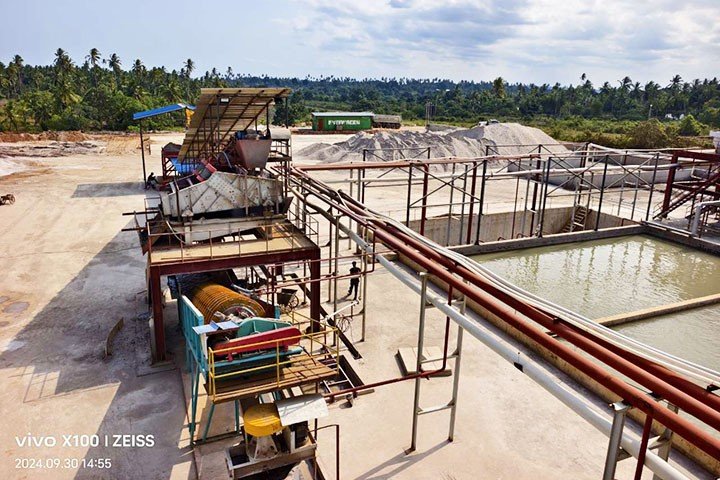

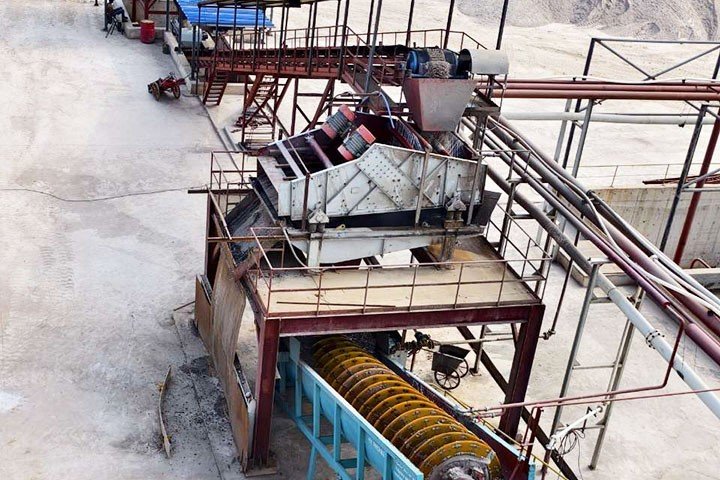

    Scrubbing and Desliming Raw sand is fed by a belt feeder equipped with weighing device onto a vibrating screen for pre-screening and trash removal to separate weeds and large light impurities. Screened sand flows into a spiral sand washer for primary washing and rough desliming. After preliminary washing, the material enters the attrition scrubber for intensive secondary scrubbing, which strips clay coatings and surface-bonded iron films from sand grains. The scrubbed slurry is pumped to the desliming hopper on the classification tower, where sand, clay slime and fine impurities are separated, lowering the feed mud content and stabilizing pulp density for downstream classification.

  • 2

    Two-stage Trommel Screening and Hydraulic Classification Deslimed pulp is delivered to a two-stage trommel screen. The +26 mesh coarse fraction is screened out and stockpiled separately as coarse reject. The qualified -26 mesh stream goes to the thickening hopper and then feeds the hydraulic classifier. The hydraulic classifier separates ultra-fine silt below 140 mesh (0.1 mm). Removing this fine fraction reduces turbidity and avoids over-fines in the final float glass sand product.

  • 3

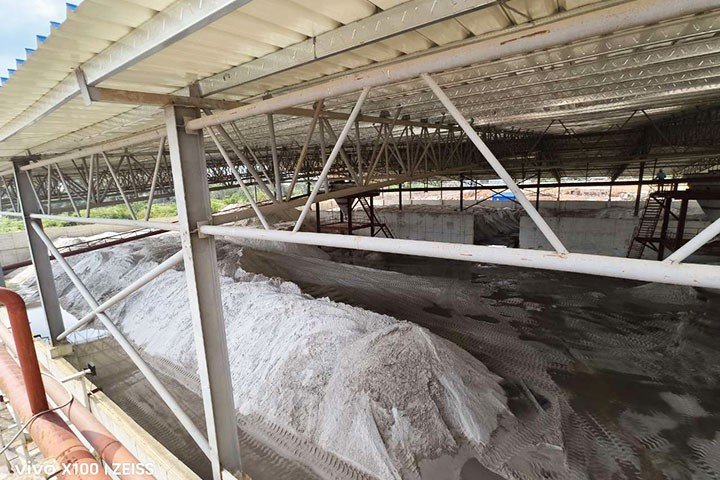

    High-intensity Magnetic Separation and Dewatering Sand with qualified particle size from trommel screening and hydraulic classification proceeds to magnetic impurity removal. A high-intensity plate magnetic separator with magnetic field of 10,000–12,000 GS is adopted to remove free iron contaminants and weakly magnetic iron-bearing minerals. After magnetic separation, clean silica sand is dewatered by dewatering screen to reduce surface moisture and then conveyed to the finished stockpile shed. All process wastewater from the whole line flows into the high-efficiency thickener tank for settling and clarification; clarified water is recycled back into the production circuit.

PROJECT RESULT

This customized flowsheet cuts comprehensive production cost by 15%, and the overall performance exceeds the client’s original expectation by 5%. Through integrated trash removal, multi-stage scrubbing, precise classification and high-intensity magnetic separation, the treated silica sand fully meets the quality standard for float glass production.

The whole plant runs continuously and steadily with reliable equipment performance. All beneficiation indicators and economic targets are achieved. Guote’s full EPC+M+O turnkey service has gained thorough recognition from the Tanzanian customer.
