500TPD Oil Fracturing Sand Processing Plant Project

The raw feedstock for this project is natural desert sand. The ore carries 10% attached slime, together with magnetic impurity minerals. These magnetic impurities will raise the acid solubility index of finished proppant, which is a key technical indicator restricting the qualification of petroleum fracturing sand.

The customer visited Guote Equipment in person, inspected our manufacturing workshop and mineral processing test laboratory, and held in-depth technical communication with our engineering team. The client highly recognized Guote’s mature beneficiation process design philosophy and precision equipment fabrication capacity, and formally signed the EPC contract for this project. This project further enriches Guote’s global portfolio of successful fracturing sand turnkey projects.

GUOTE SOLUTION

  • 1

    Two-stage Washing, Scrubbing and Desliming Raw desert sand is fed quantitatively by belt feeder equipped with weighing module and delivered to vibrating pre-screen to remove oversize debris and agglomerated mud lumps. Screened qualified sand flows into spiral sand washer for preliminary washing and coarse desliming. After pre-washing, materials are sent to attrition scrubber for intensive secondary scrubbing, stripping mud film tightly adhered to sand grain surfaces. The scrubbed slurry is pumped to the desliming cone installed on the classification tower, realizing effective separation of sand, slime and light impurities. This step lowers the mud content of feedstock and stabilizes slurry concentration for follow-up classification.

  • 2

    Hydraulic Classification for Fine Fraction Removal Deslimed sand slurry enters the hydraulic classifier. By using settling classification principle, the system separates out -140 mesh (0.1 mm) ultra-fine silt fractions in advance. Removing fine slime at this stage effectively cuts the load and energy consumption of subsequent drying and screening sections, improves the yield of target commercial grain fractions and optimizes overall economic benefits.

  • 3

    High-intensity Magnetic Separation and Pre-dehydration Sand with qualified particle size discharged from hydraulic classifier enters the magnetic separation purification station. High-intensity plate magnetic separators with magnetic field strength of 10,000–12,000 GS are adopted here, to fully eliminate free mechanical iron and most weakly magnetic impurity minerals that negatively affect acid solubility. After magnetic purification, the qualified sand is sent to dewatering screen for solid-liquid separation. Dewatered semi-finished sand is stacked in stockpile for temporary storage before drying treatment.

  • 4

    Drying and Linear Vibrating Screen Classification Stockpiled semi-finished sand is conveyed into the dryer for thermal drying to meet the moisture requirement of fracturing sand products. After drying, the sand is fed into linear vibrating screens for precision grading, sorting out different commercial grain sizes of finished frac sand.

PROJECT RESULT

After the complete process of pre-screening, two-stage washing & scrubbing, hydraulic classification, magnetic separation purification, drying and linear screening, the finished desert sand meets the standard specifications for petroleum fracturing proppant sand. The finished sand achieves lower turbidity, and the comprehensive cost is optimized. All technical indicators reach design requirements.

As an initiator and practitioner of integrated EPC mineral processing services, Guote always adheres to customer-centric principles, and continuously delivers reliable equipment, mature processes and high-standard technical services for global mineral processing clients.

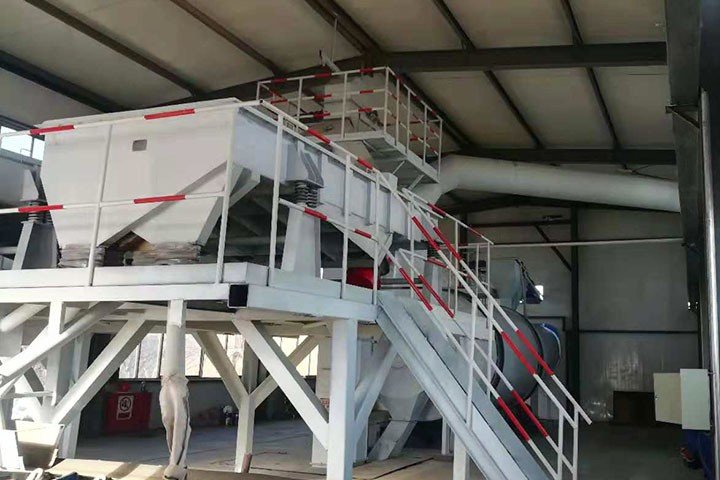

A 500TPD Oil Fracturing Sand Processing Plant

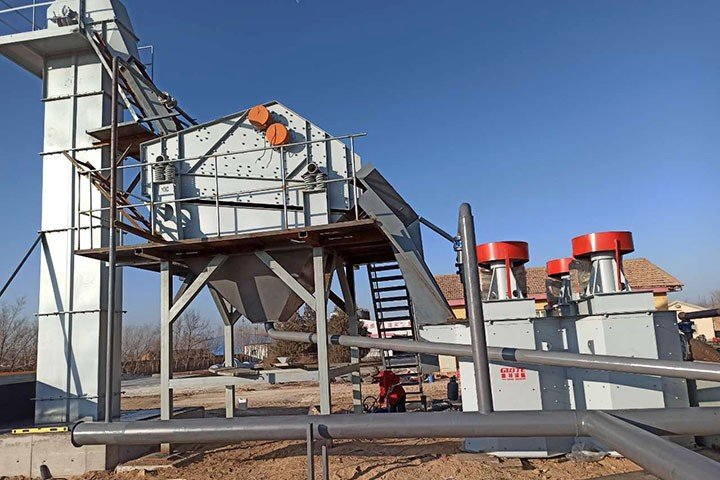

B 500TPD Oil Fracturing Sand Processing Plant

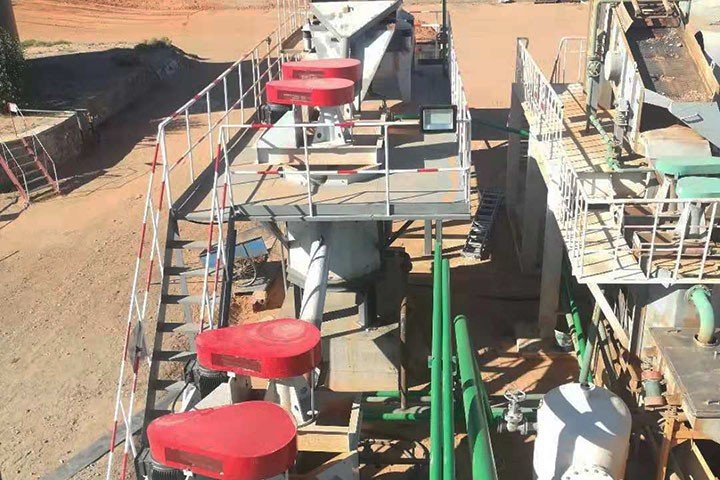

C 500TPD Oil Fracturing Sand Processing Plant
