1,000TPD Oil Fracturing Sand Processing Plant

The raw material of this project is natural aeolian sand, which is characterized by high inherent mud content. Fine slime adheres tightly to sand grains and will seriously affect the sphericity, roundness and crush resistance of finished fracturing proppant.

Combined with the mineral characteristics of aeolian sand, local water resource conditions and environmental protection requirements, Guote technical design team customized a complete EPC turnkey solution including process layout, equipment matching, production operation and technical guidance for the client. The design fully considers the special index requirements of petroleum fracturing sand, balances production efficiency, energy consumption and environmental compliance.

GUOTE SOLUTION

  • 1

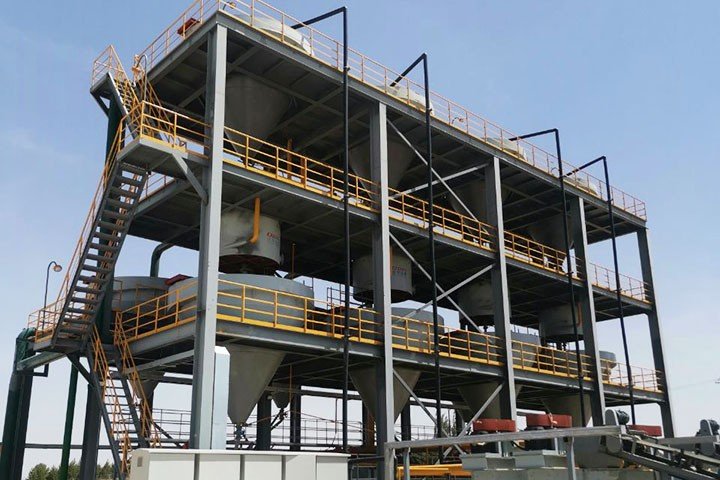

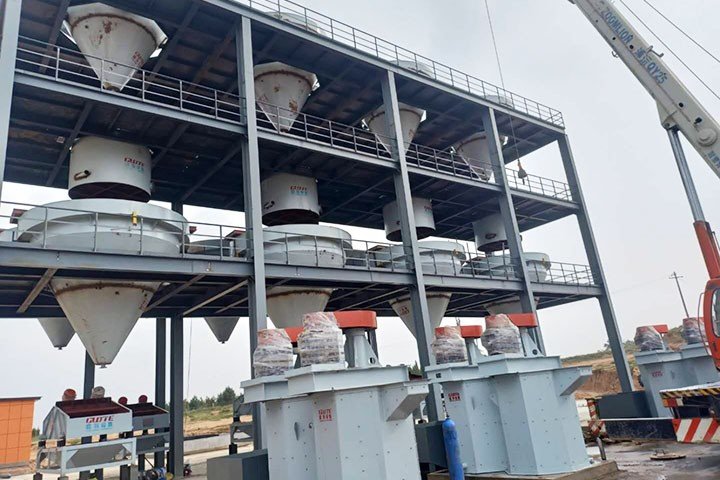

    Scrubbing and Two-stage Desliming Raw aeolian sand is fed through buffer hopper and weighing belt scale, then sent to pre-screening unit to remove oversize coarse impurities. Fine qualified sand enters the attrition scrubber for intensive scrubbing, realizing effective separation between sand grains and adhesive mud. The sand slurry flows into the slurry tank, and is pumped by slurry pump to the desliming cone on the classification tower for secondary desliming. Two-stage mud removal greatly reduces the mud content of feed material and lays the foundation for subsequent grading.

  • 2

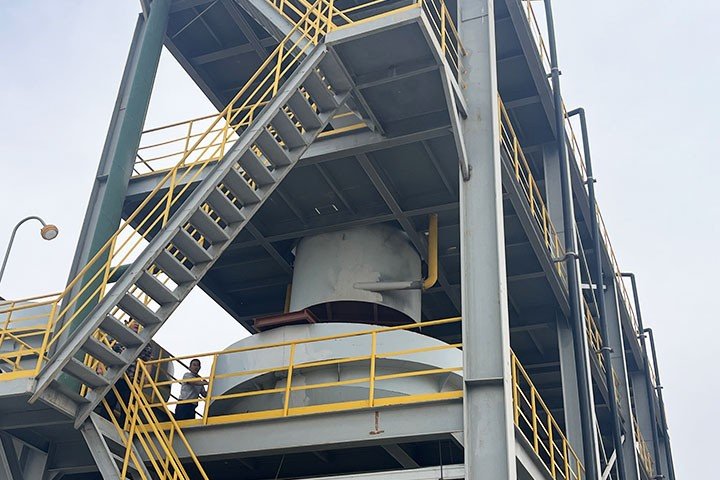

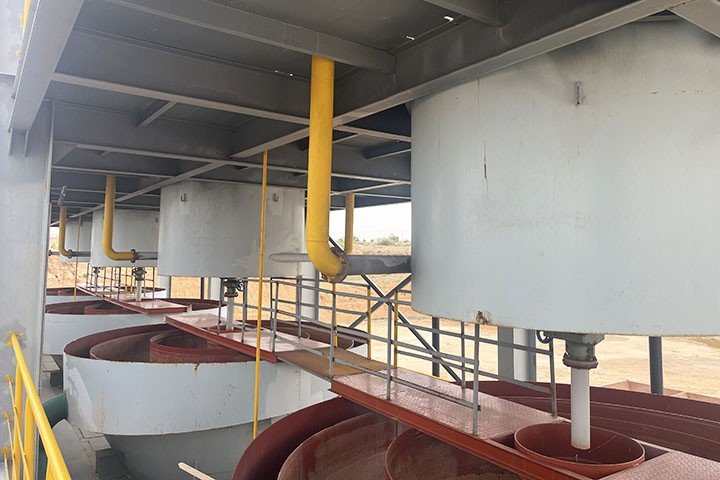

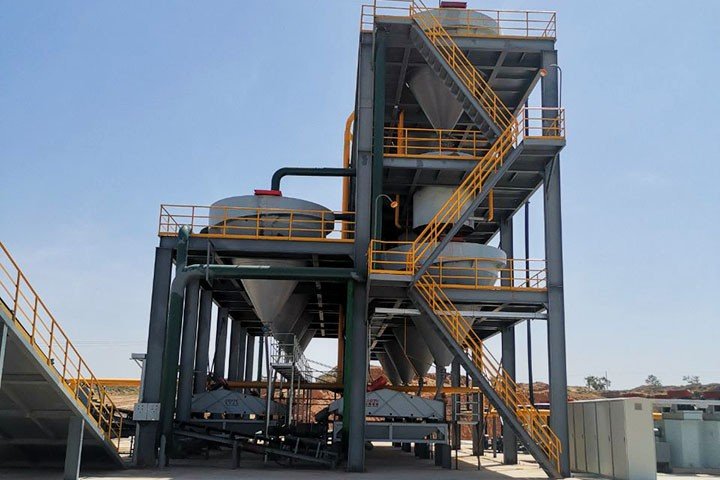

    Hydraulic Classification and Pre-dehydration Deslimed sand slurry is delivered into hydraulic classifier. Relying on settling gravity classification principle, the system separates -140 mesh fine fraction (cut point adjustable). The +140 mesh coarse sand underflow passes through concentration tank for pulp density adjustment, and then flows to dewatering screen. The dewatering screen removes most free water and realizes solid-liquid separation, obtaining +140 mesh semi-finished sand that meets preliminary particle size requirements. The semi-finished sand is stacked for natural draining, and the moisture is stabilized below 10%.

  • 3

    Thermal Drying and Multi-fraction Precision Screening Drained semi-finished sand stored in buffer silo is conveyed into rotary dryer for thermal drying until the moisture content meets the standard of fracturing sand. Dried sand is lifted by bucket elevator into buffer hopper, and then fed into linear vibrating screens for multi-grade classification. The production line can separate multiple commercial fractions: 16–20 mesh, 20–40 mesh, 30–50 mesh, 40–70 mesh and 70–140 mesh. After inspection, qualified frac sand of each grain size is sent to packaging station for automatic packaging as finished products.

PROJECT RESULT

This optimized process effectively cuts comprehensive production cost by 10%, and the overall project performance exceeds the client’s expectations.

Through the integrated process of pre-screening, scrubbing & two-stage desliming, hydraulic classification, dewatering, drying and precision screening, natural aeolian sand raw material is processed into qualified petroleum fracturing proppant sand, satisfying the industry standards for frac sand.

Guote formulated the scheme in strict accordance with relevant proppant specifications. The plant layout is rationally optimized to lower investment and shorten construction cycle. Energy-efficient equipment and mature, stable process flow deliver reliable production capacity and product consistency, which earns high recognition from the customer.
