500TPD Oil Fracturing Sand Processing Plant in Pakistan

The client’s feedstock is natural aeolian sand, containing 10% mud, 5–10% oversize coarse fraction and 3–5% fine washed sand.

Frac sand has strict requirements on turbidity, roundness and grain size distribution. Guote’s engineering team carried out ore test analysis and process optimization in advance. Throughout the whole project implementation, our technical team strictly follows industry technical specifications, covering process design, equipment fabrication, site installation and commissioning, to guarantee stable and reliable operation of the whole line.

GUOTE SOLUTION

  • 1

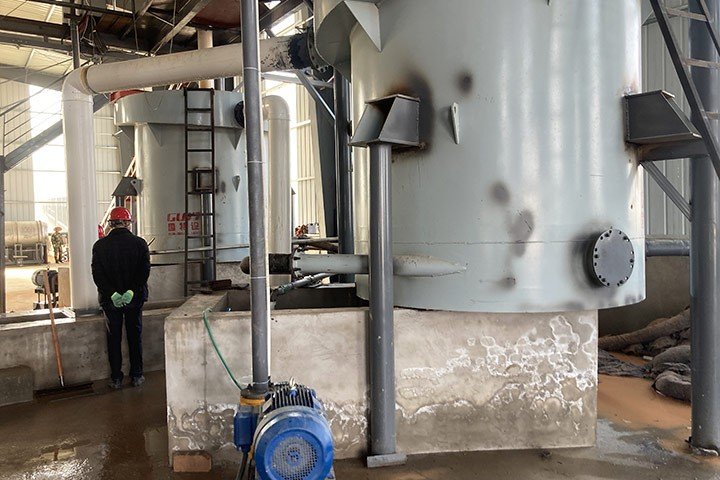

    Scrubbing and Desludging: Raw sand is delivered by a belt feeder equipped with a weighing unit to the vibrating pre-screen for removing large impurities. The undersize material flows into the spiral ore washer for primary washing and mud removal. After preliminary washing, the sand enters the attrition scrubber for intensive secondary scrubbing to strip surface clay coatings. The scrubbed slurry is pumped to the desliming hopper of the classification tower for further mud-sand separation, lowering the mud content of the feed and adjusting slurry concentration for the next stage.

  • 2

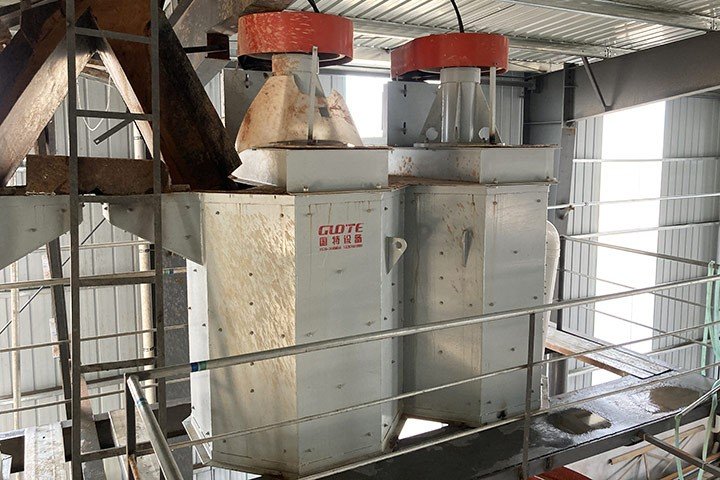

    Hydraulic Classification: Deslimed sand is fed into the hydraulic classifier to separate fine fractions finer than 140 mesh (0.1 mm). Removing ultra-fine slimes ahead of drying effectively cuts heat consumption for drying, reduces equipment load and improves the yield of target frac sand products.

  • 3

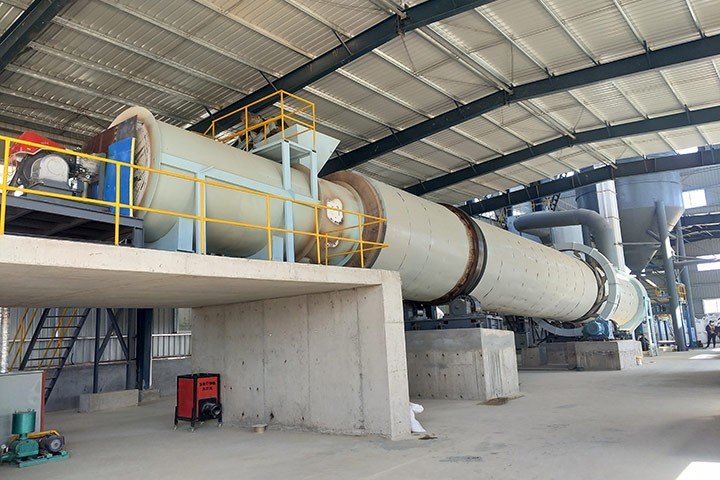

    Dewatering, Drying and Sizing: Sand from classification is dewatered by the dewatering screen first to remove free surface water. The damp sand is then sent to Guote special sand dryer for continuous high-efficiency drying. After drying, the material goes into the multi-deck linear sizing screen to separate required product grades. Qualified frac sand is conveyed to finished product silos for packaging and stockpiling.

PROJECT RESULT

The whole production line is equipped with an integrated intelligent control system. Guote supplies full-set automation solutions including automatic control design, customized control hardware, central PLC control system and on-site video monitoring. It realizes synchronous linkage and optimized regulation of all processing sections, stabilizes product quality and greatly boosts overall production efficiency.

A 500TPD Oil Fracturing Sand Processing Plant
B 500TPD Oil Fracturing Sand Processing Plant
C 500TPD Oil Fracturing Sand Processing Plant
