Heilongjiang 500TPD Petroleum Proppant Processing Plant

The client’s raw material is natural aeolian sand, containing 15–20% slime, approximately 1% rock fragments, 3–5% oversize coarse sand, and residual plant root impurities. These contaminants adversely affect the sphericity, turbidity and crush resistance of finished proppant, which are critical quality indicators for petroleum fracturing sand.

Guote senior mineral processing engineers carried out repeated site surveys, multi-point ore sampling and laboratory scrubbing & desliming tests. Combined with frac sand industry quality standards, the engineering team analyzed test data, optimized process routes and equipment configuration iteratively. A simplified, stable and high-efficiency beneficiation scheme was customized to satisfy strict petroleum proppant specifications. Guote delivered full services including process design, equipment supply, layout planning, installation guidance and commissioning.

GUOTE SOLUTION

  • 1

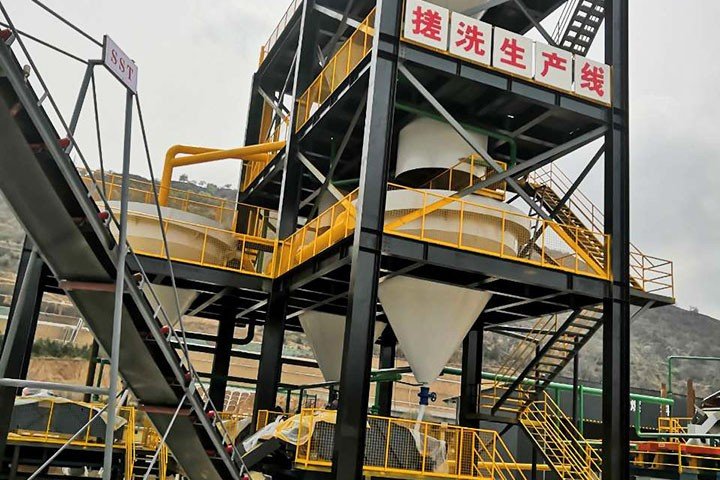

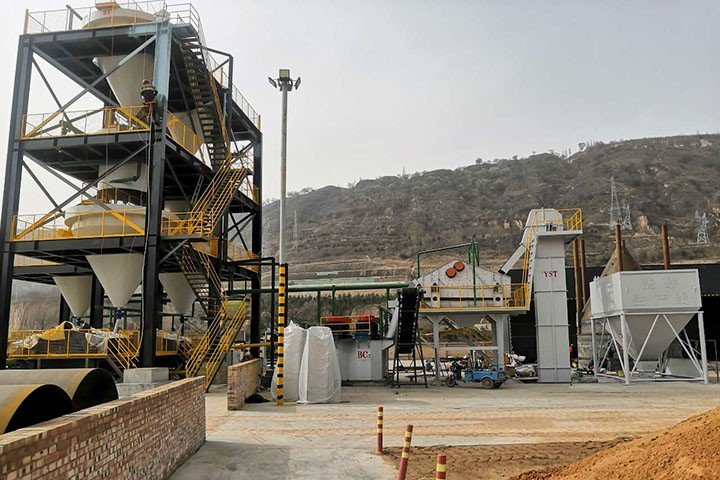

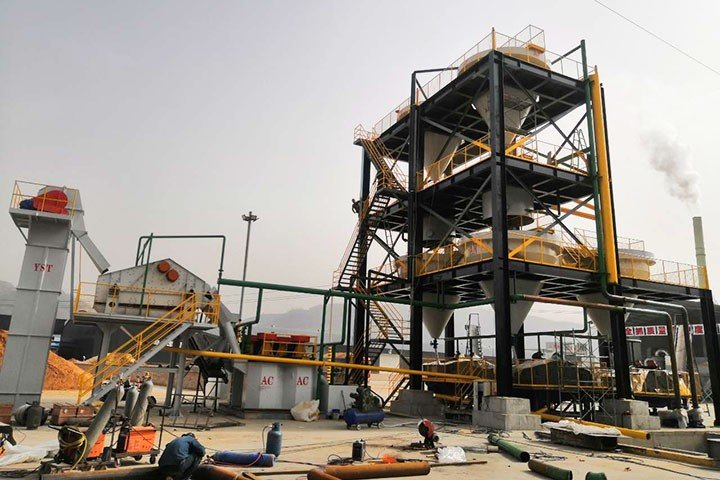

    Pre-screening, Scrubbing, Desliming and Hydraulic Classification: Raw sand is fed uniformly from the buffer hopper via a feeder to the pre-vibrating screen, which removes rock fragments and oversized coarse sand to lower the load of downstream equipment. Fine qualified sand flows into the attrition scrubber for high-shear scrubbing to break up agglomerated mud and separate clay from sand grains. The scrubbed slurry overflows into the slurry tank, then is pumped to the desliming cone on the classification tower for deep desliming, effectively cutting the slime content of sand feed.

  • 2

    Drying: Drained semi-finished sand is conveyed into a buffer silo, then transported by belt conveyor into the rotary dryer. Controlled hot air drying is adopted to reduce sand moisture steadily to the target value required by frac sand standards, avoiding excessive drying and dust loss.

  • 3

    Final Size Grading by Linear Screen: Dried sand is lifted by bucket elevator into a buffer hopper and fed into linear vibrating screen for precise size classification. The production line is configured to separate multiple commercial fractions: 16–20 mesh, 20–40 mesh, 40–70 mesh, 30–50 mesh and 70–140 mesh. Sized qualified proppant is conveyed to packaging station and packed into ton bags for storage and shipment.

PROJECT RESULT

The complete flowsheet of pre-screening, high-shear scrubbing, deep desliming, hydraulic classification, drying and accurate final screening removes slime, debris and root impurities efficiently. Finished products fully comply with petroleum proppant technical requirements on grain size distribution, turbidity and sphericity.


The plant has been running continuously and stably after commissioning. Production capacity, product qualification rate and economic benefits all meet the client’s design expectation. The customer issued an appreciation letter to Guote, highly recognizing the rigorous site supervision, professional technical capability and strong sense of responsibility of Guote technical engineers. The client looks forward to deeper long-term cooperation with Guote for more win-win projects in the future.
