Large Silica Sand Washing Processing Plant Project in Egypt

The client's raw ore is natural silica sand, featuring a mud content of 5–10%, fine sand fraction of 3–5%, and a large quantity of plant roots and weeds mixed in. These impurities negatively affect the quality of finished silica sand.

Guote undertook this large-scale silica sand washing plant as a full EPC project. Our scope covers mineral processing test, process R&D, engineering design, complete equipment manufacturing and procurement, site installation guidance, commissioning and handover.

GUOTE SOLUTION

  • 1

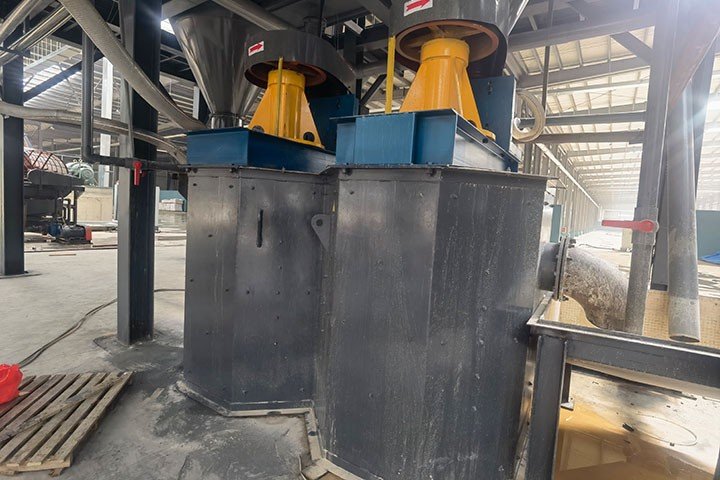

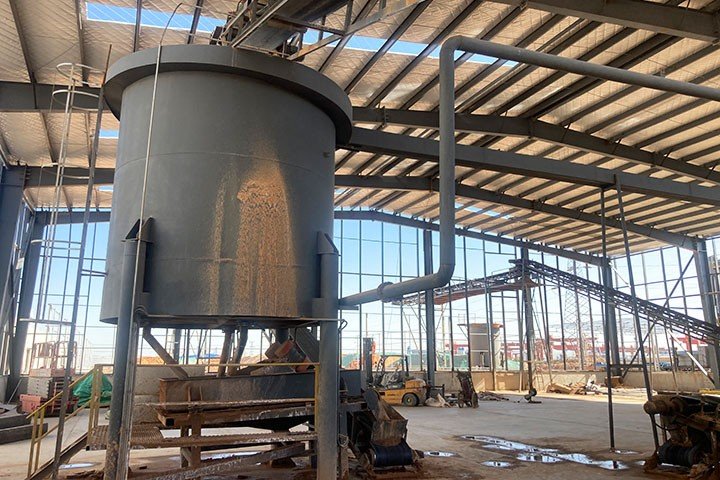

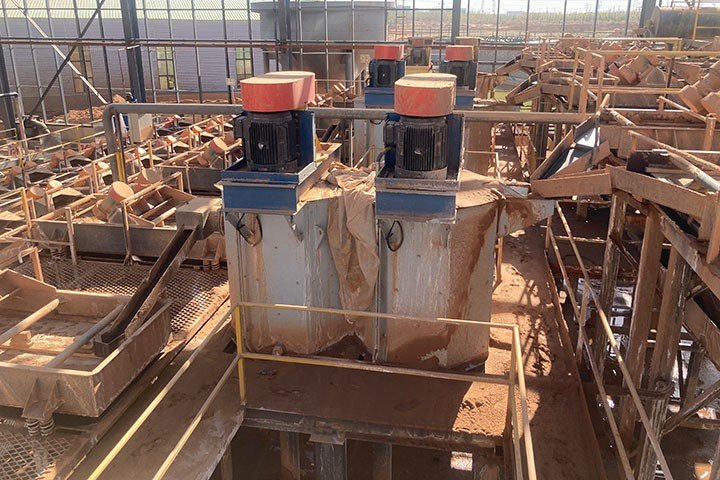

    Scrubbing and Desludging: The material is fed via a belt feeder fitted with a weighing device into a vibrating screen for preliminary impurity removal. The undersized material flows into the spiral ore washer for primary washing and desliming. After initial washing, the sand enters the scrubbing machine for high-intensity secondary scrubbing to strip surface clay films. The scrubbed slurry is pumped into the desludging hopper of the grading tower, where sand, slime and light impurities are separated. This step effectively lowers the mud content of raw sand and stabilizes slurry concentration for subsequent processing.

  • 2

    Screening and Classification: The pre-deslimed material goes into the drum screen for two-stage screening. Oversize material above 26 mesh is classified as coarse sand and conveyed to the coarse sand stockyard. Material finer than 26 mesh flows into the thickening hopper and hydraulic classifier, which separates ultra-fine fractions below 140 mesh (0.1 mm) to control the finished particle size distribution.

  • 3

    Magnetic Separation and Dewatering: Material meeting the target particle size from the classification section proceeds to magnetic separation. A plate magnetic separator with magnetic field strength of 10,000–12,000 GS is adopted to remove mechanical iron and weakly magnetic iron-bearing minerals, which is the core step to stabilize the iron index of silica sand. After magnetic separation, qualified silica sand is sent to dewatering screen for dewatering before delivery to the finished product shed. All process wastewater from the whole line is collected and sent to the thickener for sedimentation and purification, then recycled for production to realize zero liquid discharge.

PROJECT RESULT

After installation and commissioning, the whole production line runs continuously with stable performance and reliable output. The project is implemented in compliance with international design, fabrication and construction standards. Guote optimizes the scheme to control overall investment and boost production efficiency for investors. Meanwhile, the process design prioritizes occupational health and safety for on-site operators, environmental protection, closed-loop water recycling, and energy saving of single equipment and the whole system. The full-flow process ensures stable qualified sand recovery and consistent finished product quality.
