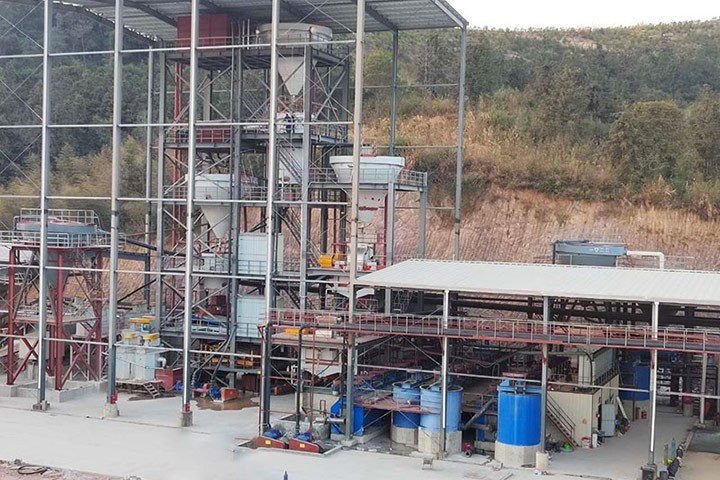

1,500TPD Quartz Glass Sand Processing Plant Project

The raw ore is vein quartz, cyan with white inclusions and dominated by quartz. Fe₂O₃ and Al₂O₃ impurity films grow along mineral fissures. Raw ore assay: Si content 98.4%, Al₂O₃ 1.04%, TiO₂ 0.098%, where aluminum and titanium levels exceed the target specification for glass-grade silica sand. Multiple laboratory tests confirmed that upgrading silicon content and reducing aluminum posed major technical challenges.

To solve this problem, senior mineral processing engineer Yang Guoqing personally completed the process layout and engineering design according to site conditions, and optimized the equipment combination to deliver a cost-effective solution for the client.

GUOTE SOLUTION

  • 1

    Crushing: Raw lump ore is crushed to particle size below 3 cm by jaw crusher and cone crusher. The crushed material is stored in a buffer silo, then fed quantitatively by feeder and belt conveyor to the milling system.

  • 2

    Sand Making and Screening: The mill grinds crushed material into sand slurry. Discharge flows to the post-grinding screen with 2–3 mm aperture. Undersize material enters the slurry tank; oversize coarse fraction is returned to the mill via return conveyor for closed-circuit re-grinding.

  • 3

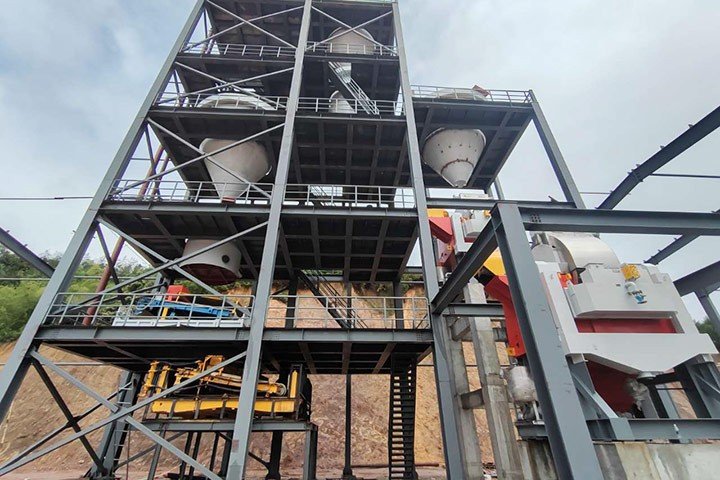

    Scrubbing and Desludging: Slurry from the tank is pumped into the attrition scrubber. Intensive mechanical friction and shear action strip colloidal slime, surface iron and aluminum oxide films on quartz grains. The scrubbed slurry is then delivered to the desludging hopper on the grading tower for sand-slime separation. This step reduces mud content and stabilizes slurry concentration for downstream classification.

  • 4

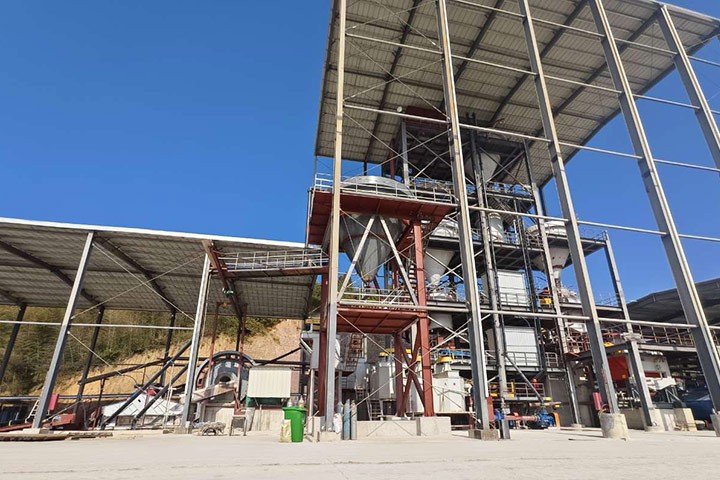

    Classification: After desludging, the material enters the hindered settler. Coarse particles larger than 26 mesh (adjustable) are separated and sent back to the mill for re-grinding. A safety screen is installed on the hindered settler to block foreign debris and improve classification accuracy. Material finer than 26 mesh feeds into the hydraulic classifier to remove ultra-fine fractions below 140 mesh. Outputs from both the hindered settler and hydraulic classifier are qualified in particle size for subsequent purification.

  • 5

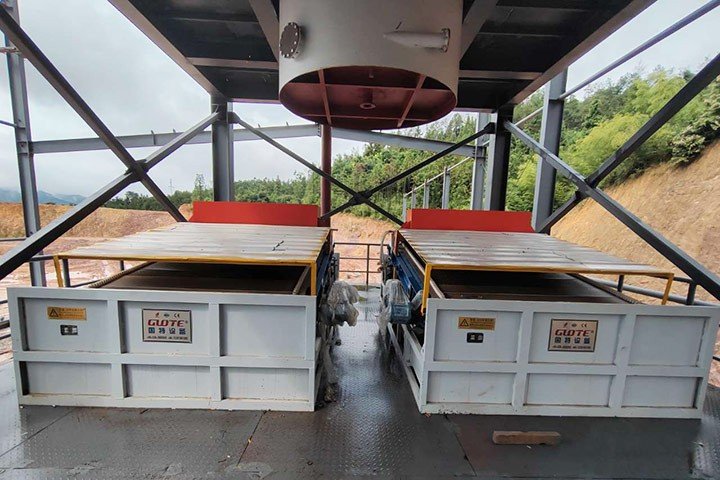

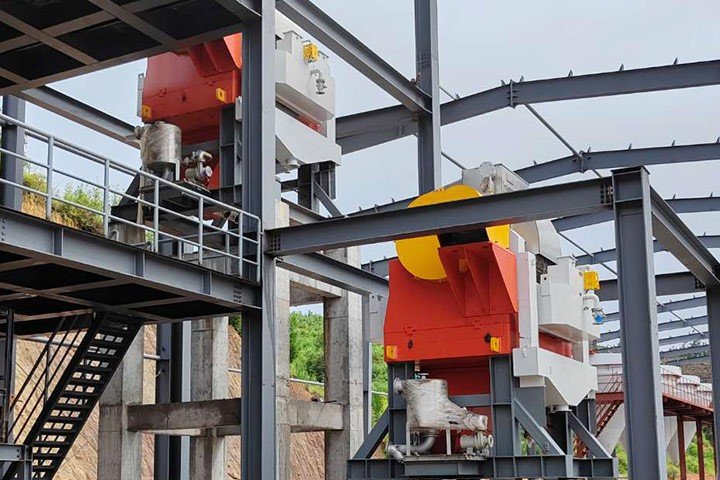

    Multi-stage Magnetic Separation for Iron Removal: Sized qualified sand firstly passes through a medium-intensity plate magnetic separator (4000–4500 GS) to remove free mechanical iron. Next, it enters a high-intensity plate magnetic separator (12000–13000 GS) to remove most weakly magnetic iron-bearing minerals. Two vertical ring high-gradient electromagnetic magnetic separators (1.4 T) are arranged in series for deep purification to eliminate trace weakly magnetic iron impurities.

  • 6

    Dewatering: After multi-stage magnetic separation, the qualified silica sand slurry is fed to the dewatering screen for surface moisture reduction. The dewatered sand is transported by belt conveyor to the finished product area for stockpiling.

  • 7

    Water Circulation and Tailings Treatment: A central thickener collects wastewater from all wet sections. Sludge settles at the bottom, and clear supernatant is recycled back to the wet grinding circuit. Settled underflow sludge is pumped to filter press or ceramic filter for solid-liquid separation. The dewatered filter cake is conveyed to the stock shed. Recovered fine sand is concentrated separately and collected as secondary sand by-product.

  • 8

    Product Output & Environmental Design: The whole line produces qualified silica concentrate, secondary fine sand and dry filter cake. The production system adopts closed water circulation with nearly zero wastewater discharge, only a small volume of makeup water is required.

PROJECT RESULT

Phase I finished silica sand index: Si ≥99.2%, Al₂O₃ 0.25–0.3%, Fe 120 ppm. The purification performance exceeded the client’s expectation, and the final product fully meets the standard of glass-grade silica concentrate.


During design, Guote fully considered site geography, geology, topography and climate conditions of the beneficiation plant. The scheme prioritizes energy saving, comprehensive resource utilization, low capital investment, short construction cycle and fast return on investment. It guarantees long-term, safe and stable operation of the beneficiation line and continuous supply of qualified glass silica sand.

A 1,500TPD Quartz Glass Sand Processing Plant Project
B 1,500TPD Quartz Glass Sand Processing Plant Project
C 1,500TPD Quartz Glass Sand Processing Plant Project
D 1,500TPD Quartz Glass Sand Processing Plant Project

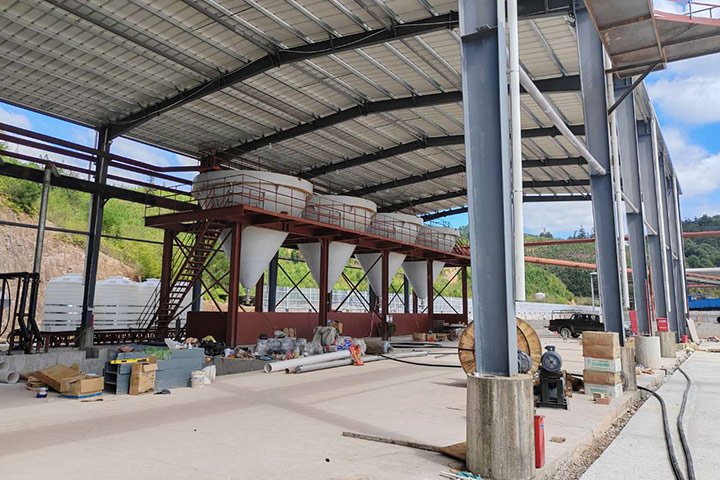

E 1,500TPD Quartz Glass Sand Processing Plant Project
