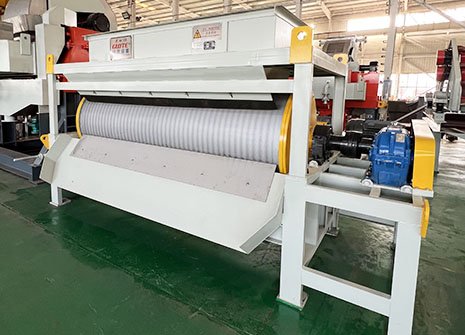

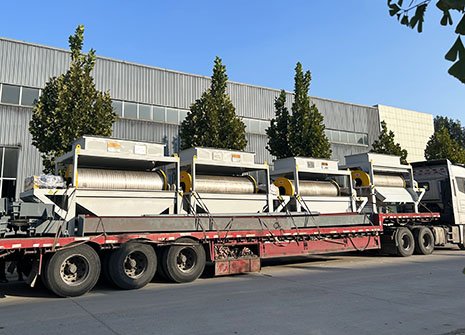

Dry High Intensity Magnetic Drum Separator is designed for the magnetic separation of dry materials with a moisture content below 5%. It serves as a core piece of equipment in mineral processing production lines, combining high efficiency, environmental friendliness, and cost-effectiveness.

Guote's dry drum magnetic separators can be customized based on material characteristics and processing capacity to meet specific production requirements, while simultaneously helping clients reduce separation costs.

It is suitable for processing strongly magnetic minerals such as magnetite and ilmenite, weakly magnetic minerals like hematite and manganese ore, industrial solid waste including steel slag and fly ash, as well as non-metallic purification applications for quartz sand and ceramic raw materials.

CHAT

MESSAGE

ADVANTAGES

1.Uniform Feeding: Equipped with a material leveling device and vibrating feed structure, it forms a uniform thin layer of material on the drum surface. This ensures stable separation and optimal beneficiation results.

2.High Magnetic Field Strength: The magnetic system utilizes high-quality ferrite or a composite structure with rare earth magnets, achieving a maximum magnetic field intensity of 12,000 Gauss, delivering superior separation performance.

3.Adjustable Separation: The splitter features a movable structure, allowing for precise adjustment of concentrate and tailings indices to meet specific requirements for grade and yield.

4.Wear-Resistant & Durable: The drum surface can be lined with stainless steel or ceramic layers for excellent wear and impact resistance. Magnetic blocks are secured with a dual-fixing method (adhesive + bolts) to prevent falling off and demagnetization.

5.Eco-Friendly & Energy-Efficient: A fully enclosed dust-proof structure is available to prevent dust leakage. With customizable capacities ranging from 30–200 t/h, it is particularly suitable for arid and water-scarce regions.

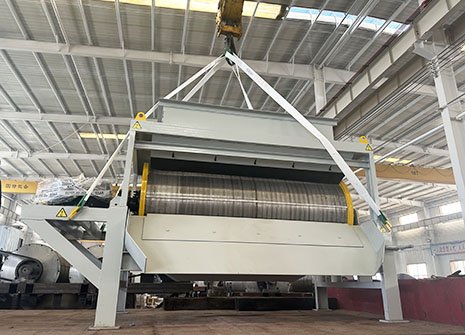

PRODUCT STRUCTURE

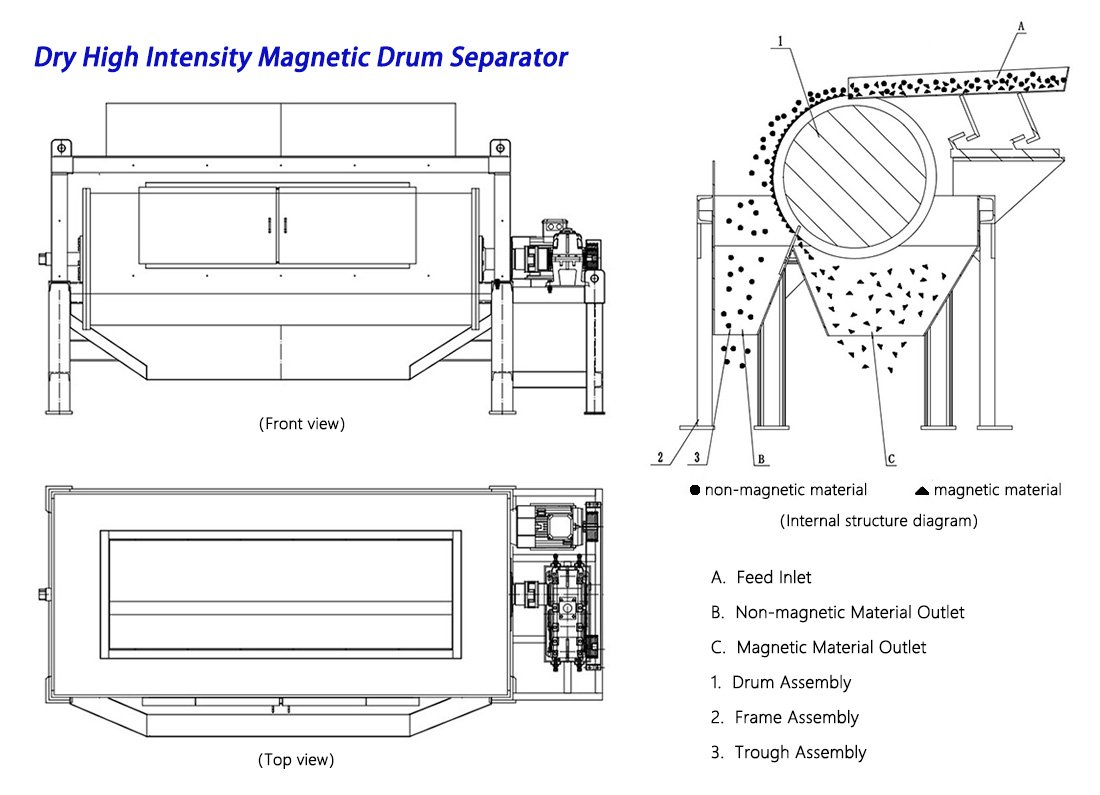

Dry materials (with moisture content < 5%) are evenly distributed onto the surface of the rotating drum via a vibrating feeder. Magnetic minerals are captured by the strong magnetic force and carried along with the drum's rotation; they fall off by gravity once they reach the non-magnetic zone. Non-magnetic materials, unaffected by the magnetic field, drop directly into the non-magnetic discharge chute.The magnetic system features an alternating N/S pole arrangement. This design causes the material to roll and tumble on the drum surface, effectively stripping away trapped impurities. This achieves efficient separation of magnetic and non-magnetic substances. As the entire process requires no water, this machine stands as a core piece of equipment in mineral processing production lines.

TECHNICAL PARAMETERS

Model	Drum Diameter (mm)	Drum Length (mm)	Magnetic Induction Intensity (GS)	Feed Particle Size (mm)	Processing Capacity (t/h)	Motor Power (kW)
GCT-0615	600	1500	12000	≤3	30-40	5.5
GCT-0622	600	2200	12000	≤3	50-70	7.5
GCT-7521	750	2100	12000	≤3	40-50	7.5
GCT-0924	900	2400	12000	≤3	50-80	11
GCT-1021	1000	2100	12000	≤3	40-60	11
GCT-1024	1000	2400	12000	≤3	60-80	11
GCT-1030	1000	3000	12000	≤3	80-100	15
GCT-1230	1200	3000	12000	≤3	100-120	18.5

SUCCESSFUL CASE

Congo Quartz Pickling And Plate Sand Processing Plant

Kazakhstan 1,000t/d Oil Fracturing Sand Processing Plant

Inner Mongolia 800t/d Oil Fracturing Sand Processing Plant
