800TPD Fracturing Sand Processing Plant in Ningxia

The raw ore of this project is natural desert sand, with an initial mud content of 10%. Magnetic impurities mixed in the sand would raise the acid solubility value and fail to meet fracturing sand specifications. This was the core challenge for the client.

The client turned to Guote for a full EPC beneficiation plant solution. Guote delivered integrated engineering design covering process, civil works, electrical system, water supply and drainage. After in-depth technical communication, the client recognized the advantages of Guote’s high-efficiency low-consumption scrubbing & desliming system, and finally signed the cooperation agreement with Guote to build the whole production line.

GUOTE SOLUTION

  • 1

    Scrubbing and Desludging Raw material is fed by a belt feeder with weighing function onto a vibrating screen for pre-screening. Screened material flows into a spiral ore washer for primary washing and desliming. After preliminary washing, the material enters a scrubber for secondary high-shear scrubbing. The scrubbed slurry is pumped to the desliming hopper on the grading tower to separate sand, slime and impurities, effectively reducing raw mud content and stabilizing slurry concentration.

  • 2

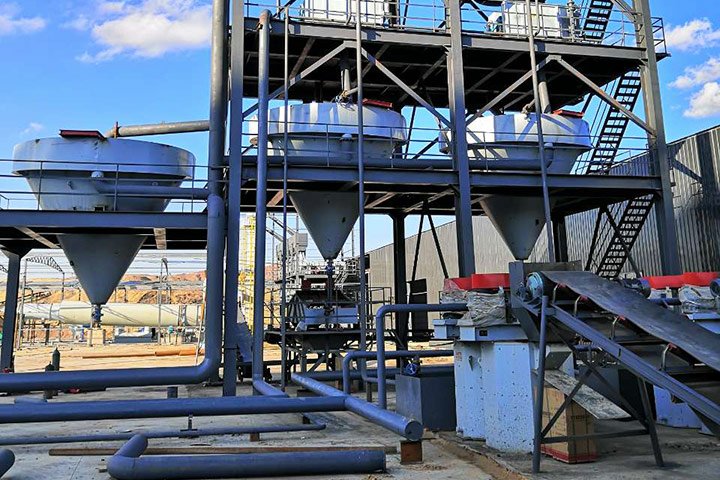

    Screening and Hydraulic Classification Deslimed material is delivered to the hydraulic classifier, which separates fine silt below 140 mesh (0.1 mm). Removing fine silt in advance cuts the energy consumption of downstream drying and screening and improves the product yield.

  • 3

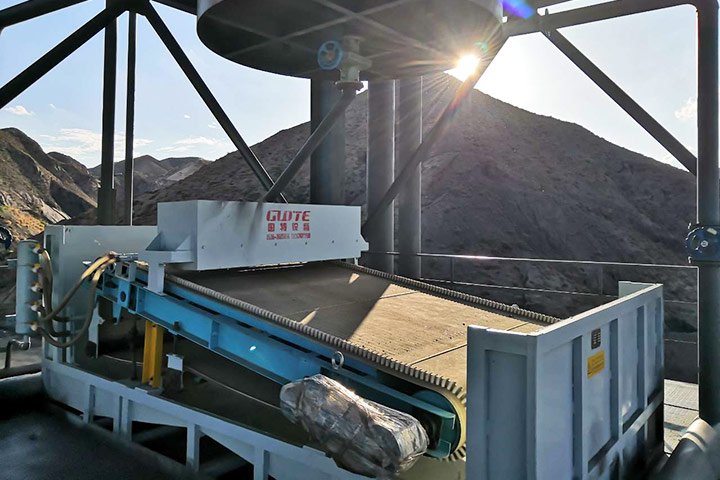

    Magnetic Separation and Dewatering Material with qualified particle size from hydraulic classification goes to the magnetic separation stage. A plate magnetic separator with magnetic field strength of 10,000–12,000 GS is adopted to remove all iron contaminants and part of weakly magnetic minerals. The qualified sand is then dewatered by dewatering screen and conveyed to the stockpile shed, waiting for drying treatment.

PROJECT RESULT

The finished fracturing sand achieves lower turbidity, and the cost of subsequent drying and screening is greatly reduced. Final product indicators fully satisfy fracturing sand standards.

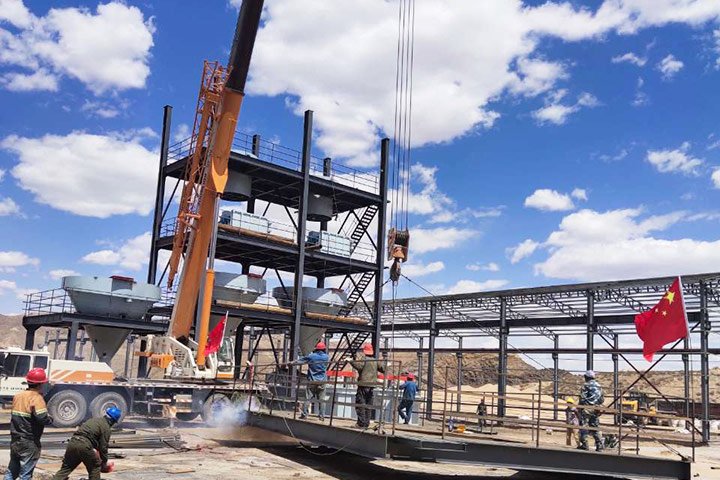

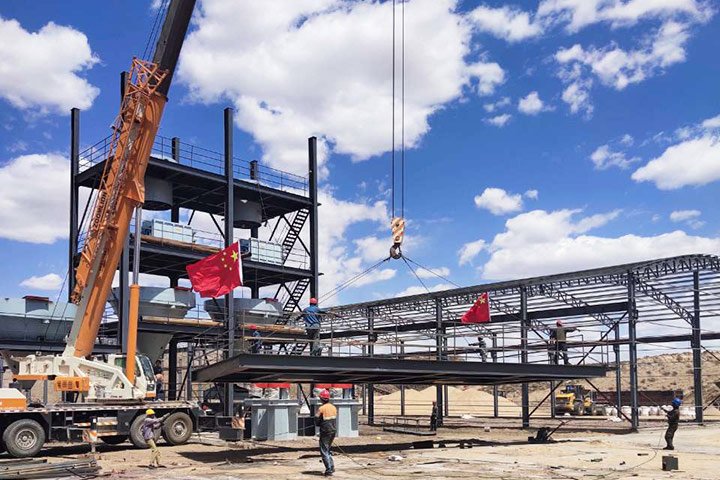

This project features high construction efficiency, short schedule and fast commissioning. The production line runs continuously, stably and efficiently after handover and has been successfully put into commercial operation. It is solid proof of Guote’s professional EPC capability and another successful reference case.
