Rotary Trommel Screen

The trommel screen is a non-vibratory screening equipment. Its core component is a cylindrical screen drum installed at an inclination of 3° to 6°, which is driven by an electric motor combined with a reducer.

Operating on the principle of rolling conveyance, this equipment is highly adaptable to high-moisture, highly sticky, and impurity-containing materials. Featuring a simple structure and large processing capacity, it is suitable for screening both dry and wet materials.

This equipment is capable of particle size classification for various solid materials. It is widely used in mining and coal, building materials and sand making, chemical and metallurgical industries, as well as environmental protection sectors. It is highly adaptable to a diverse range of materials, including quartz sand, raw coal, sand and gravel aggregates, gypsum powder, and domestic waste.

CHAT

MESSAGE

ADVANTAGES

1.Strong Anti-blinding Capability: The tumbling motion of the material, combined with a comb-type cleaning mechanism, effectively prevents screen blinding (especially for high-moisture and sticky materials).

2.Energy Saving & Eco-friendly: Power consumption is only 1/2 to 1/3 of that used by vibratory screens, and it operates with low noise.

3.Easy Maintenance: The modular screen design allows for quick and easy replacement. The full-shaft structure ensures stable operation with fewer wearing parts.

4.High Adaptability & Flexibility: Fully enclosed or open structures can be customized with various screen combinations. It also offers flexible feeding options (e.g., belt conveyors, hoppers).

5.Smart Design: A buffer drum is integrated to significantly reduce the impact when materials enter the screening surface.

PRODUCT STRUCTURE

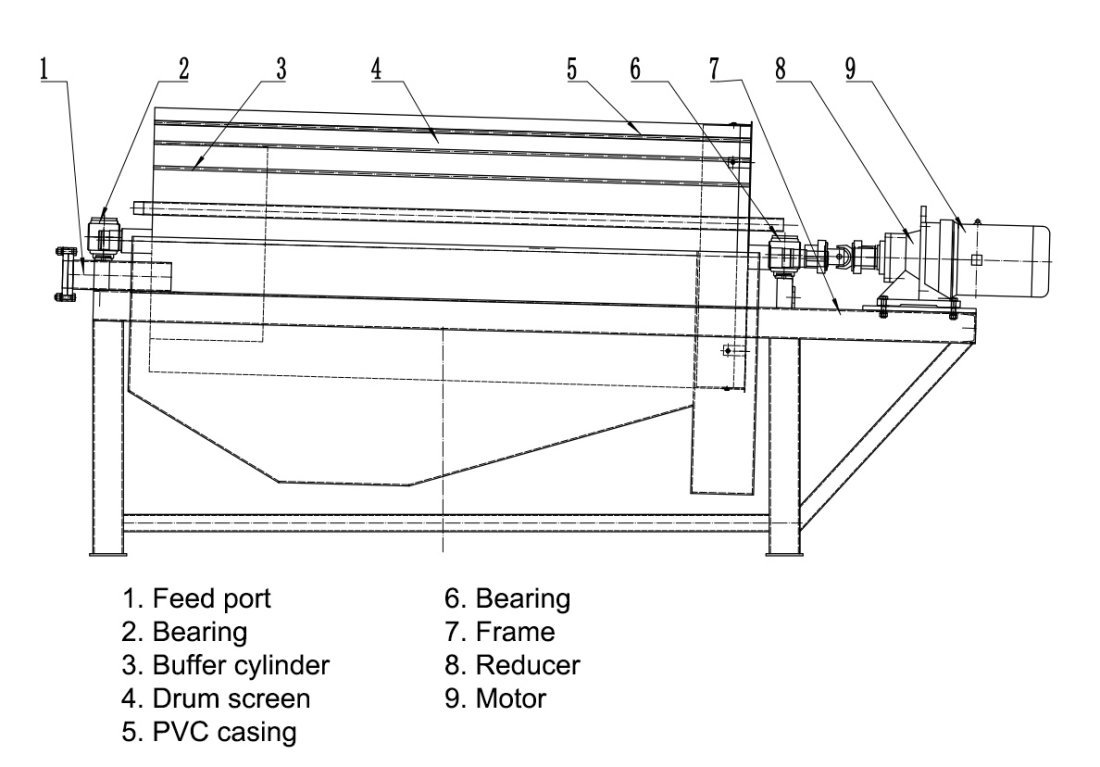

After entering the trommel device, the raw material first falls into the buffer drum. Driven by the inclination and rotation of the trommel, the material is evenly scattered onto the screen surface. Through continuous tumbling and rolling, the material moves toward the discharge end under the force of gravity. Particles smaller than the screen apertures (undersize) fall through the screen into the collection hopper, while particles larger than the apertures (oversize) are discharged through the coarse material outlet at the end of the trommel.

The tumbling and rolling motion of the material inside the drum effectively dislodges particles trapped in the screen apertures, preventing screen blinding. Additionally, a comb-type cleaning mechanism continuously cleans the screen surface in real time, ensuring continuous and highly efficient screening.

TECHNICAL PARAMETERS

Model	Cylinder size (m)	Cylinder inclination	Cylinder speed (rpm)	Sieve hole size (mm)	Maximum feed particle size (mm)	Output (m³/h)		Motor power (kw)
Model	Cylinder size (m)	Cylinder inclination	Cylinder speed (rpm)	Sieve hole size (mm)	Maximum feed particle size (mm)	Sieve hole 2mm	Sieve hole 20mm	Motor power (kw)
GTS-820	Φ0.8X2	6°	32	2-20	Mesh size X2.5	7	30	3
GTS-830	Φ0.8X3	6°	32	2-20	Mesh size X2.5	8	50	3
GTS-1030	Φ1X3	6°	25	2-20	Mesh size X2.5	10	60	4
GTS-1040	Φ1X4	6°	25	2-20	Mesh size X2.5	11	80	4
GTS-1230	Φ1.2X3	6°	20	2-20	Mesh size X2.5	12	100	5.5
GTS-1240	Φ1.2X4	6°	20	2-20	Mesh size X2.5	14	120	5.5
GTS-1250	Φ1.2X5	6°	20	2-20	Mesh size X2.5	15	150	5.5
GTS-1530	Φ1.5X3	6°	17	2-20	Mesh size X2.5	16	120	5.5
GTS-1540	Φ1.5X4	6°	17	2-20	Mesh size X2.5	18	150	7.5
GTS-1550	Φ1.5X5	6°	17	2-20	Mesh size X2.5	20	180	11
GTS-1560	Φ1.5X6	6°	17	2-20	Mesh size X2.5	22	200	11

SUCCESSFUL CASE

Malaysia 600t/d Photovoltaic Sand Processing Plant

Philippines 500t/d Oil Fracturing Sand Processing Plant

Heilongjiang 500t/d Petroleum Proppant Processing Plant
