RCDF Oil-Cooled Self-unloading Iron Separator

RCDF oil-cooled self-unloading iron separator features forced oil circulation cooling technology, with the excitation coil immersed in sealed transformer oil and paired with corrugated cooling fins, ensuring a temperature rise of ≤50℃. It integrates a drive motor, drum, and discharge belt to automatically remove ferromagnetic impurities ranging from 0.1kg to 50kg. Suitable for belt widths of 1000–2400mm, it is ideal for continuous iron removal in bulk material processing.

Primarily designed for industrial environments characterized by high dust, high humidity, and corrosive conditions. Typical applications include large thermal power plants, coal handling ports, coal mines, as well as the building materials and chemical industries. It is especially suitable for large-scale conveyor systems with belt widths ≤2400mm and belt speeds ≤5.8m/s, perfectly meeting high-precision iron removal requirements.

CHAT

MESSAGE

ADVANTAGES

1. Efficient Heat Dissipation: Combines oil cooling with corrugated fins, ensuring a temperature rise of ≤50℃. The magnetic field remains stable between cold and hot states, allowing for long-term continuous operation.

2. Powerful Magnetic Field: Features a computer-optimized magnetic circuit and a core made of high-permeability cold-rolled silicon steel sheets. This ensures deep magnetic penetration and stable suction force.

3. Fully Sealed & Dust-proof: Utilizes epoxy resin curing and oil-immersion sealing technology. It is dust-proof, rain-proof, and corrosion-resistant, making it perfectly adaptable to harsh environments.

4. Automatic Iron Discharge: Equipped with a crown-shaped drum for automatic belt tracking. The belt runs continuously to discharge iron automatically, requiring no manual intervention.

5. Intelligent Control: Supports both manual and centralized control modes. It features power-on excitation and power-off demagnetization, and can be interlocked with conveyor systems.

6. Long Service Life: Built with a reliable structure and a designed service life of over 15 years, requiring minimal maintenance.

PRODUCT STRUCTURE

When the excitation coil is energized, it generates a powerful magnetic field that attracts ferromagnetic impurities from the material onto the surface of the iron-discharge belt. Meanwhile, transformer oil absorbs the heat from the coil and circulates back after cooling, keeping the coil temperature rise at or below 50℃ to ensure magnetic field stability. The discharge belt then transports the iron pieces to a non-magnetic zone, where they automatically drop into the iron collection box due to gravity. The drum-shaped roller automatically corrects deviations, preventing the belt from running off-track. The entire unit features a fully sealed oil-cooling system that operates without external air, effectively isolating it from dust contamination.

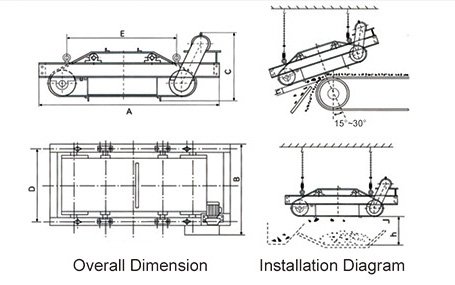

TECHNICAL PARAMETERS

Model	Belt Width (mm)	Rated Suspension Height (mm)	Magnetic Field Strength ≥ mT	Material Thickness ≤ mm	Excitation Power ≤ kW	Driving Power ≤ kW	Overall Dimension (mm)					Weight (kg)
Model	Belt Width (mm)	Rated Suspension Height (mm)	Magnetic Field Strength ≥ mT	Material Thickness ≤ mm	Excitation Power ≤ kW	Driving Power ≤ kW	A	B	C	D	E	Weight (kg)
RCDF-5	500	150	70	100	1.2	1.5	1730	1070	820	890	1000	1050
RCDF-6	600	175	70	120	1.8	1.5	2150	1270	950	1090	1150	1450
RCDF-6.5	650	200	70	150	2	2.2	2230	1300	980	1090	1150	1850
RCDF-8	800	250	70	200	3.3	2.2	2270	1450	1132	1290	1300	2250
RCDF-10	1000	300	70	250	4.6	3	3200	1750	1232	1540	1700	3150
RCDF-12	1200	350	70	300	6.7	4	3360	2030	1282	1740	1750	4250
RCDF-14	1400	400	70	350	8.7	4	3550	2240	1332	1950	2150	5980
RCDF-16	1600	450	70	400	13	5.5	3640	2440	1385	2150	2500	7550
RCDF-18	1800	500	70	450	18	5.5	3750	2720	1500	2400	2650	8156
