5 Million TPY Vanadium-titanium Magnetite Beneficiation Plant Project in Xinjiang

The raw ore of this project is vanadium-titanium magnetite, a complex associated ore containing magnetite, ilmenite and a small amount of weakly magnetic hematite. The target products are iron concentrate and titanium concentrate. It requires a staged separation process to separate iron-bearing minerals and titanium-bearing minerals step by step.

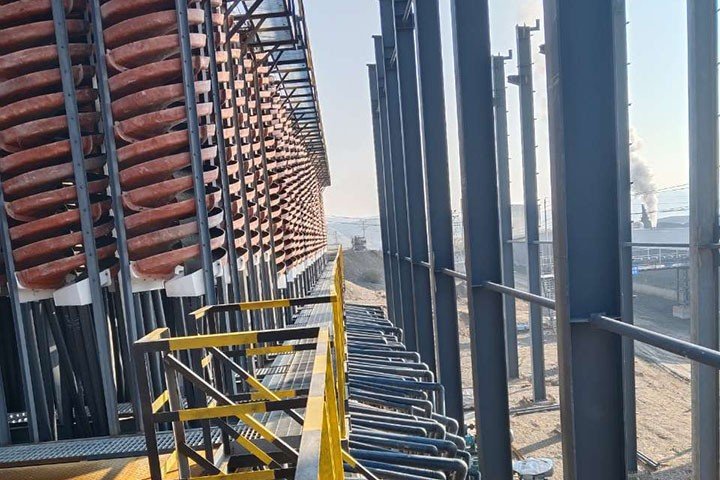

According to the mineral intergrowth relationship, grindability and impurity characteristics of vanadium-titanium magnetite, Guote’s technical team customized a reasonable combined beneficiation flowsheet, adopting low-intensity magnetic separation for iron recovery and high-gradient magnetic separation together with gravity separation for titanium enrichment.

GUOTE SOLUTION

  • 1

    Two-stage Closed-circuit Crushing Combining the ore hardness, feed size and mineral dissociation requirements, a two-stage closed crushing circuit is adopted. The raw ore in the bin is fed uniformly by vibrating feeder into jaw crusher for primary crushing down to 60–80 mm. Crushed material is sent to cone crusher for fine crushing to 10–20 mm. Vibrating screen is configured for closed-circuit classification; oversize coarse material returns back to cone crusher for re-crushing, while qualified undersize material is delivered by belt conveyor to wet ball milling section.

  • 2

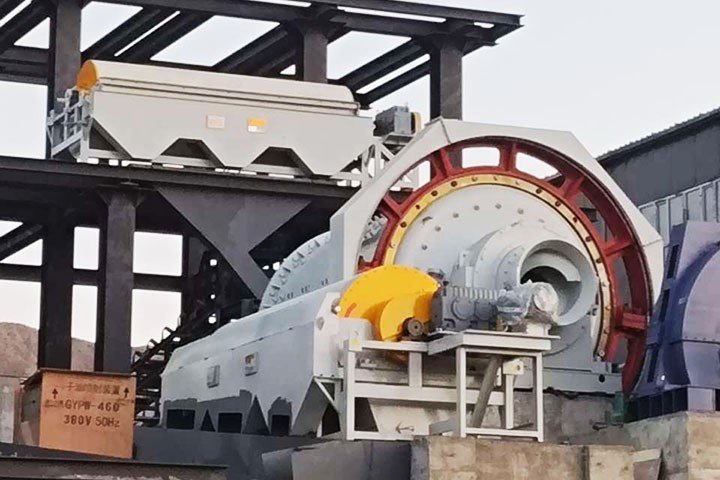

    Ball Milling and Hydrocyclone Classification Material enters the wet ball mill for grinding. The ground slurry is pumped to hydrocyclone for classification. Oversized coarse fractions are returned to the ball mill for regrinding, and fine qualified slurry below 60 mesh flows into the subsequent separation circuit, realizing continuous closed-circuit grinding.

  • 3

    Staged Magnetic Separation for Iron and Titanium Separation Qualified slurry is delivered by pipeline to the separation workshop. Firstly, low-intensity wet drum magnetic separator recovers magnetite to produce iron concentrate rough pulp. The tailings from low-intensity magnetic separation contain ilmenite and residual weakly magnetic minerals, which are fed into GTLH vertical ring high-gradient magnetic separator for secondary sorting. With background magnetic field 1.0 T and induced magnetic field up to 1.5 T, the vertical ring high-gradient magnetic separator equipped with pulsation system improves sorting selectivity. It captures weakly magnetic ilmenite and realizes preliminary enrichment of titanium minerals, effectively separating titanium-bearing components from gangue.

  • 4

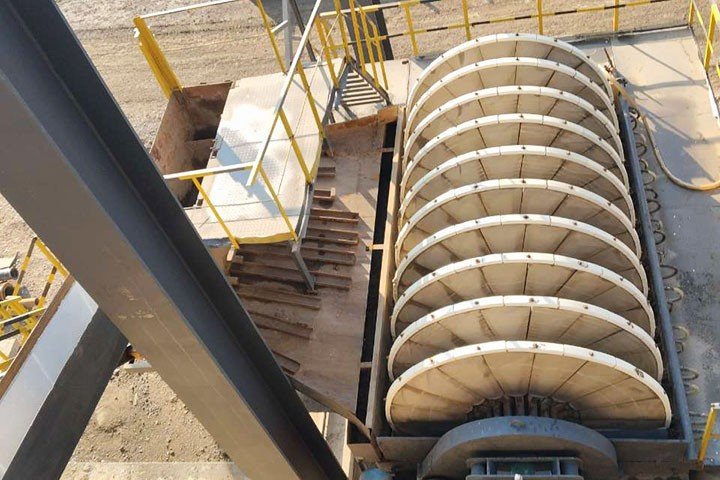

    Concentrate Thickening, Vacuum Filtration and Water Recycling Iron concentrate slurry and titanium concentrate slurry are separately sent to independent thickener tanks for settlement and concentration. Settled underflow concentrate is discharged and fed into vacuum filters for deep solid-liquid separation. Filtrate water is collected and recycled back to the whole beneficiation system. Filter cake of iron concentrate and titanium concentrate are transported separately by conveyor to different finished stock yards.

PROJECT RESULT

The plant adopts staged separation for vanadium-titanium magnetite, realizing co-production of iron concentrate and titanium concentrate.

Indicators of iron concentrate: grade 66.16%, yield 38.00%, iron recovery 61.75%.

Indicators of titanium concentrate: grade 62.95%, yield 13.00%, titanium recovery 11.05%.

The whole beneficiation line runs steadily with reliable equipment performance. The rational separation process maximizes the comprehensive utilization of vanadium-titanium magnetite resources and improves the overall economic benefit of the mine. Guote’s EPC beneficiation solution has been fully recognized by the customer.
