800TPD Ilmenite Processing Plant

The run-of-mine ore belongs to magmatic-type ilmenite. Its mineral assemblage is complex, with intergrowth of titanomagnetite and vanadium-titanium magnetite. The intimate interlocking of titanium-bearing minerals brings great challenges to beneficiation separation.

Faced with this difficult-to-separate ore, Mr. Wang, senior beneficiation engineer of Guote, carried out site investigation and ore sampling tests. Based on mineralogical test data, he designed a customized beneficiation flowsheet for this project.

GUOTE SOLUTION

  • 1

    Crushing and Screening Mechanical crushing and classification are adopted to reduce ore particle size and prepare well-sized feed for subsequent magnetic separation.

  • 2

    Beneficiation Stage Ⅰ The sized ore is delivered to medium-field magnetic separators for primary separation. This step recovers magnetite and titanomagnetite fractions as iron concentrate and removes interference of strongly magnetic minerals for the follow-up titanium separation.

  • 3

    Beneficiation Stage Ⅱ The tailings from primary magnetic separation go into high-field magnetic separators for secondary separation. High-grade ilmenite concentrate is recovered, while the remaining medium and low-grade gangue materials are discharged as final tailings.

PROJECT RESULT

This production line adopts Guote patented five-drum magnetic separator. The integrated equipment realizes the sequential separation of iron concentrate, ilmenite concentrate and gangue impurities in one unit, achieving efficient separation of target minerals.


The customized magnetic separation process delivers stable concentrate quality and good separation index, which has been highly recognized by the customer.

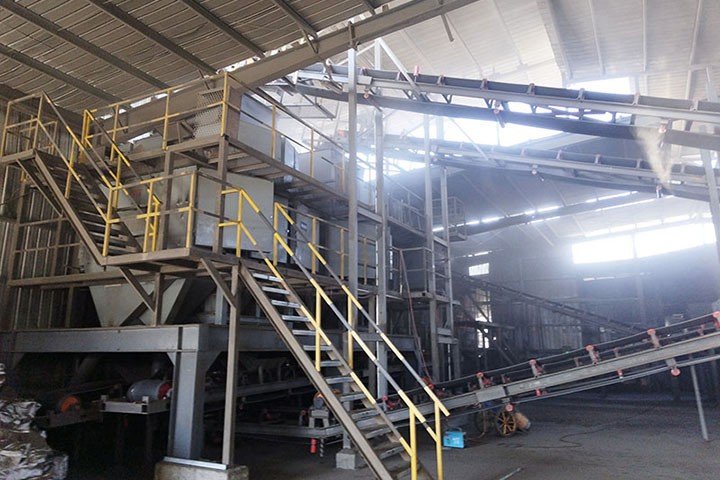

A 800TPD Ilmenite Processing Plant

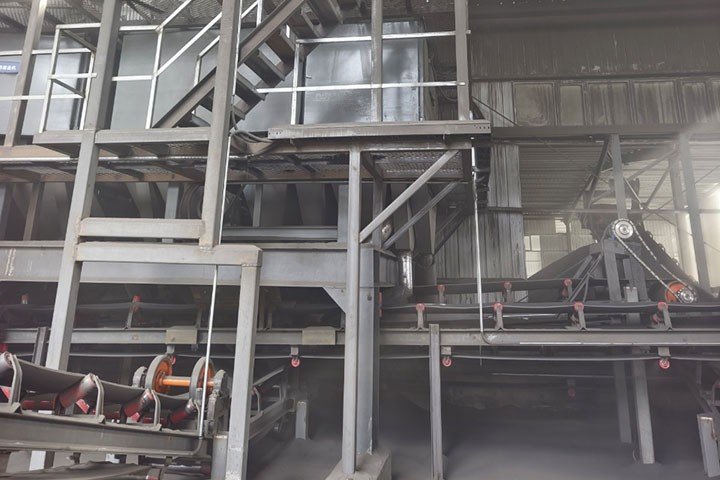

B 800TPD Ilmenite Processing Plant

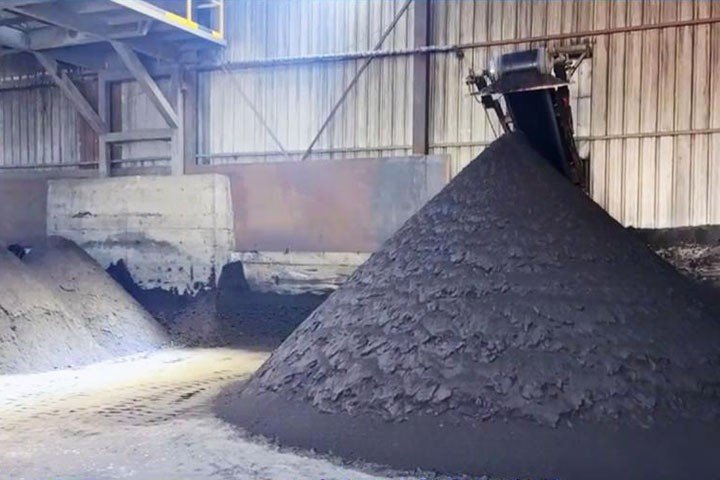

C 800TPD Ilmenite Processing Plant

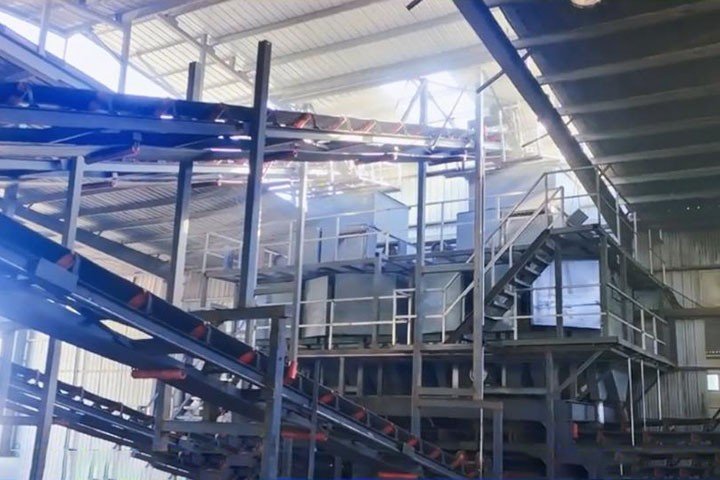

D 800TPD Ilmenite Processing Plant
