At the end of 2021, a Mexican client contacted Guote for this 1,000TPD iron ore concentrate upgrading project. The run-of-mine ore is dominated by hematite, with an initial iron grade of approximately 40%. The raw ore carries surface slime and fine clay impurities. As hematite belongs to weakly magnetic mineral, it cannot be effectively recovered by conventional low-intensity magnetic separation. The client required a reliable beneficiation solution to lift concentrate grade to around 50% and stabilize qualified concentrate output.

Guote completed ore beneficiation tests, process simulation and site condition assessment, then delivered a customized technical proposal and quotation. The client recognized the rationality of the flowsheet and the reliability of Guote equipment, and signed the project contract. Guote undertook process design, complete equipment supply, layout planning, installation guidance and commissioning. The production line was successfully commissioned in 2022.

GUOTE SOLUTION

  • 1

    Crushing and Grinding: The raw ore adopts staged crushing by jaw crusher and cone crusher, reducing particle size to below 2 cm. Crushed ore is stored in buffer silo and fed uniformly by vibrating feeder into the ball mill. The material is ground to target fineness of -60 mesh, which is suitable for subsequent gravity separation on spiral chutes, and can be adjusted flexibly according to ore characteristics to realize sufficient monomer liberation of hematite grains.

  • 2

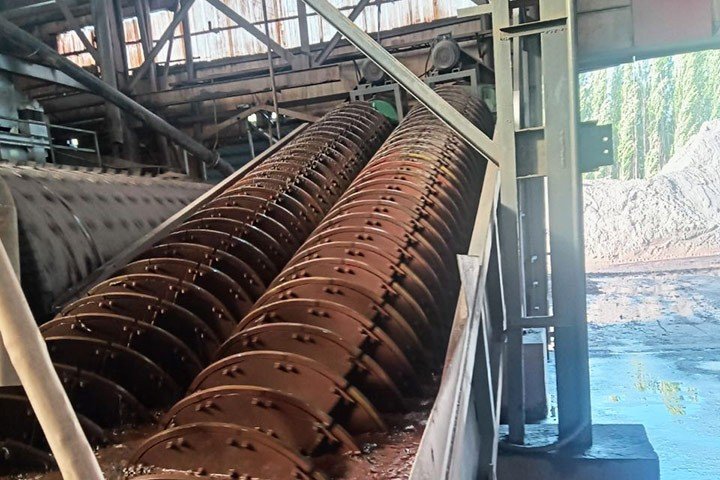

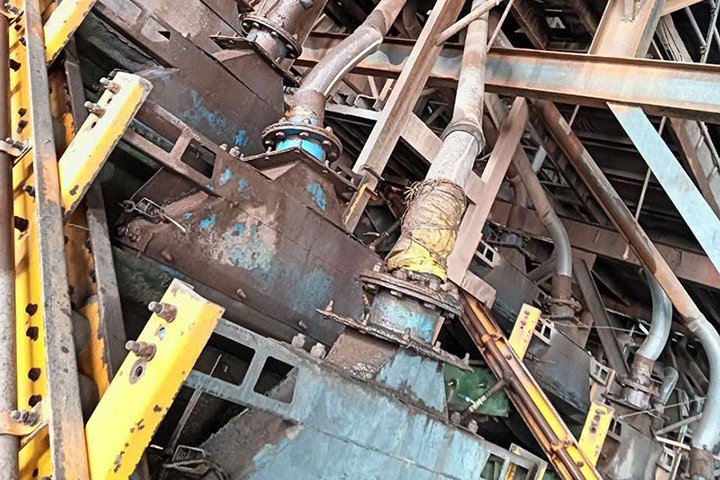

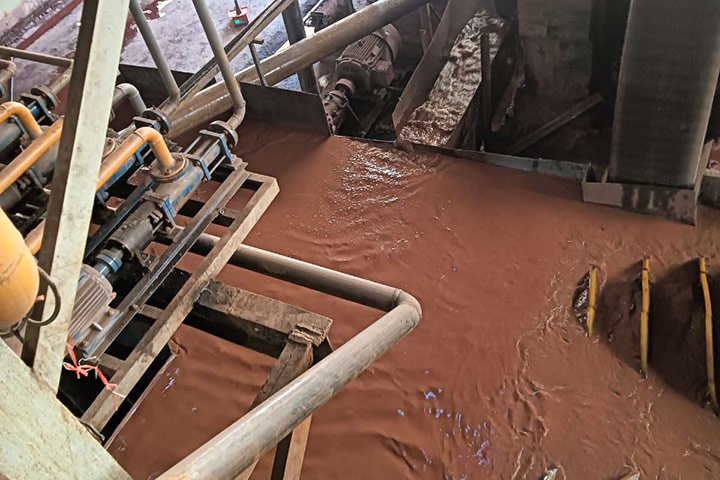

    Spiral Ore Washer Desliming and Hydrocyclone Classification: Discharged slurry from the ball mill is delivered to the spiral ore washer to wash and remove surface slime and clay contaminants. After desliming, the slurry passes through the drum screen to reject oversize debris. Qualified slurry is pumped into hydrocyclone cluster for closed-circuit classification. Coarse oversize above 60 mesh returns to the ball mill for regrinding; fine overflow slurry of qualified fineness flows to gravity separation. Closed-circuit grinding and classification avoids over-grinding and reduces slime generation.

  • 3

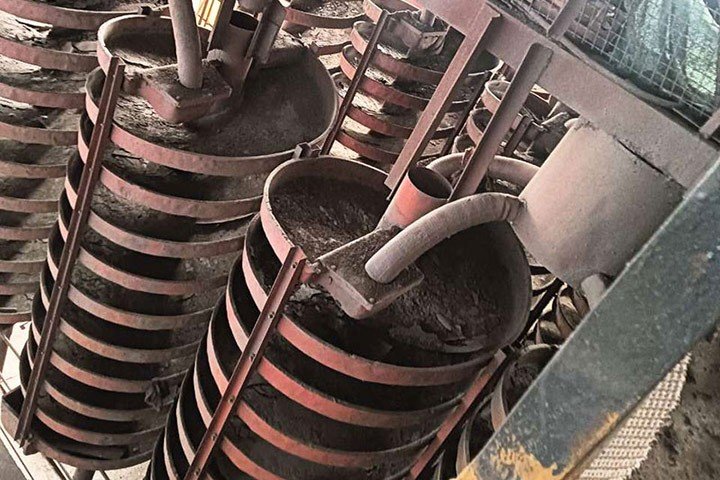

    Pre-concentration by Spiral Chute: The fine overflow slurry from hydrocyclone enters spiral chutes for gravity pre-concentration. Relying on density difference, light gangue minerals such as quartz and silicate are discarded in advance as tailings. This step reduces the feeding volume for subsequent magnetic separation units and lowers overall processing cost.

  • 4

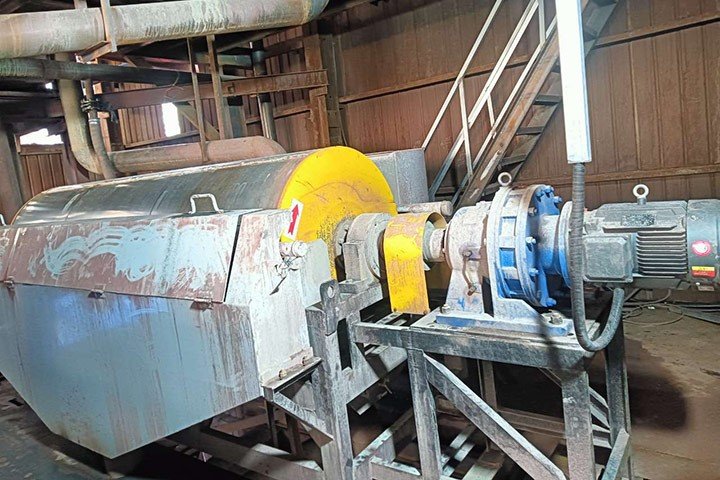

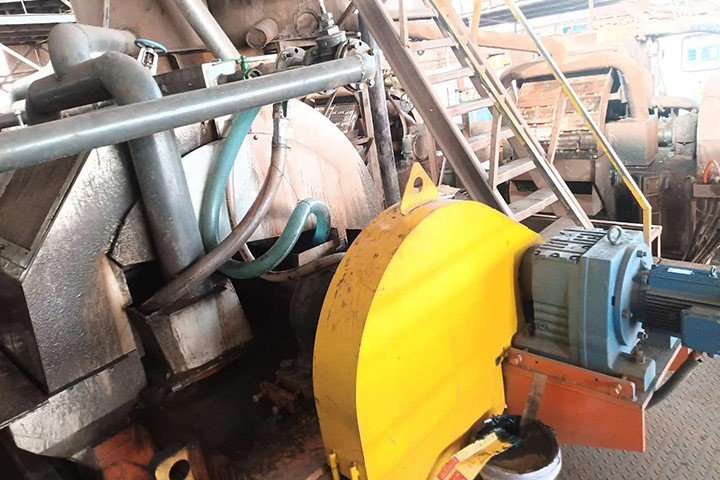

    Magnetic Separation: Pre-concentrated ore from spiral chutes firstly enters drum magnetic separator at 5000 GS to remove tramp iron and strongly magnetic impurities. The slurry then feeds into vertical ring high-gradient electromagnetic magnetic separator at 15000 GS. This high-intensity magnetic separator is suitable for weakly magnetic hematite, recovering fine-grained hematite and removing residual gangue, so as to raise the final iron concentrate grade.

  • 5

    Concentration and Dehydration: Concentrate slurry from magnetic separation is sent to the dosing thickener. Flocculant is added to accelerate solid settlement. High-density underflow concentrate is delivered to vacuum disc filter for deep dehydration, to keep the moisture content within the specification for storage and shipment.

  • 6

    Process Water Recycling: The whole line is equipped with high-efficiency thickener to collect all process wastewater. Clarified overflow water is recycled back to grinding, washing and separation sections, minimizing fresh water consumption and wastewater discharge.

  • 7

    Tailings Treatment: Tailings generated from spiral chutes and magnetic separation are pumped to the tailings thickener. Settled underflow tailings are fed into plate-and-frame filter press for filter pressing. Filter cake of dewatered tailings is transported to the stockpile for standardized stacking or comprehensive utilization. Filtrate returns to the process water system for recycling, realizing closed water circulation.

PROJECT RESULT

Since commissioning, the hematite beneficiation production line has maintained stable continuous operation. The concentrate grade consistently reaches the design target and satisfies the client’s sales requirements. After long-term operation and process optimization, the overall performance of the plant exceeds the expected benchmark by 20%. Stable beneficiation indicators, low energy consumption and dependable equipment quality bring high satisfaction to the customer.
