The client’s run-of-mine ore is a composite manganese deposit composed of manganese carbonate ore, finely disseminated manganese oxide ore and low-grade rhodochrosite.

This type of manganese ore poses notable beneficiation challenges, including fine mineral dissemination, intergrown mineral phases, high slime content and low feed grade. No single universal beneficiation flowsheet is applicable to all manganese ore types. Comprehensive process mineralogical testing must be carried out to clarify mineral occurrence, grain size and intergrowth features, so as to develop a technically reliable and economically viable custom beneficiation scheme.

In accordance with the raw ore properties, site layout constraints and investment budget of the client, senior beneficiation engineers at Guote developed a fully customized complete production flowsheet together with a detailed project budget.

GUOTE SOLUTION

  • 1

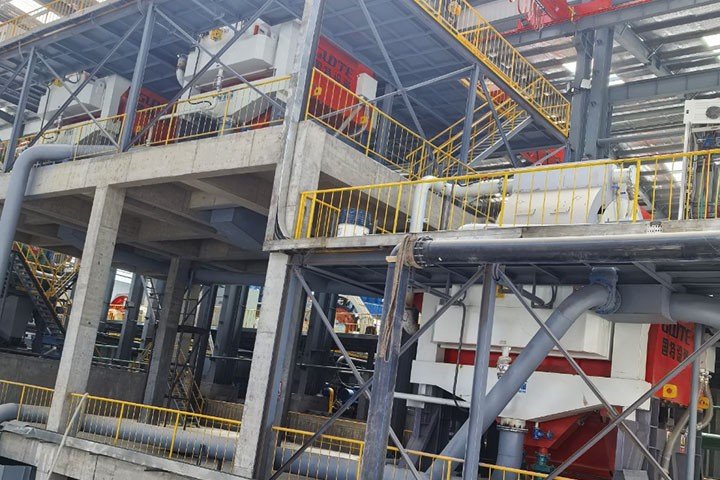

    Crushing and Screening: Bulk manganese ore is discharged from the feed silo by a vibrating feeder and delivered into the jaw crusher for primary coarse crushing. The coarsely crushed material is conveyed to a vibrating screen for classification. Oversized fractions are transported via belt conveyor to the single-cylinder hydraulic cone crusher for medium crushing, and subsequently fed into the multi-cylinder hydraulic cone crusher for fine crushing, preparing material with suitable particle size for the subsequent pre-concentration operation.

  • 2

    Dry Pre-Concentration: The finely crushed manganese ore is fed into the high-intensity permanent magnetic roll separator for primary dry pre-concentration. The pre-enriched rough concentrate is forwarded to the downstream grinding section, while the tailings stream is sent to a second high-intensity permanent magnetic roll separator for scavenging. Barren gangue tailings are discarded after scavenging, and the recovered manganese-bearing concentrate proceeds to the grinding stage.

  • 3

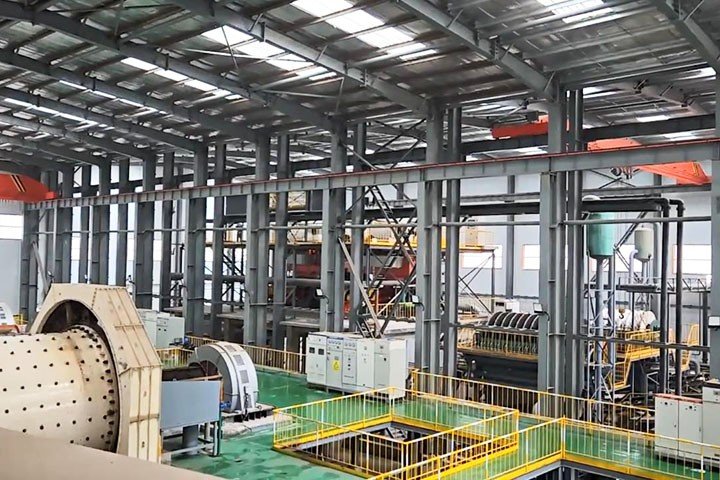

    Grinding and Classification: Manganese concentrate from dry pre-concentration is fed uniformly into the ball mill for grinding. The resulting ore slurry is pumped by slurry pump to the hydrocyclone for particle size classification. Fine overflow material with qualified liberation fineness flows onward to the wet magnetic separation section. Coarse underflow returns back to the ball mill for regrinding, forming a closed grinding circuit to guarantee sufficient dissociation of manganese minerals.

  • 4

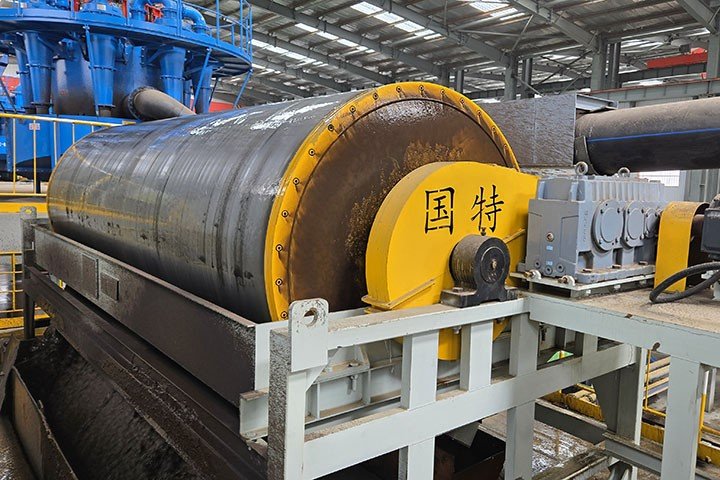

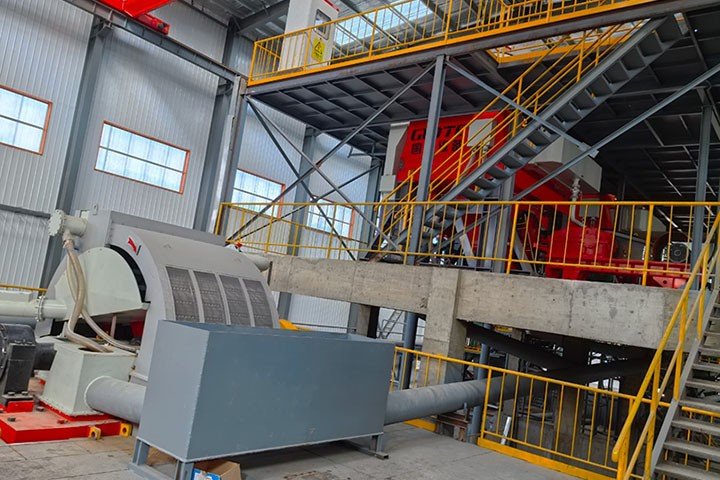

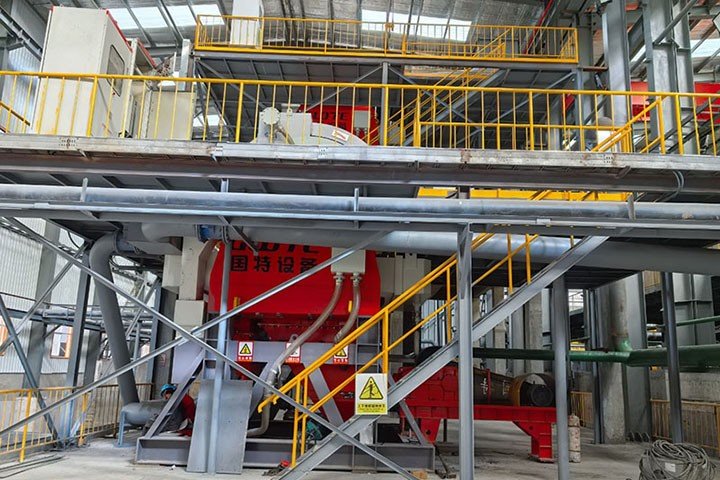

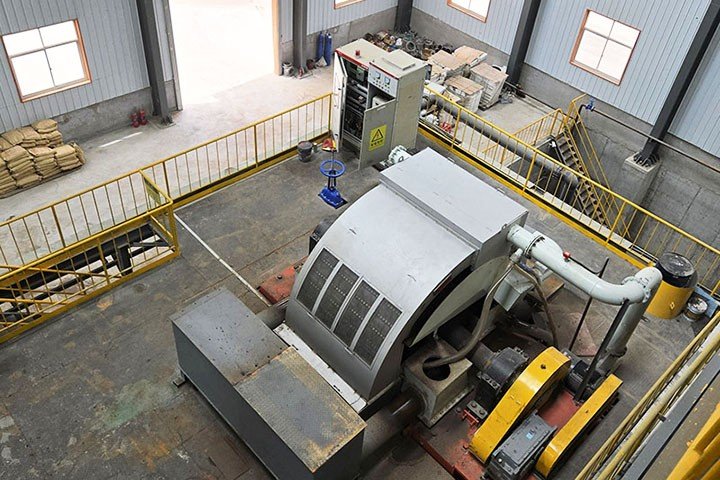

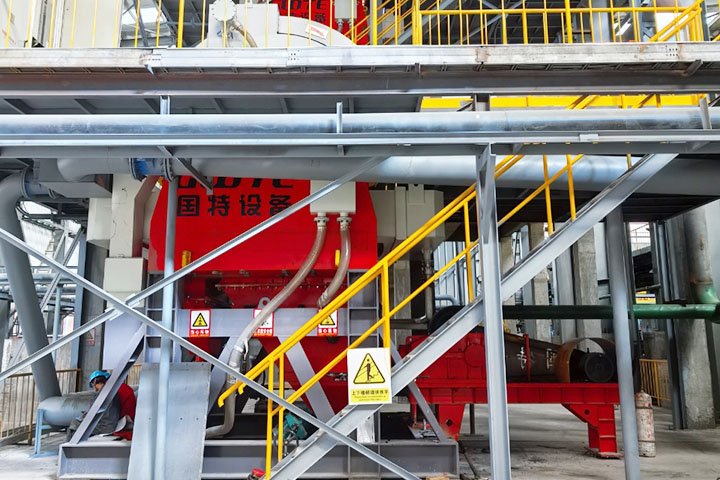

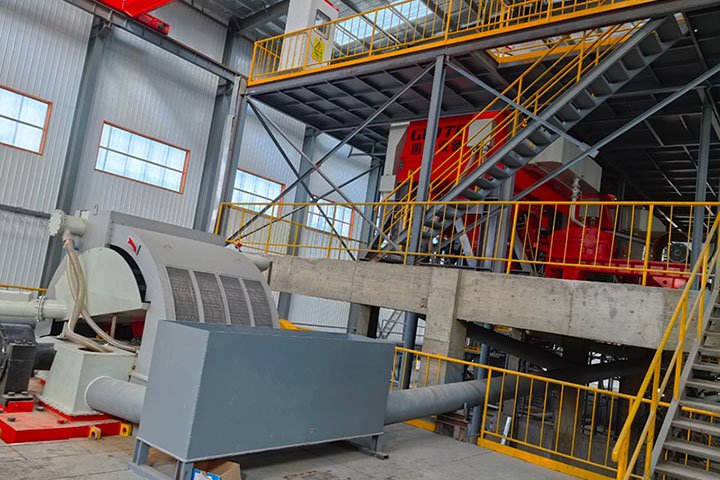

    Wet Magnetic Separation and Dewatering: Classified manganese pulp meeting target particle size is treated in the wet permanent magnetic drum magnetic separator to remove tramp mechanical iron generated in crushing and grinding circuits. The pulp then passes through a vibrating safety screen to trap oversize debris and protect downstream high-gradient separation equipment.

PROJECT RESULT

With the optimized beneficiation flowsheet provided by Guote, the manganese grade of the low-grade rhodochrosite feed has been lifted by 13 percentage points. This processing line features low operational cost, high separation efficiency and eco-friendly operation. The stable performance of the whole plant has won consistent recognition and high praise from the client.
