Ball Mill

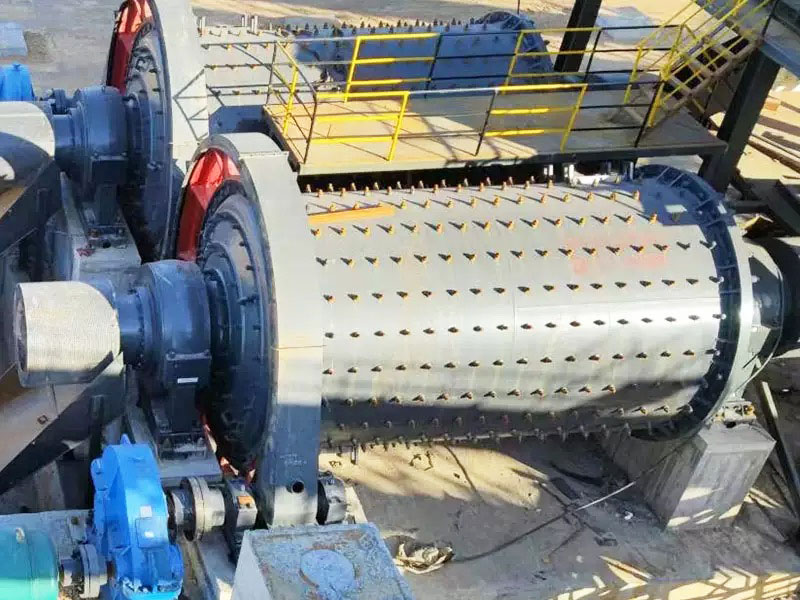

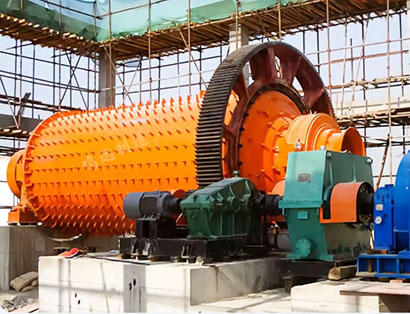

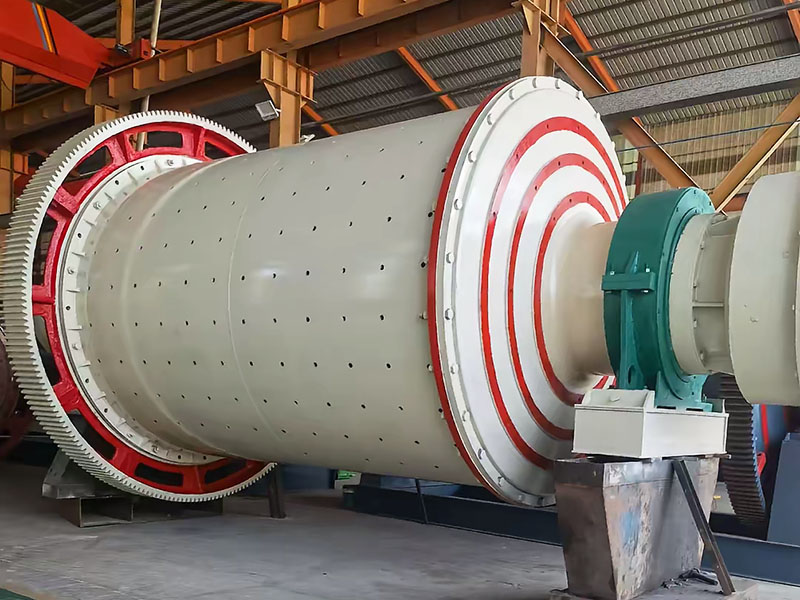

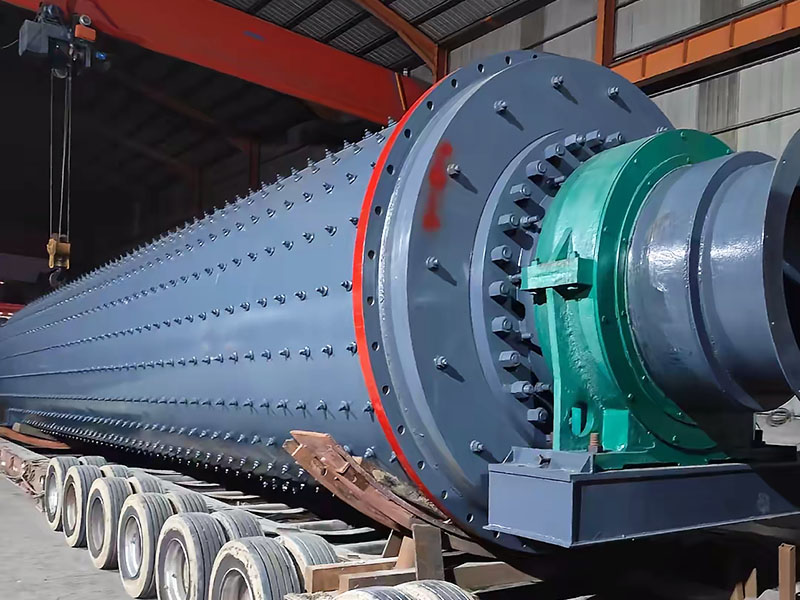

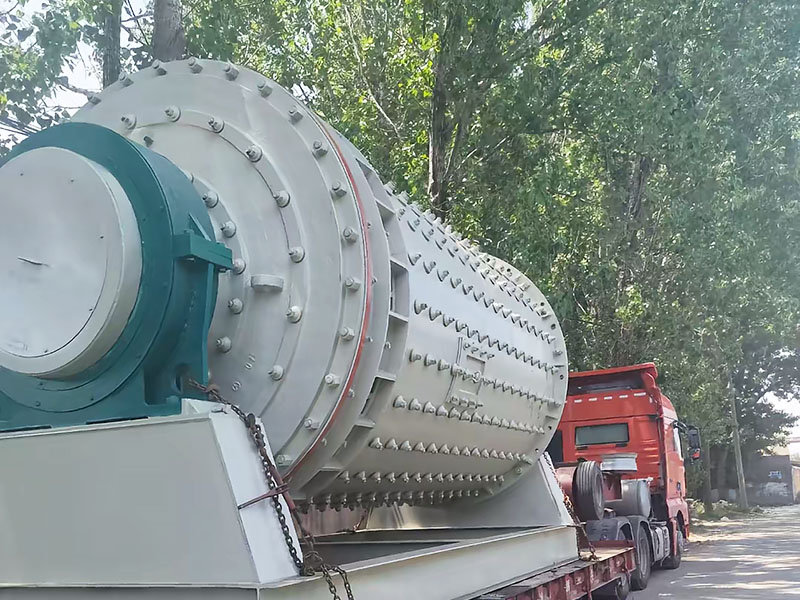

[Overview]:Ball mill mainly consist of a cylinder, feeding section, discharging section, transmission device (such as motor and reducer), bearing housing, and electrical control system. The inner wall of the cylinder is usually lined with wear-resistant material to protect the cylinder and improve grinding efficiency. Based on the operating method, they can be divided into dry ball mills and wet ball mills; based on the cylinder shape, they can be divided into short-cylinder ball mills, long-cylinder ball mills, and tube mills. Their diverse designs and specifications can adapt to different production capacities and fineness requirements, making them indispensable grinding equipment in modern industrial production.

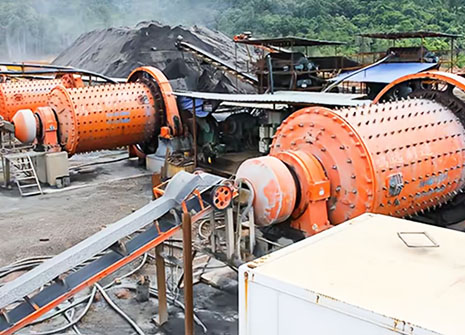

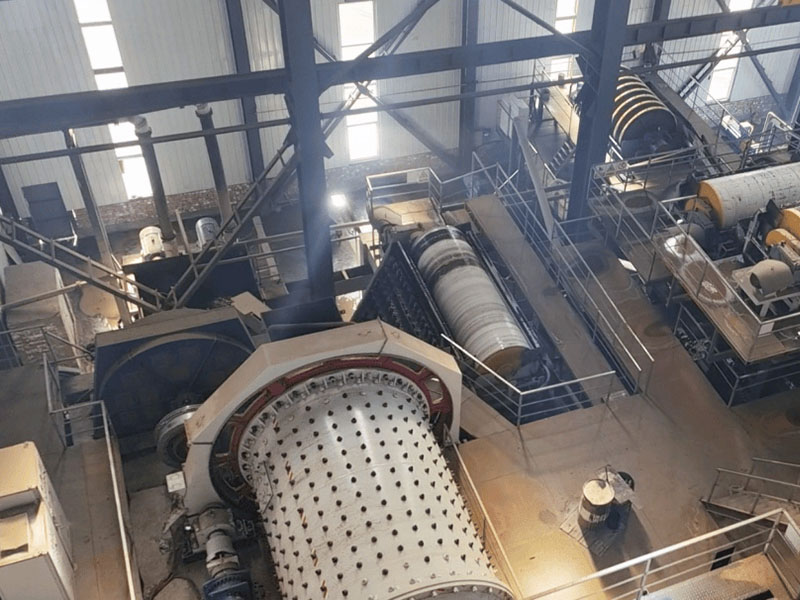

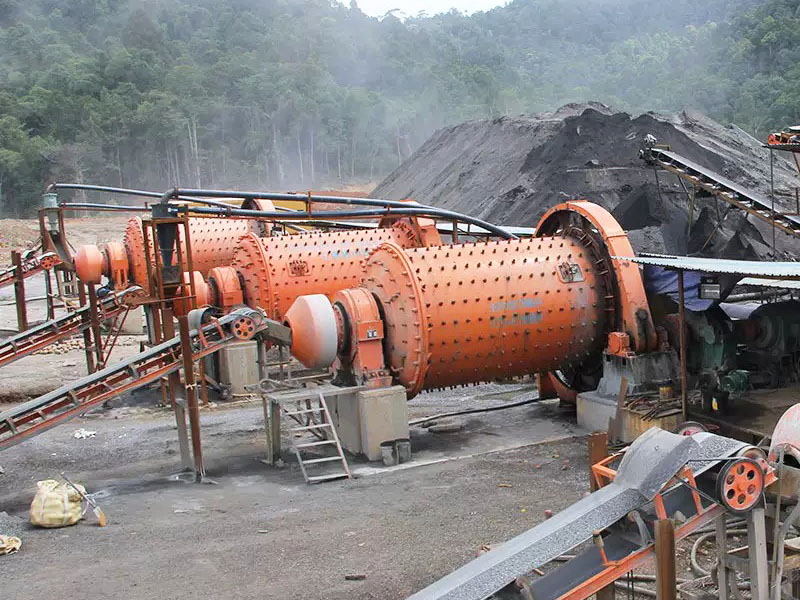

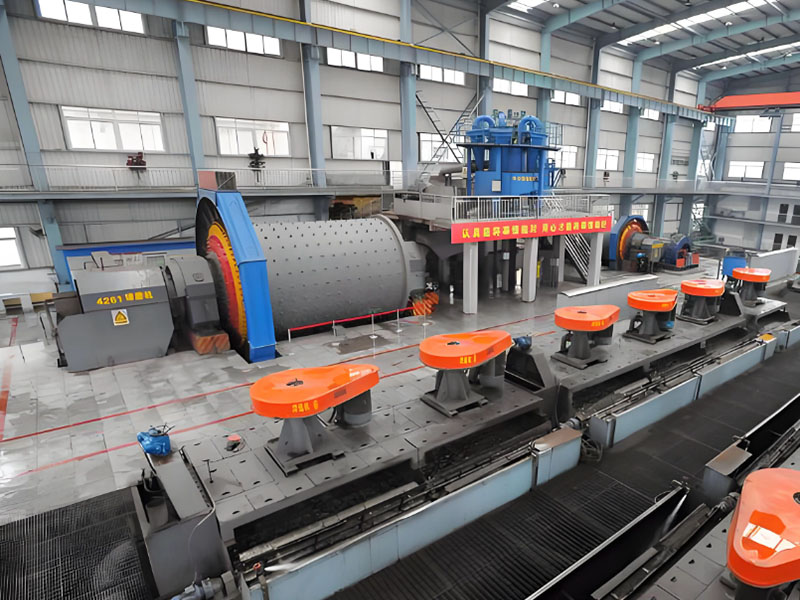

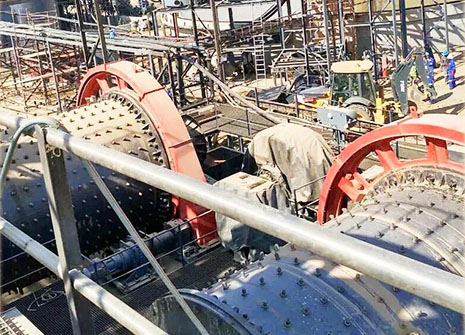

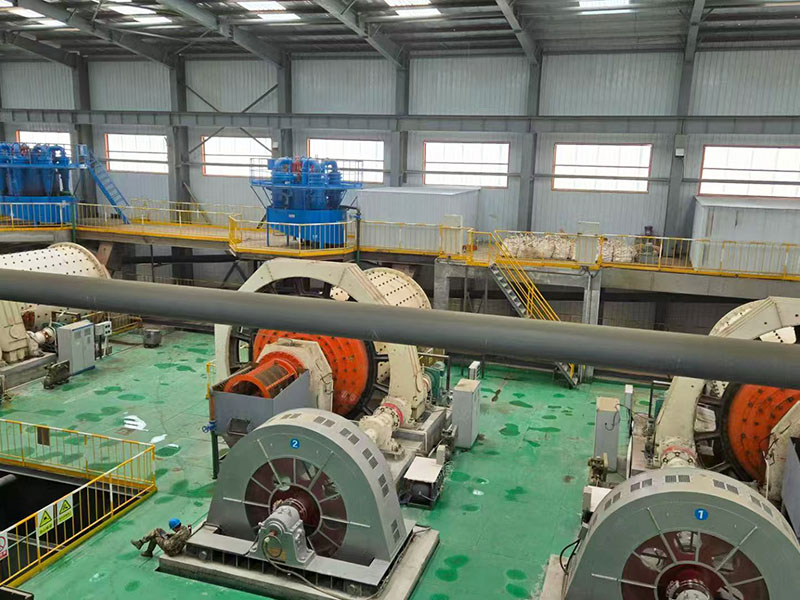

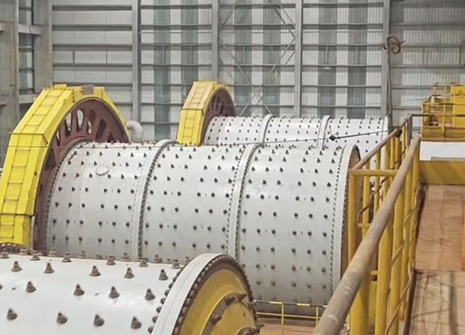

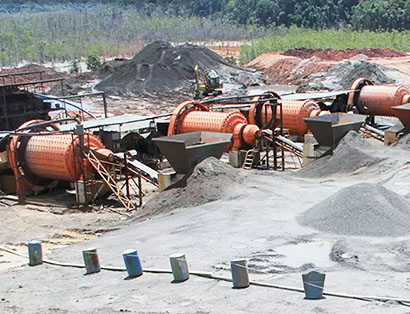

[Application Scenarios]:Ball mills have an extremely wide range of applications. In mineral processing plants, they are used to grind ores into fine powder for subsequent mineral sorting. In the cement industry, they are the core equipment for producing cement clinker and grinding raw materials. In the ceramics and glass industries, ball mills are used to grind raw materials into extremely fine body and glaze materials.
ADVANTAGES
1. High adaptability and wide application. They can perform both dry and wet grinding, adapting to different process requirements. Suitable for both coarse and ultrafine grinding, meeting various fineness requirements, and capable of intermittent or continuous operation.
2. High grinding ratio, easily adjustable fineness. The ball mill boasts a very high grinding ratio (the ratio of feed to output particle size), capable of grinding lumpy materials into fine powder in a single pass. The fineness of the final product can be easily and flexibly controlled by adjusting the size, shape, and ratio of the grinding media, as well as controlling parameters such as grinding time.
3. Reliable operation and easy maintenance. With a relatively simple structure and robust, durable key components, it can operate continuously for extended periods, ensuring production stability. Daily maintenance and operation are simple, facilitating automated production control and making it suitable for large-scale industrial production.
4. Good sealing, suitable for grinding in inert environments. The entire grinding system can be designed as a fully enclosed system, which is crucial for preventing dust pollution and protecting the environment.
5. Stable product quality and uniform fineness. Through the combined action of impact and grinding, the final product exhibits a relatively uniform particle size distribution and good consistency.
(Key Words:Energy Saving Ball Mill, Rod Mill, Grid Type Ball Mill, Overflow Type Ball Mill.)
![]() |
![]() |
![]() |
![]() |
![]() |
PRODUCT STRUCTURE

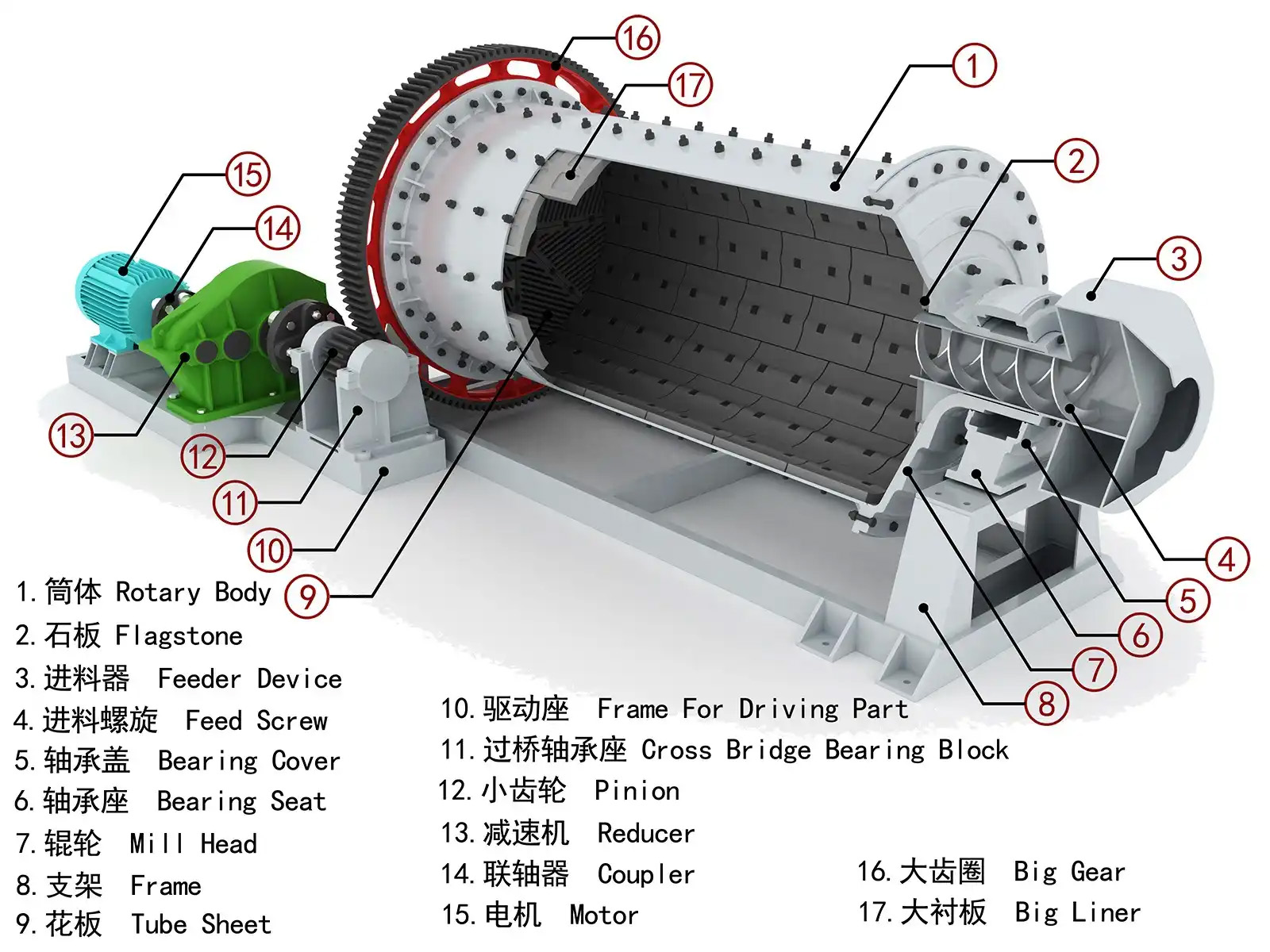

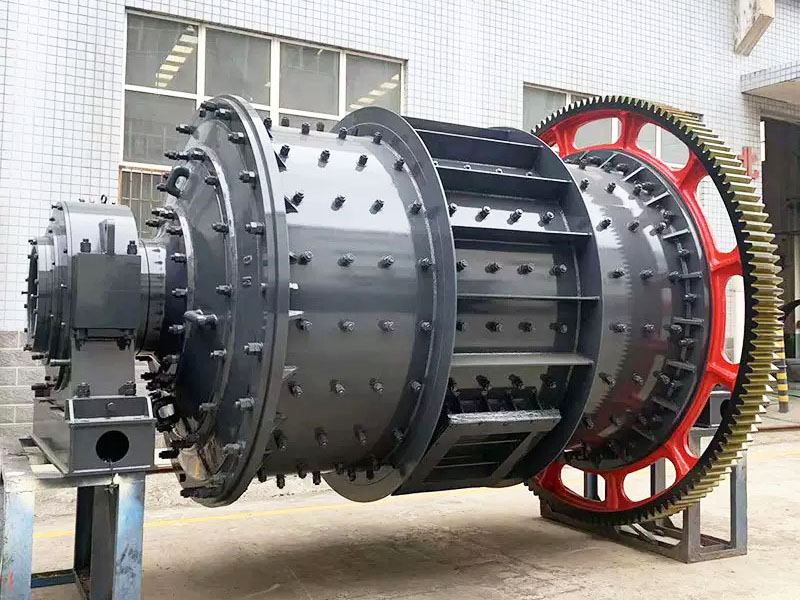

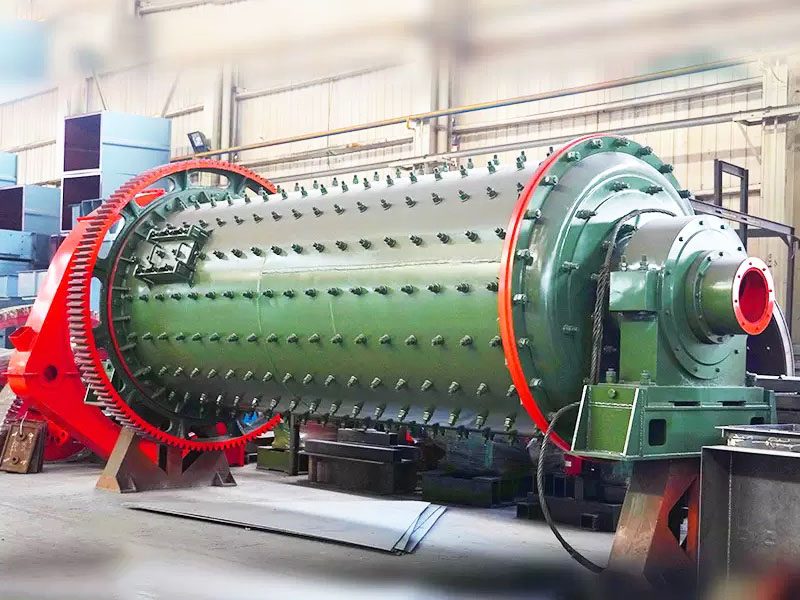

[Introduction]: Ball mill is an industrial equipment widely used in mining, building materials, and chemical industries. It is primarily used for crushing and grinding solid materials to achieve the desired particle size. Its basic structure is a horizontally placed, rotatable cylindrical body containing grinding media (such as steel balls, ceramic balls, etc.) and the material to be ground. Through the rotation of the cylinder, the impact and friction between the media and the material achieve fine crushing, making it a key piece of equipment in the material preparation process. Generally, the feed particle size of the ball mill is required to be less than 25mm, emphasizing crushing over grinding to save energy. The fineness and quantity of the output material are changed by adjusting the gradation of the steel balls. Our company’s high-efficiency, energy-saving ball mills all use rolling bearings instead of sliding bearings. Compared to sliding bearings, this results in 10-20% energy savings. Under the same power conditions, production capacity is increased by 10-20%. Depending on the material and discharge method, dry grate ball mills, wet grate ball mills, or wet overflow ball mills can be selected. According to the liner type, they are divided into the A series (high manganese steel liner, magnetic liner) standard type and the B series (rubber liner, high alumina liner, silica liner) energy-saving type; according to the transmission method, they are divided into edge-drive ball mills and center-drive ball mills. According to the number of chambers, they can be divided into single-chamber, two-chamber, and multi-chamber systems. According to the process operation, they can also be divided into open-circuit and closed-circuit (with grading equipment) systems.
[Working Principle]: The working principle of a ball mill is based on the action of centrifugal force and friction. When the cylinder is driven to rotate by the transmission device, the grinding media and materials inside are lifted to a certain height under the action of friction. When the lifting angle exceeds its natural angle of repose, the grinding media will fall or cascade down like a waterfall. During the falling process, the media exert a strong impact on the material, breaking it up; at the same time, during the rolling and sliding of the cylinder, grinding and friction will also occur between the media and the material, and between the material itself, thereby further grinding the material. Finally, the material is discharged through the unloading device, the product that reaches the required particle size is collected, while the coarse particles that do not meet the requirements continue to be ground inside the machine.
TECHNICAL PARAMETERS
| Energy Saving Ball Mill Technical Parameter Table | |||||||
| Model |
Drum Speed (r/min) |
Ball Capacity (t) |
Feed Size (mm) |
Discharge Size (mm) |
Output (t/h) |
Motor Power (kw) |
Total Weight (t) |
| Φ900×1800 | 36-38 | 1.5 | <20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.85 |
| Φ900×3000 | 36 | 2.7 | <20 | 0.075-0.89 | 1.1-3.5 | 30 | 6.98 |
| Φ1200×2400 | 36 | 3 | <25 | 0.075-0.6 | 1.5-4.8 | 30 | 13.6 |
| Φ1200×3000 | 36 | 3.5 | <25 | 0.074-0.4 | 1.6-5 | 37 | 14.3 |
| Φ1200×4500 | 32.4 | 5 | <25 | 0.074-0.4 | 1.6-5.8 | 55 | 15.6 |
| Φ1500×3000 | 29.7 | 7.5 | <25 | 0.074-0.4 | 2-5 | 75 | 19.5 |
| Φ1500×4500 | 27 | 11 | <25 | 0.074-0.4 | 3-6 | 110 | 22 |
| Φ1500×5700 | 28 | 12 | <25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Φ1830×3000 | 25.4 | 11 | <25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| Φ1830×4500 | 25.4 | 15 | <25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| Φ1830×6400 | 24.1 | 21 | <25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Φ1830×7000 | 24.1 | 23 | <25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Φ2100×3000 | 23.7 | 15 | <25 | 0.074-0.4 | 6.5-36 | 180 | 45 |
| Φ2100×4500 | 23.7 | 24 | <25 | 0.074-0.4 | 8-43 | 245 | 56 |
| Φ2100×7000 | 23.7 | 30 | <25 | 0.074-0.4 | 12-48 | 320 | 59.5 |
| Φ2200×4500 | 21.4 | 27 | <25 | 0.074-0.4 | 9-45 | 280 | 54.5 |
| Φ2200×6500 | 21.7 | 35 | <25 | 0.074-0.4 | 14-26 | 380 | 61 |
| Φ2200×7000 | 21.7 | 35 | <25 | 0.074-0.4 | 15-28 | 380 | 62.5 |
| Φ2200×7500 | 21.7 | 45 | <25 | 0.074-0.4 | 15-30 | 480 | 64.8 |
| Φ2400×3000 | 21 | 23 | <25 | 0.074-0.4 | 7-50 | 245 | 58 |
| Φ2400×4500 | 21 | 30 | <25 | 0.074-0.4 | 8.5-60 | 320 | 72 |
| Φ2700×4000 | 20.7 | 38 | <25 | 0.074-0.4 | 22-80 | 400 | 95 |
| Φ2700×4500 | 20.7 | 43 | <25 | 0.074-0.4 | 26-90 | 480 | 102 |
| Φ3200×4500 | 18 | 67 | <25 | 0.074-0.4 | According to process conditions | 800 | 149 |
| Φ3600×4500 | 17 | 90 | <25 | 0.074-0.4 | According to process conditions | 1250 | 169 |
| Φ3600×6000 | 17 | 110 | <25 | 0.074-0.4 | According to process conditions | 1400 | 198 |
| Φ3600×8500 | 18 | 150 | <25 | 0.074-0.4 | 45.8-256 | 1800 | 260 |
| Φ4000×5000 | 16.9 | 121 | <25 | 0.074-0.4 | 45-208 | 1500 | 230 |
| Φ4000×6000 | 16.9 | 146 | <25 | 0.074-0.4 | 65-248 | 1600 | 242 |
| Φ4000×6700 | 16.9 | 149 | <25 | 0.074-0.4 | 75-252 | 1800 | 249 |
| Φ4500×6400 | 15.6 | 172 | <25 | 0.074-0.4 | 84-306 | 2000 | 280 |
| Φ5030×6400 | 14.4 | 216 | <25 | 0.074-0.4 | 98-386 | 2500 | 320 |
| Φ5030×8300 | 14.4 | 266 | <25 | 0.074-0.4 | 118-500 | 3300 | 403 |
| Φ5500×8500 | 13.8 | 338 | <25 | 0.074-0.4 | 148-615 | 4500 | 525 |
| Ceramic Ball Mill Technical Parameter Table | |||
| Model | Feeding capacity (t) | Reference motor (kwv) | Liner material |
| Diameter (mm) | |||
| 600×700 | 0.05 | 2.2 | Chinaware, silicon, rubber or metal (therelated motor power varied as per the differentliner materials and grinding materials). |
| 800×600 | 0.075 | 3 | |
| 900×1200 | 0.2 | 5.5 | |
| 1300×1500 | 0.5 | 7.5 | |
| 1500×1800 | 1.2 | 11 | |
| 2800×2000 | 1.5 | 15 | |
| 2600×2800 | 5 | 37 | |
| 3000×3800 | 10 | 57.2 | |
| 3200×4600 | 15 | 75 | |
| Technical parameter of dry grid ball mill (MQG) | |||||
| Model | Cylinder | Effective volume(m³) | Ball loading (t) | Main motor(kw) | |
| Diameter (mm) | Length (mm) | ||||
| MQG-1557 | 1500 | 5700 | 8.5 | 12 | 130 |
| MQG-1564 | 1500 | 6400 | 9.6 | 13 | 155 |
| MQG-1864 | 1830 | 6400 | 15 | 20 | 210 |
| MQG-1870 | 1830 | 7000 | 16 | 22 | 245 |
| MQG-1880 | 1830 | 8000 | 18.8 | 26 | 280 |
| MQG-2170 | 2100 | 7000 | 22 | 30 | 320 |
| MQG-2175 | 2100 | 7500 | 23.5 | 33 | 355 |
| MQG-2265 | 2200 | 6500 | 22 | 35 | 380 |
| MQG-2270 | 2200 | 7000 | 23.8 | 38 | 380 |
| MQG-2275 | 2200 | 7500 | 25.5 | 42 | 450 |
| MQG-2470 | 2400 | 7000 | 28 | 52 | 570 |
| MQG-2480 | 2400 | 8000 | 32 | 60 | 630 |
| MQG-2750 | 2700 | 5000 | 25.8 | 54 | 630 |
| MQG-2760 | 2700 | 6000 | 31 | 65 | 710 |
| Technical parameters of wet grate ball mill (MQS) | |||||
| Model | Cylinder | Effective volume(m³) | Ball loading (t) | Main motor(kw) | |
| Diameter (mm) | Length (mm) | ||||
| MQS-1530 | 1500 | 3000 | 4.5 | 9 | 110 |
| MQS-1545 | 1500 | 4500 | 6.7 | 14 | 155 |
| MQS-1830 | 1830 | 3000 | 6.7 | 14 | 155 |
| MQS-1845 | 1830 | 4500 | 10.5 | 20 | 210 |
| MQS-2130 | 2100 | 3000 | 8.8 | 18 | 210 |
| MQS-2136 | 2100 | 3600 | 11 | 22.5 | 245 |
| MQS-2145 | 2100 | 4500 | 13.8 | 28 | 280 |
| MQS-2230 | 2200 | 3000 | 10 | 20 | 210 |
| MQS-2245 | 2200 | 4500 | 15.2 | 30.5 | 320 |
| MQS-2430 | 2400 | 3000 | 12 | 25 | 280 |
| MOS-2436 | 2400 | 3600 | 14 | 29 | 320 |
| MQS-2445 | 2400 | 4500 | 17.8 | 37 | 380 |
| MQS-2470 | 2400 | 7000 | 28 | 58 | 480 |
| MQS-2736 | 2700 | 3600 | 18 | 38 | 400 |
| MQS-2740 | 2700 | 4000 | 20.6 | 43 | 450 |
| MQS-2745 | 2700 | 4500 | 23.2 | 48 | 480 |
| MQS-2750 | 2700 | 5000 | 25.8 | 54 | 560-630 |
| MQS-2760 | 2700 | 6000 | 31 | 65 | 630-710 |
| MQS-3040 | 3000 | 4000 | 25.7 | 54 | 560-630 |
| MQS-3064 | 3000 | 6400 | 40.2 | 84 | 1000 |
| MOS-3230 | 3200 | 3000 | 21.8 | 46 | 500 |
| MQS-3236 | 3200 | 3600 | 26.2 | 56 | 630 |
| MQS-3245 | 3200 | 4500 | 32 | 65 | 800 |
| MQS-3254 | 3200 | 5400 | 38 | 80 | 1000 |
| MQS-3640 | 3600 | 4000 | 36 | 75 | 1000 |
| MQS-3645 | 3600 | 4500 | 40.8 | 88 | 1250 |
| MQS-3650 | 3600 | 5000 | 46 | 96 | 1400 |
| MQS-3660 | 3600 | 6000 | 54 | 117 | 1400-1600 |
| MQS-4050 | 4000 | 5000 | 58 | 121 | 1500 |
| MQS-4060 | 4000 | 6000 | 70 | 146 | 1800 |
| MQS-4560 | 4500 | 6000 | 87 | 182 | 2300 |
| Technical parameters of Overflow ball mill (MQY) | |||||
| Model | Cylinder | Effective volume(m³) | Ball loading (t) | Main motor (kw) | |
| Diameter (mm) | Length (mm) | ||||
| MQY-1530 | 1500 | 3000 | 4.5 | 8 | 90 |
| MQY-1545 | 1500 | 4500 | 6.7 | 12 | 132 |
| MQY-1830 | 1830 | 3000 | 6.7 | 12 | 130 |
| MQY-1845 | 1830 | 4500 | 10.5 | 19 | 180 |
| MQY-2130 | 2100 | 3000 | 9.2 | 16 | 210 |
| MQY-2136 | 2100 | 3600 | 11 | 20 | 210 |
| MQY-2145 | 2100 | 4500 | 13.8 | 25 | 280 |
| MQY-2230 | 2200 | 3000 | 10 | 18.5 | 210 |
| MQY-2245 | 2200 | 4500 | 15.2 | 28 | 280 |
| MQY-2430 | 2400 | 3000 | 12 | 22 | 245 |
| MQY-2436 | 2400 | 3600 | 14 | 26 | 280 |
| MQY-2445 | 2400 | 4500 | 17.8 | 30 | 320 |
| MQY-2460 | 2400 | 6000 | 24 | 44 | 480 |
| MQY-2736 | 2700 | 3600 | 18 | 33 | 400 |
| MQY-2740 | 2700 | 4000 | 20.6 | 38 | 400 |
| MQY-2745 | 2700 | 4500 | 23.2 | 43 | 480 |
| MQY-2750 | 2700 | 5000 | 25.8 | 48 | 500 |
| MQY-2760 | 2700 | 6000 | 31 | 57 | 630 |
| MQY-3040 | 3000 | 4000 | 25.7 | 47 | 500 |
| MQY-3064 | 3000 | 6400 | 40.2 | 74 | 800 |
| MQY-3245 | 3200 | 4500 | 32 | 59 | 630 |
| MQY-3254 | 3200 | 5400 | 38 | 73 | 800 |
| MQY-3270 | 3200 | 7000 | 50.6 | 93 | 1250 |
| MQY-3645 | 3600 | 4500 | 40.8 | 75 | 1000 |
| MQY-3650 | 3600 | 5000 | 46 | 86 | 1250 |
| MQY-3660 | 3600 | 6000 | 54 | 102 | 1250 |
| MQY-3685 | 3600 | 8500 | 79 | 131 | 1800 |
| MQY-4060 | 4000 | 6000 | 70 | 126 | 1500 |
| MQY-4067 | 4000 | 6700 | 78 | 136 | 1600 |
| MQY-4361 | 4270 | 6100 | 80 | 144 | 1850 |
| MQY-4564 | 4500 | 6400 | 95 | 172 | 2000 |
| MQY-5064 | 5030 | 6400 | 120 | 216 | 2600 |
| MQY-5083 | 5030 | 8300 | 152 | 266 | 3300 |
| MQY-5585 | 5500 | 8500 | 157 | 338 | 4500 |
