Belarus 500t/d Oil Fracturing Sand Processing Plant

GUOTE SOLUTION

• 1

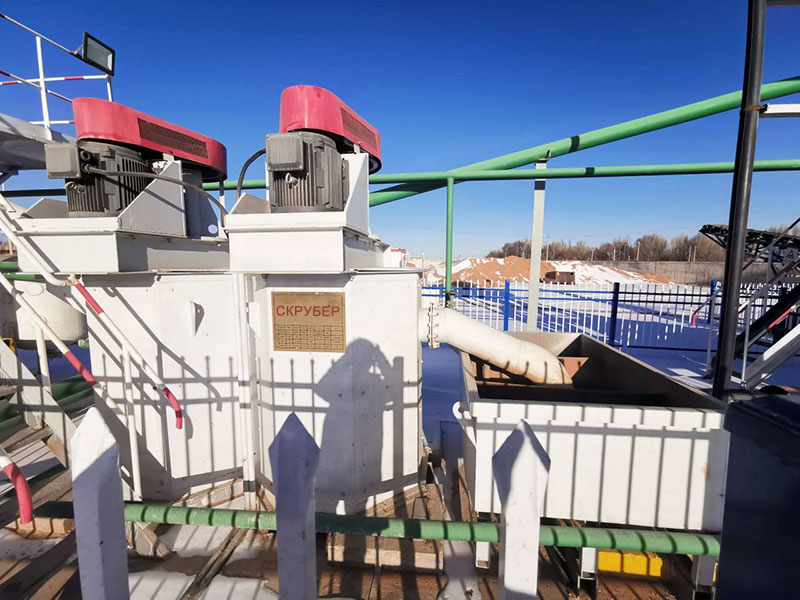

  Scrubbing and Desludging: The material is fed via a belt feeder (with a weighing device) to a vibrating screen for screening. The screened material then enters a spiral ore washer for initial washing and desludging. After pre-washing, the material enters a scrubbing machine for secondary scrubbing. The scrubbed slurry is pumped into a desludging hopper on the grading tower, where it separates sand, mud, and impurities, reducing the mud content of the raw ore and balancing the slurry.

• 2

  Screening and Classification: The desludged material enters a hydraulic classifier, which separates fine sand below 140 mesh (0.1 mm). This reduces subsequent drying and screening costs and increases the yield of subsequent processes.

• 3

  Magnetic Separation and Dewatering: The material exiting the hydraulic classifier is of acceptable particle size. This acceptable particle size enters the magnetic separation stage. A plate magnetic separator with a magnetic field strength of 10,000-12,000 GS completely removes all iron impurities and some weakly magnetic iron. Finally, the acceptable material is dewatered by a dewatering screen and stored in a stockpile, awaiting drying.
